Notes On INTERMITTENTS

If intermittent code B113 is being set, manipulate related wiring while observing BCM data code BD25. If failure is induced, reading will jump from its normal value to a reading outside range of -34°C to 96°C.

If value displayed by BD25 is not reasonably close to actual temperature of air at sensor, check for poor terminal connections or replace sensor.

Fig 1: Code B113 Schematic, In-Car Temperature Sensor Circuit

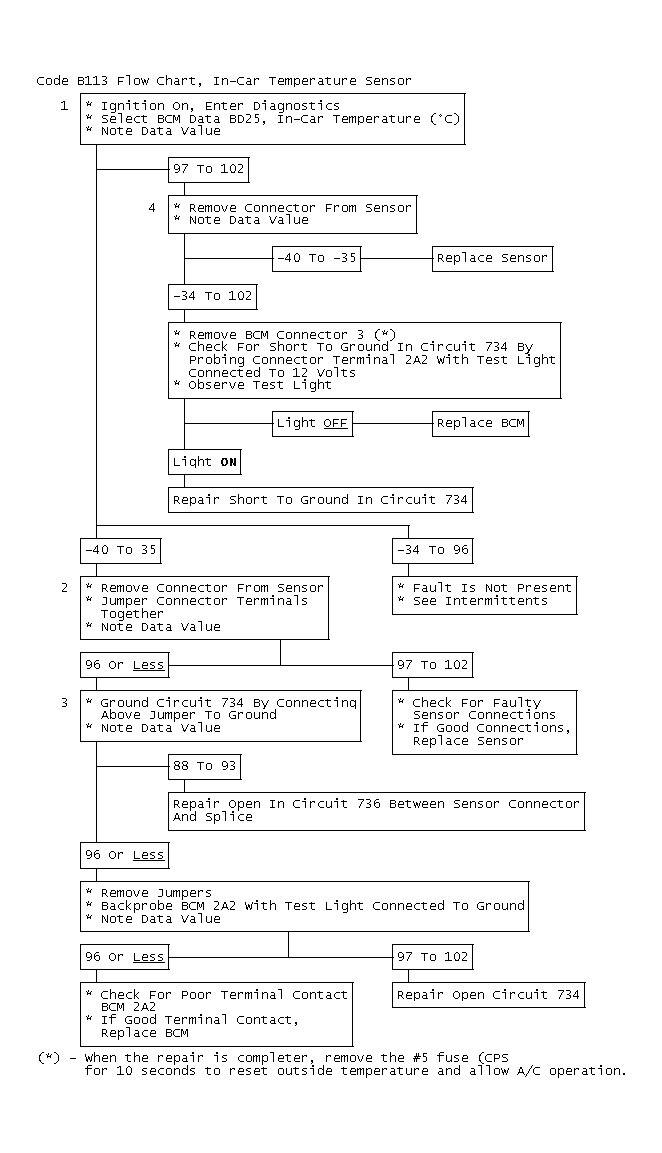

Fig 2: Code B113 Flow Chart, In-Car Temperature Sensor Circuit

Fig 3: Code B113 Flow Chart, In-Car Temperature Sensor Circuit
