Notes On Intermittents

If code EO63 is setting intermittently make sure owner is not overrunning set speed in excess of 20 MPH. Check vacuum source and brake release vacuum lines for proper connections and/or leaks.

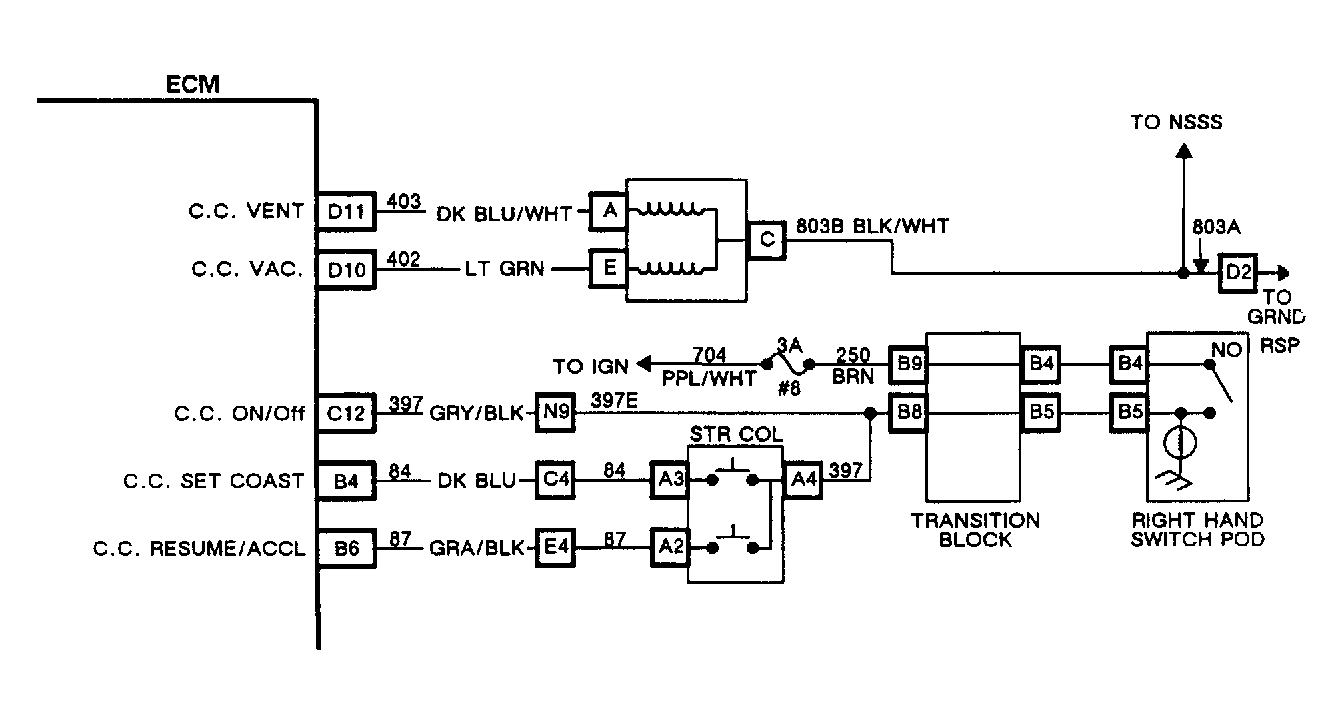

Fig 1: Schematic, Code EO63, Vehicle Speed/Set Speed Difference To High

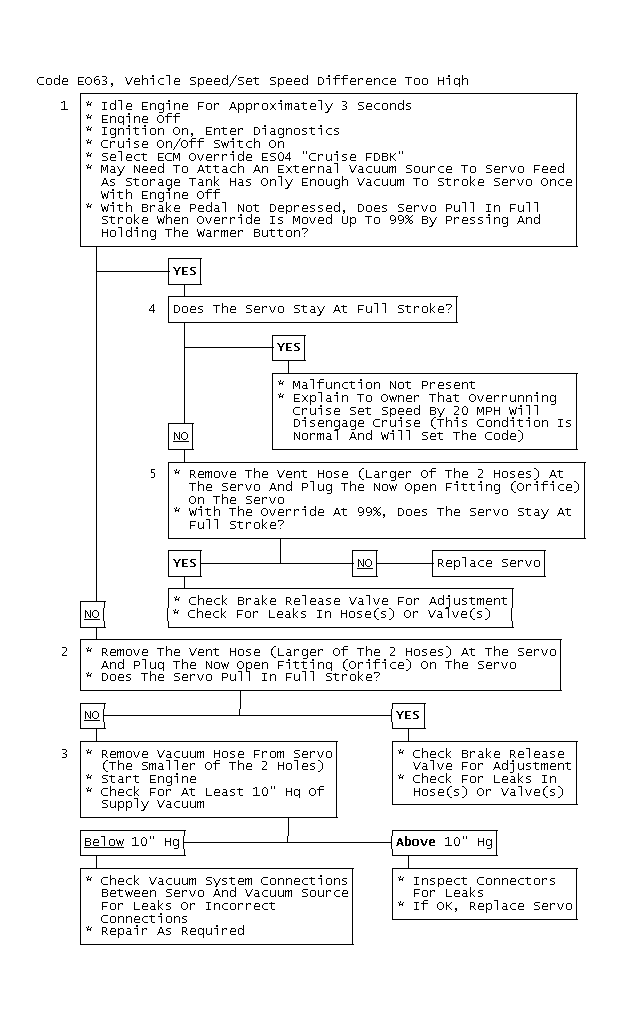

Fig 2: Flow Chart, Code EO63, Vehicle Speed/Set Speed Difference To High

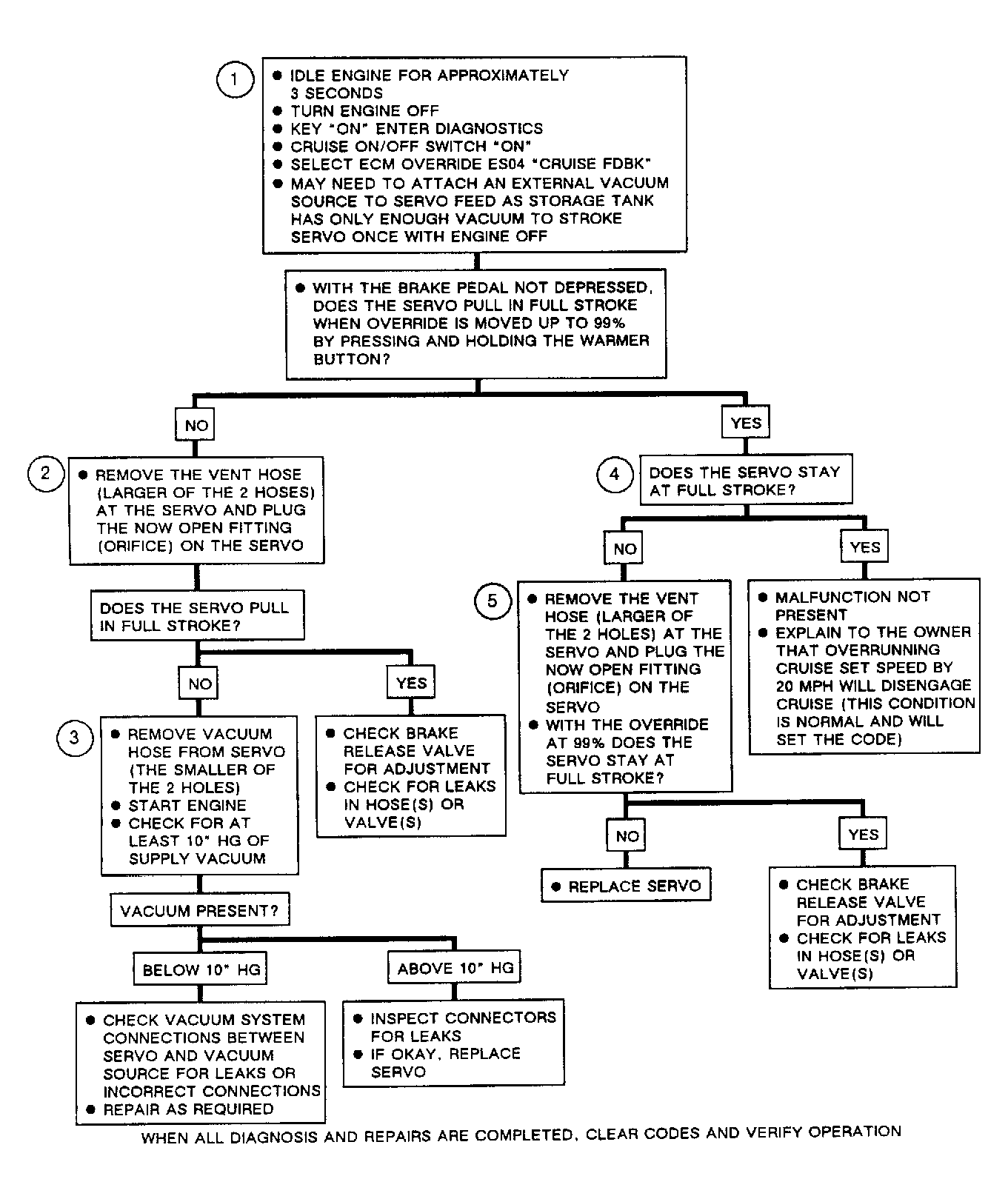

Fig 3: Flow Chart, Code EO63, Vehicle Speed/Set Speed Difference To High
