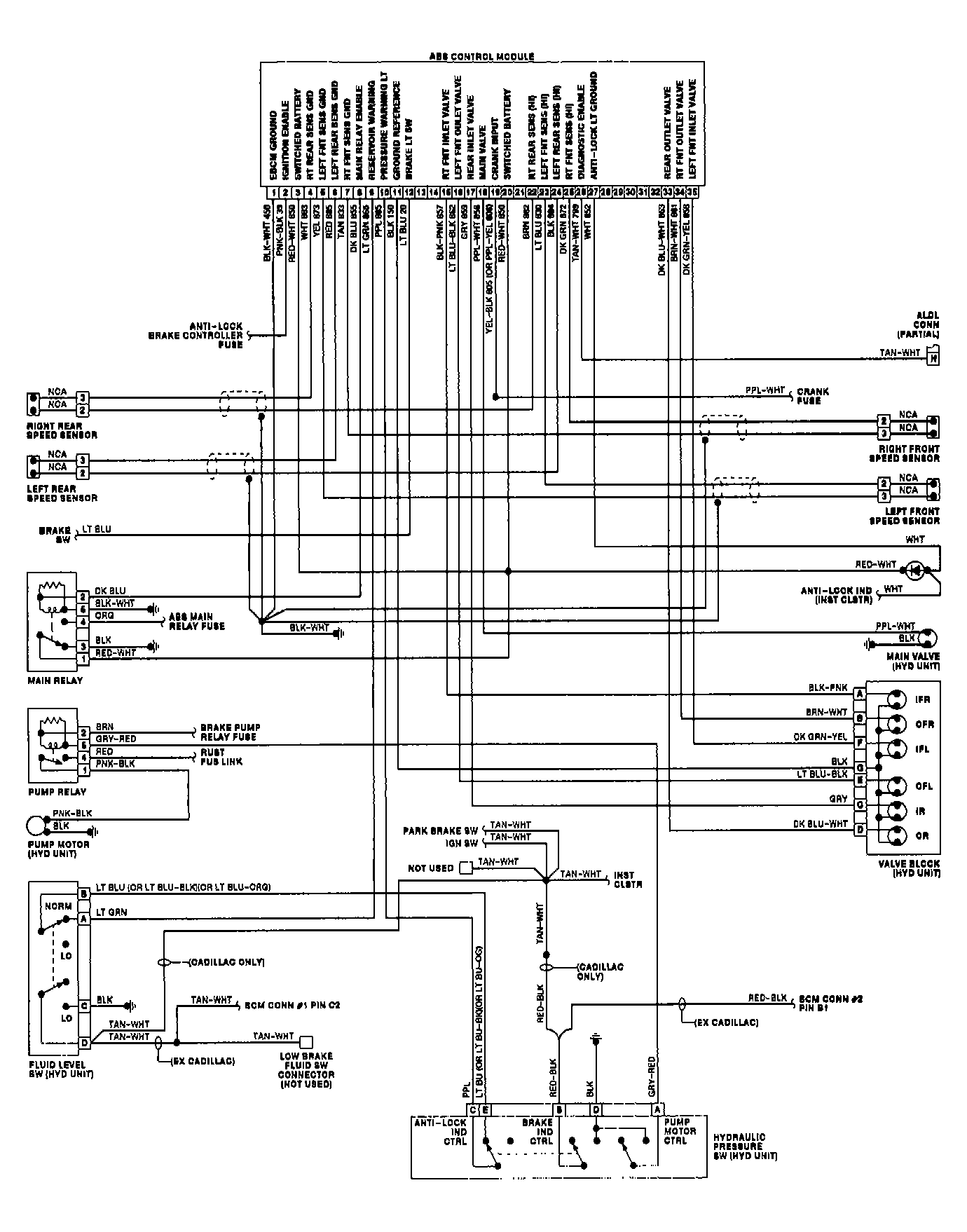

Section 12 (Anti-Lock Brake System): Diagrams

WARNING: This page is about a different car, the 1990 Cadillac Seville, 1990 Cadillac Eldorado, 1989 Cadillac Seville, and 1989 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
