Notes On Intermittents

If intermittent code B113 is being set, manipulate related wiring while observing BCM data code BD25. If failure is induced, reading will jump from its normal value to a reading outside the range of -34°C to 96°C.

If value displayed by BD25 is not reasonably close to actual temperature of air at sensor, check for poor terminal connections or replace sensor.

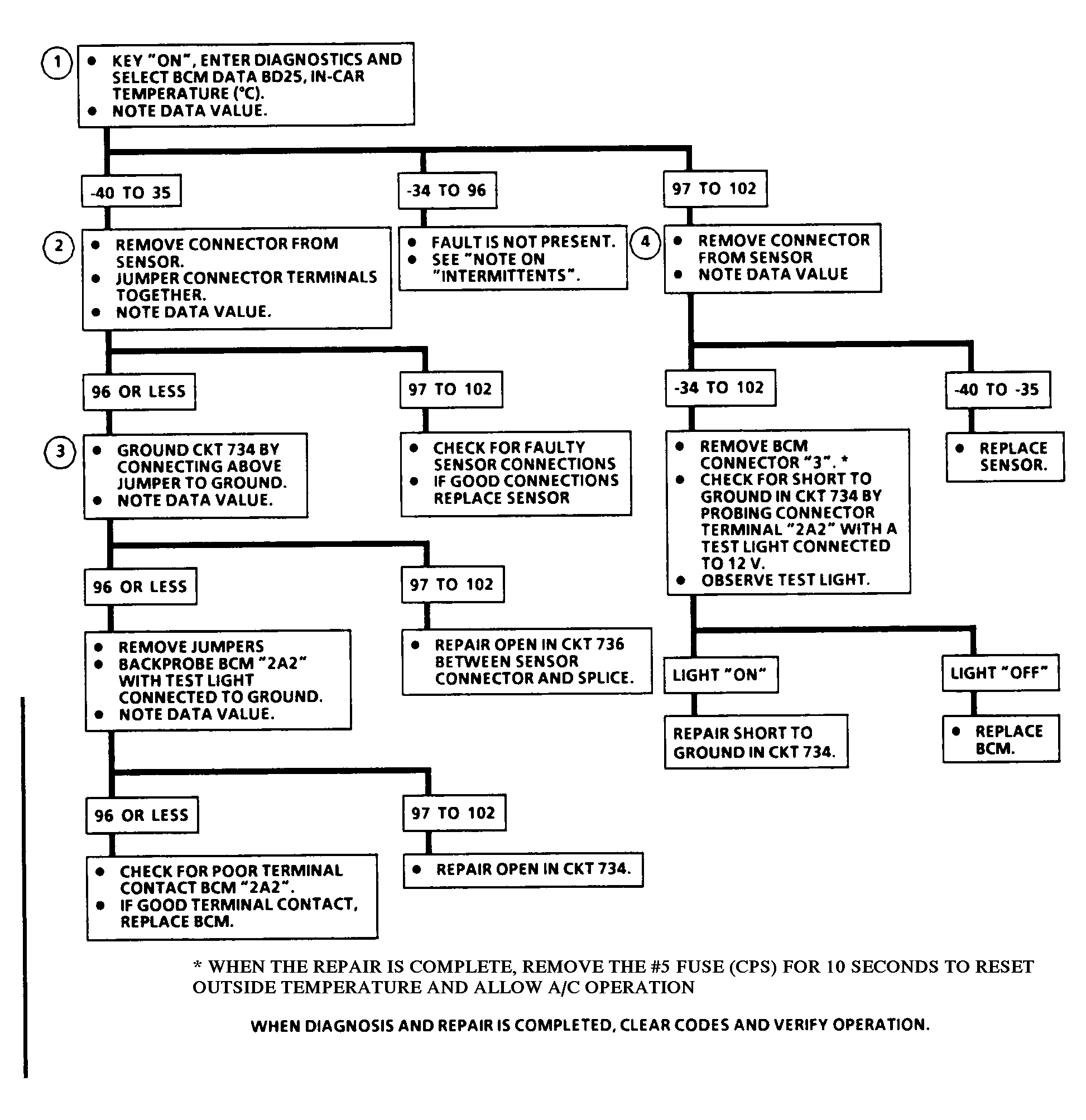

Fig 1: Flow Chart, BCM Code B113, In-Car Temp. Sensor Circuit
G57392
