Notes On Intermittents

If Code EO63 is setting intermittently, make sure driver is not overrunning set speed by 20 MPH. Check vacuum source and brake release vacuum lines for proper connections and/or leaks.

Fig 1: Code E063, Vehicle Speed/Set Speed Difference too High Schematic

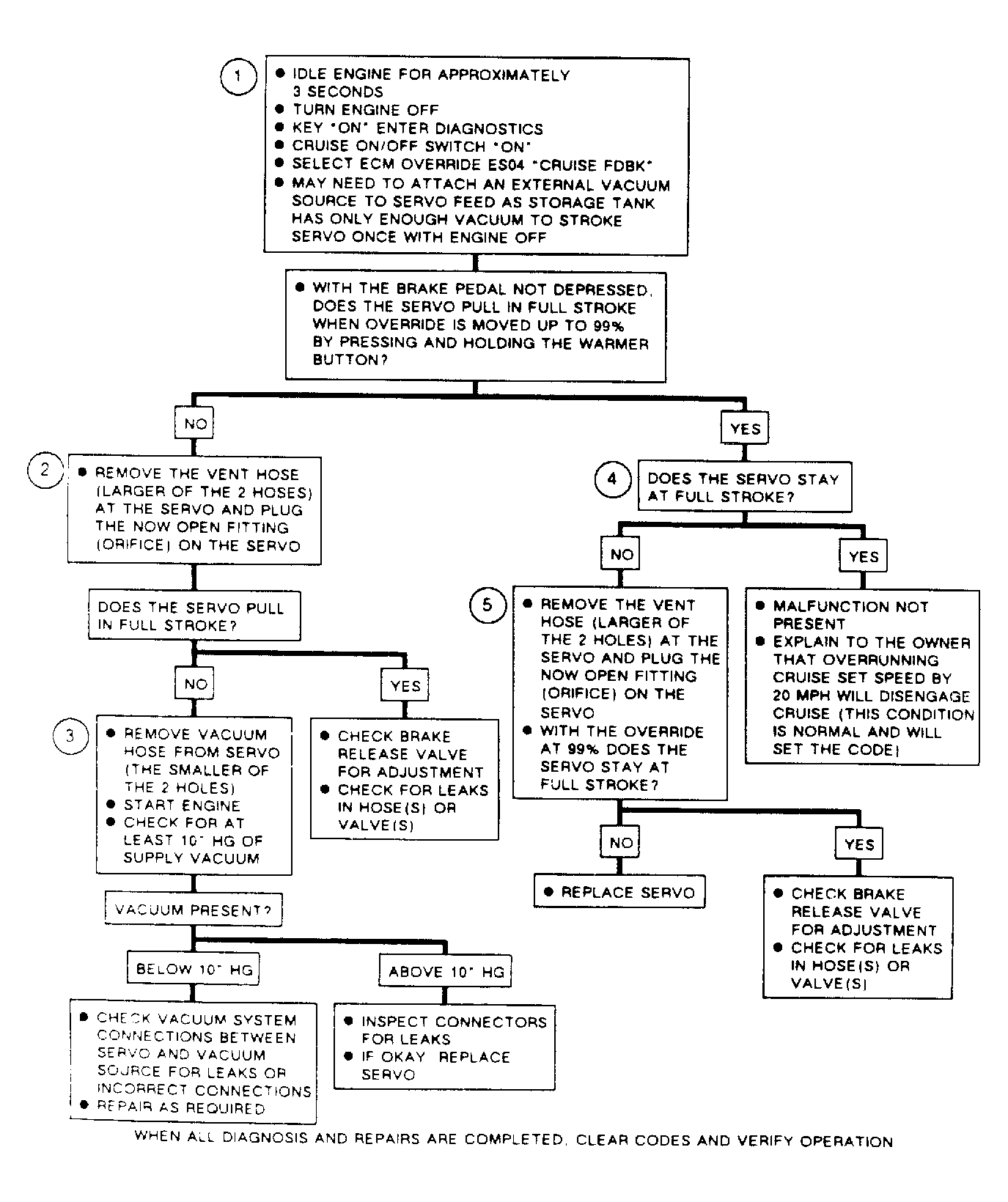

Fig 2: Flow Chart, Code E063, Vehicle Speed/Set Speed Difference Too High
