Notes On Intermittents

If Code EO22 is intermittent, manipulate related wiring while observing ECM parameter ED01. Cycle TPS through its travel and tap on TPS with a pencil to test for intermittent TPS operation. If fault is induced, parameter will skip to -6 degrees or less. If wiring and connectors are okay, substitute a known good TPS sensor and re-test.

Review snapshot data parameters stored with this code to verify failure. If failure is verified, check and repair intermittent wiring connection or sensor.

Fig 1: ECM Code E022, Open TPS Circuit Schematic

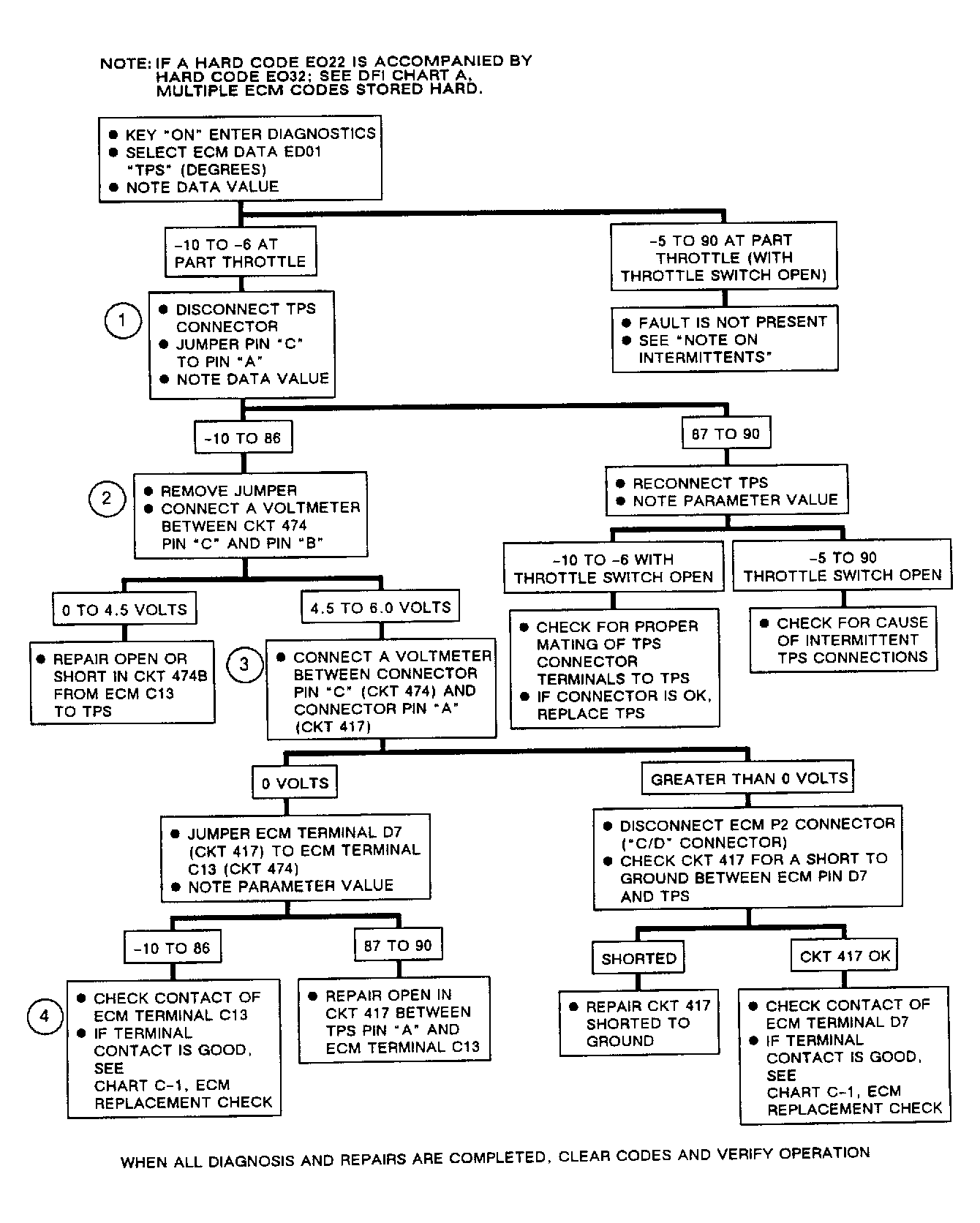

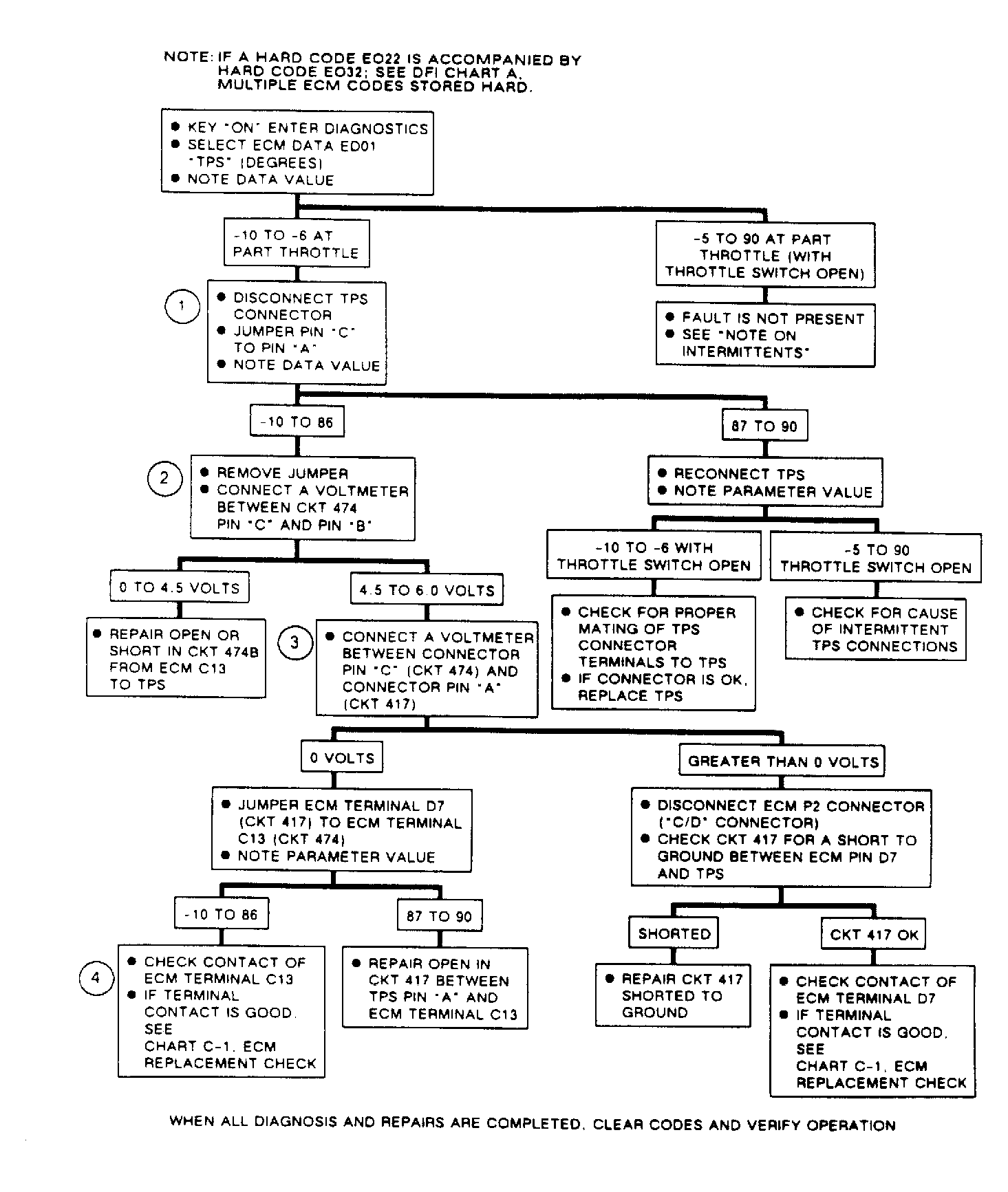

Fig 2: Flow Chart, Code E022, Open TPS Circuit
