Notes On Intermittents

If Code EO60 is stored as an intermittent code, check operation of park/neutral switch input test. After selecting input EI74, manipulate affected wiring while observing switch status. If switch changes status while wiring is being manipulated, repair faulty wiring or connections. If no trouble is found, it's possible that code can be set by inadvertently placing transmission into Neutral while cruise control is engaged.

Fig 1: Code E060, Cruise Control Trans. Not In Drive - Schematic
G57363

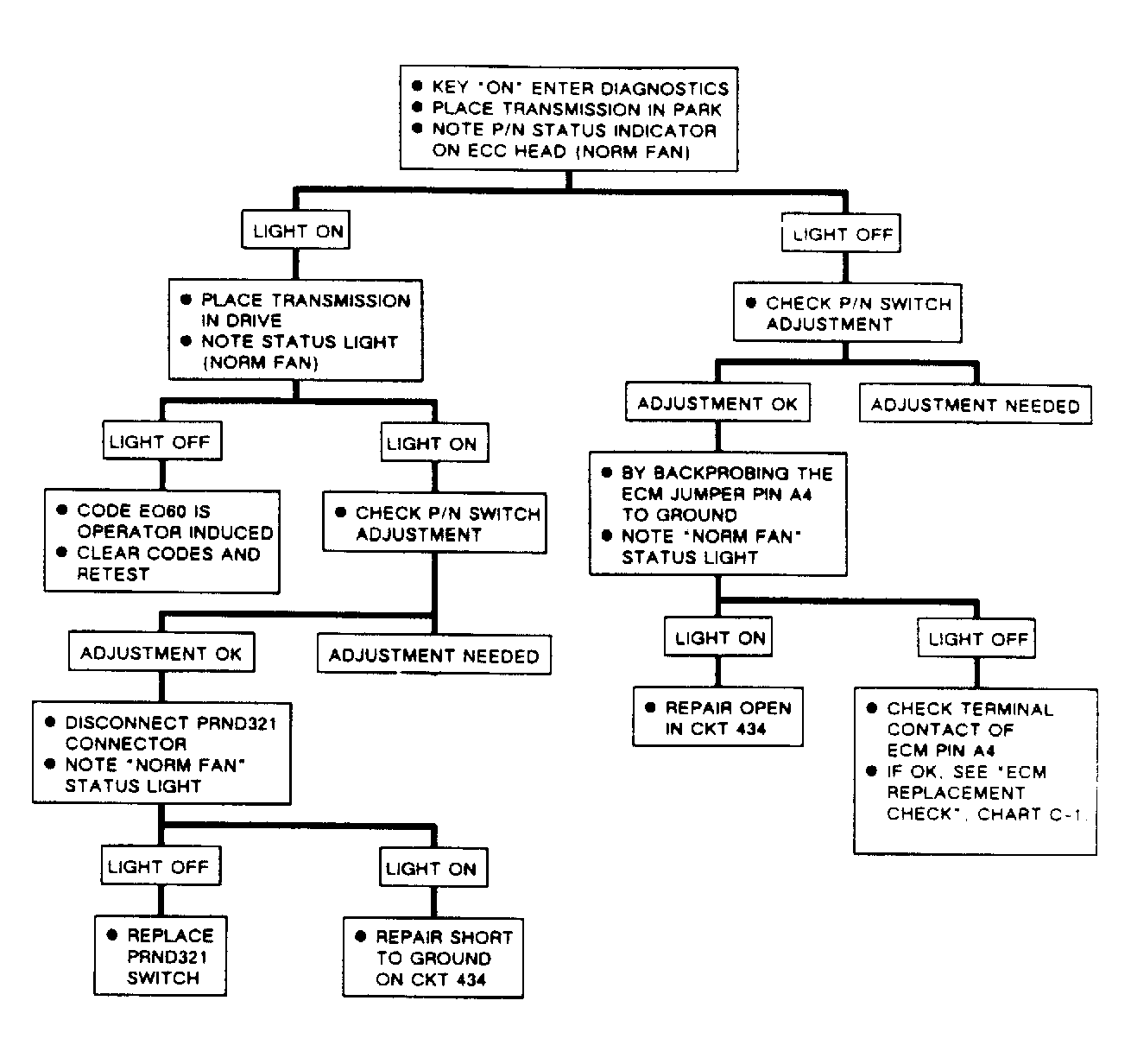

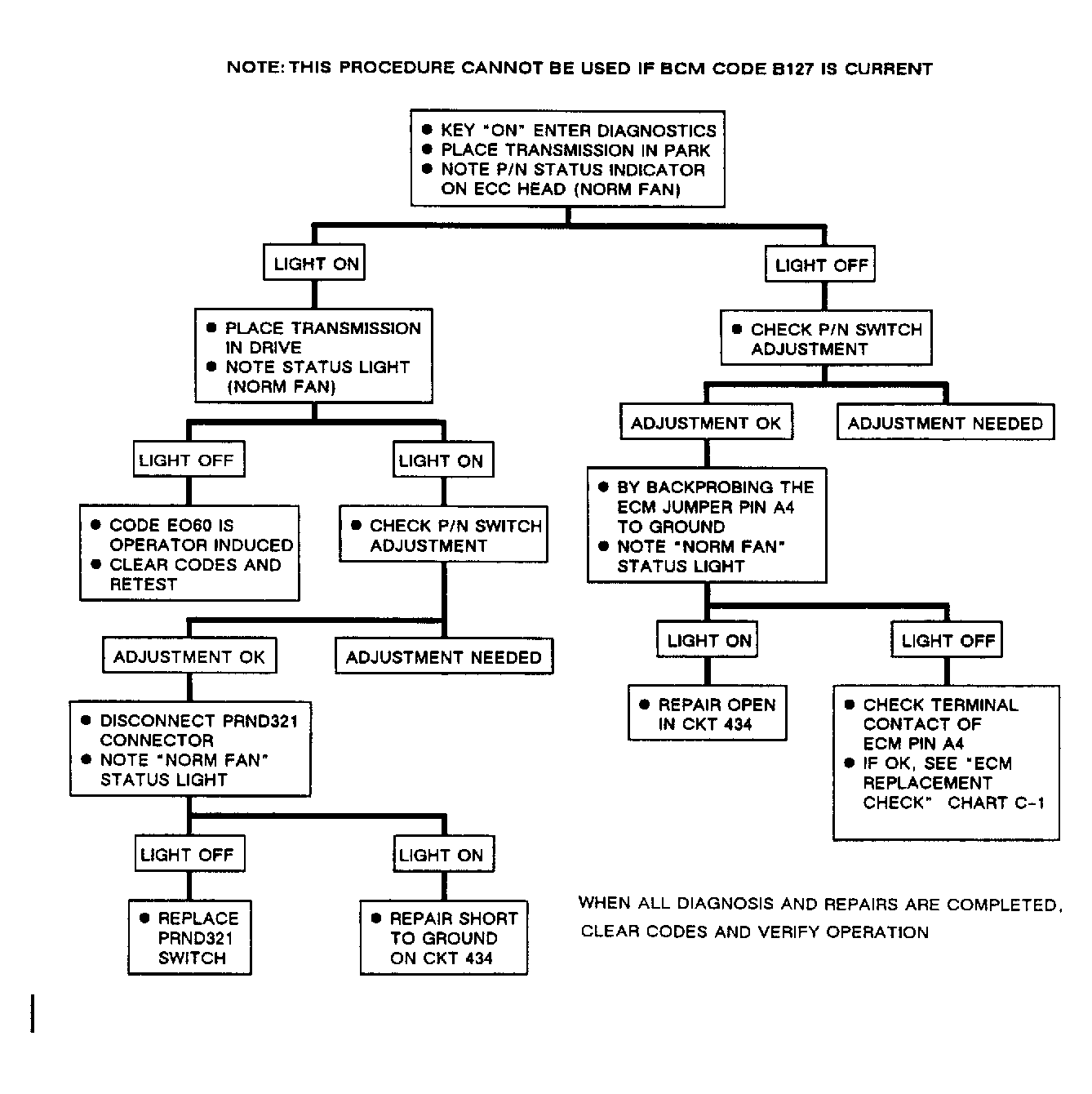

Fig 2: Flow Chart, Code E060, Cruise Control (Trans. Not In Drive)
G111847
