Flow Chart, Code E048, (1 Of 2) EGR System Fault

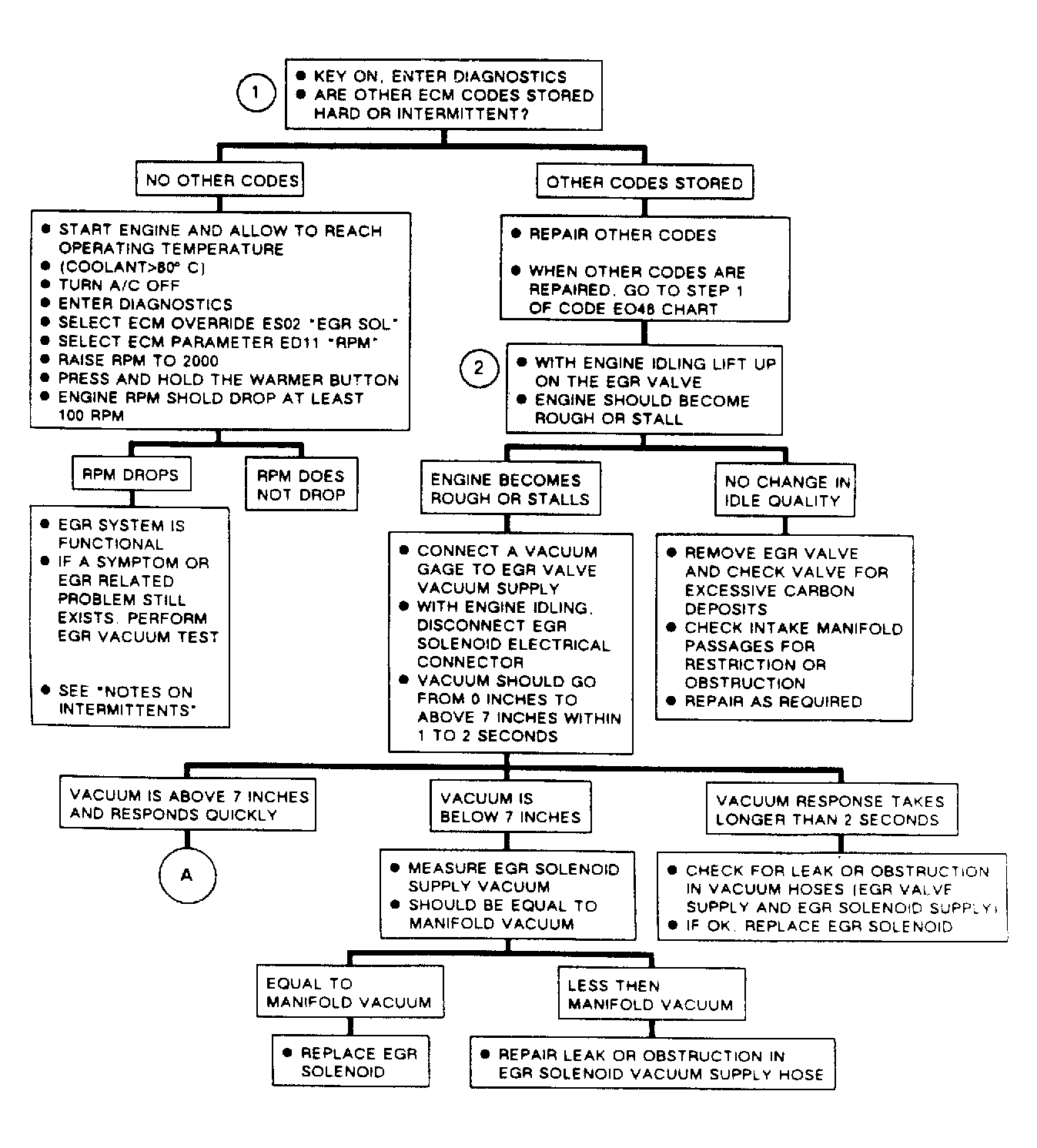

Fig 1: Flow Chart, Code E048, (1 of 2) EGR System Fault
