Computerized Engine Controls: Notes

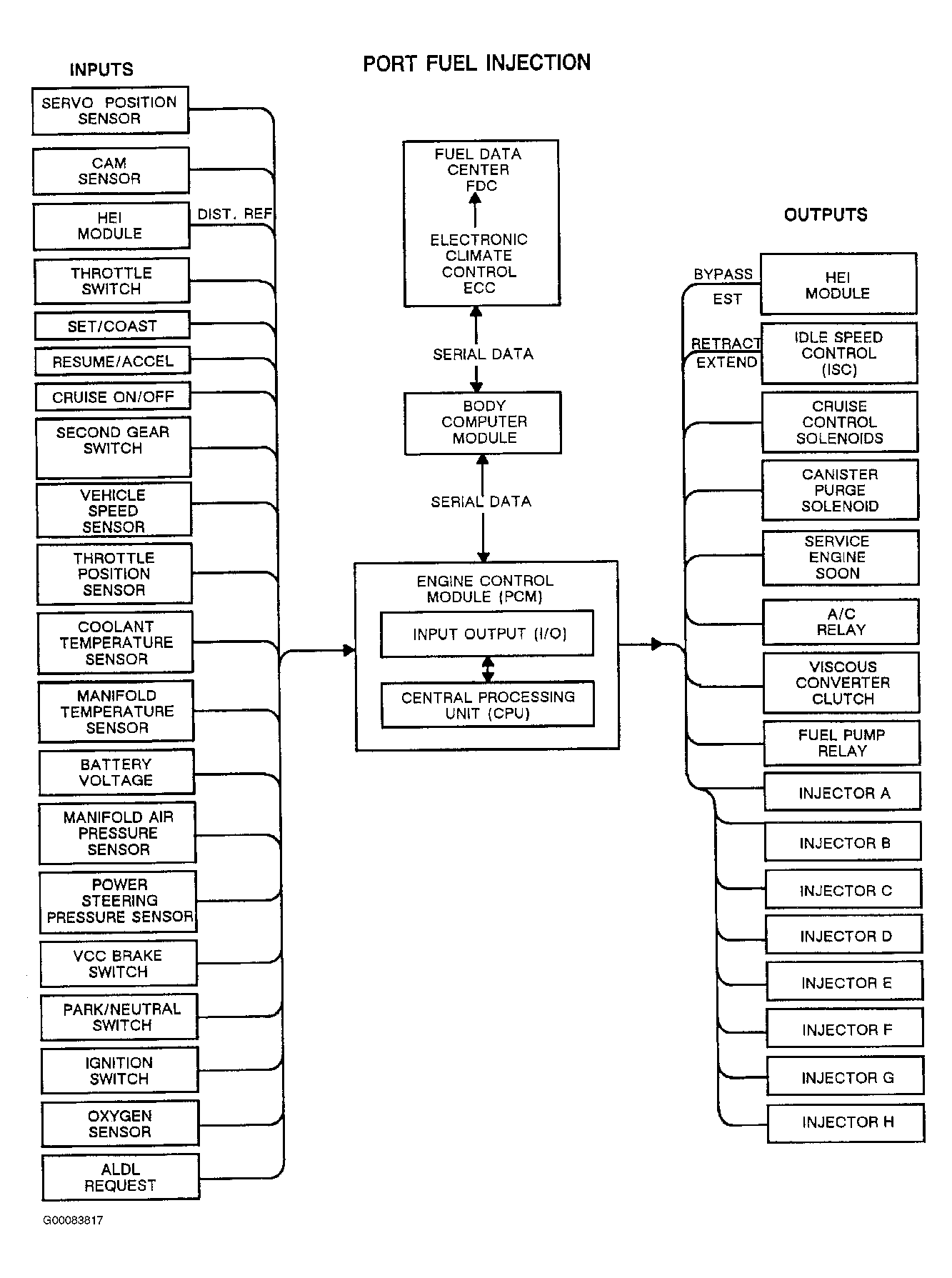

Fig 1: System Input/Output & Control

G00083817

Courtesy of GENERAL MOTORS CORP.
