Chart G: System Power Circuits
>>
Test Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test Description
For test description, see
Fig 1
.

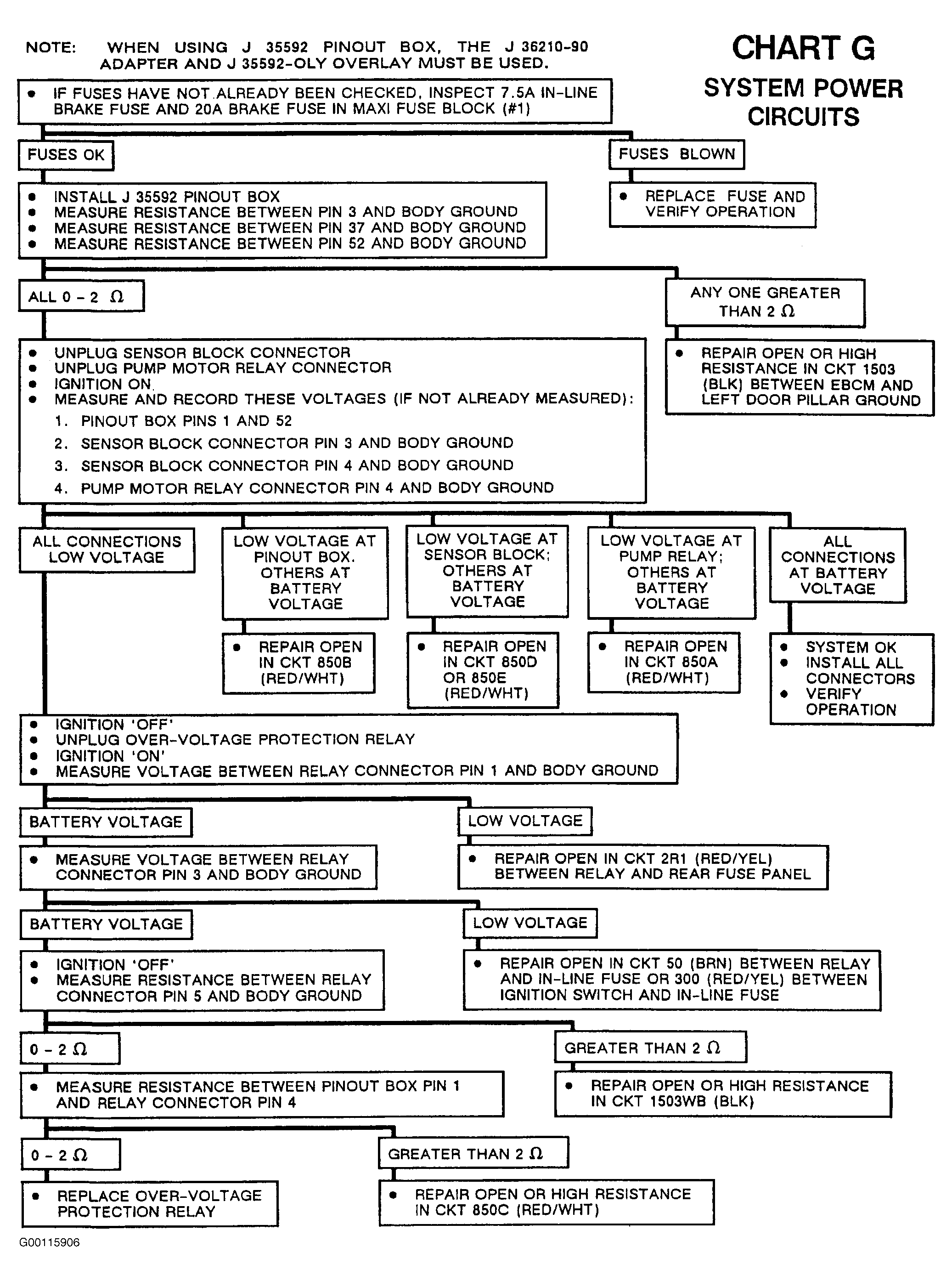

Fig 1: Chart G: Diagnostic Chart
Courtesy of GENERAL MOTORS CORP.
