Connector Identification

WARNING: This page is about a different car, the 1988 Cadillac Allante and 1987 Cadillac Allante. However, it is still accessible from the selected car via links, so may be relevant.

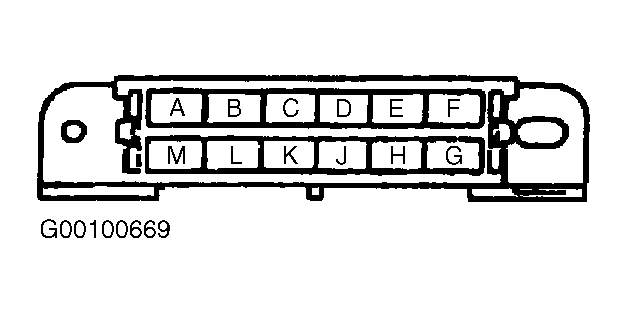

Fig 1: Identifying Assembly Line Data Link (ALDL) Connector Terminal

G00100669

Courtesy of GENERAL MOTORS CORP.

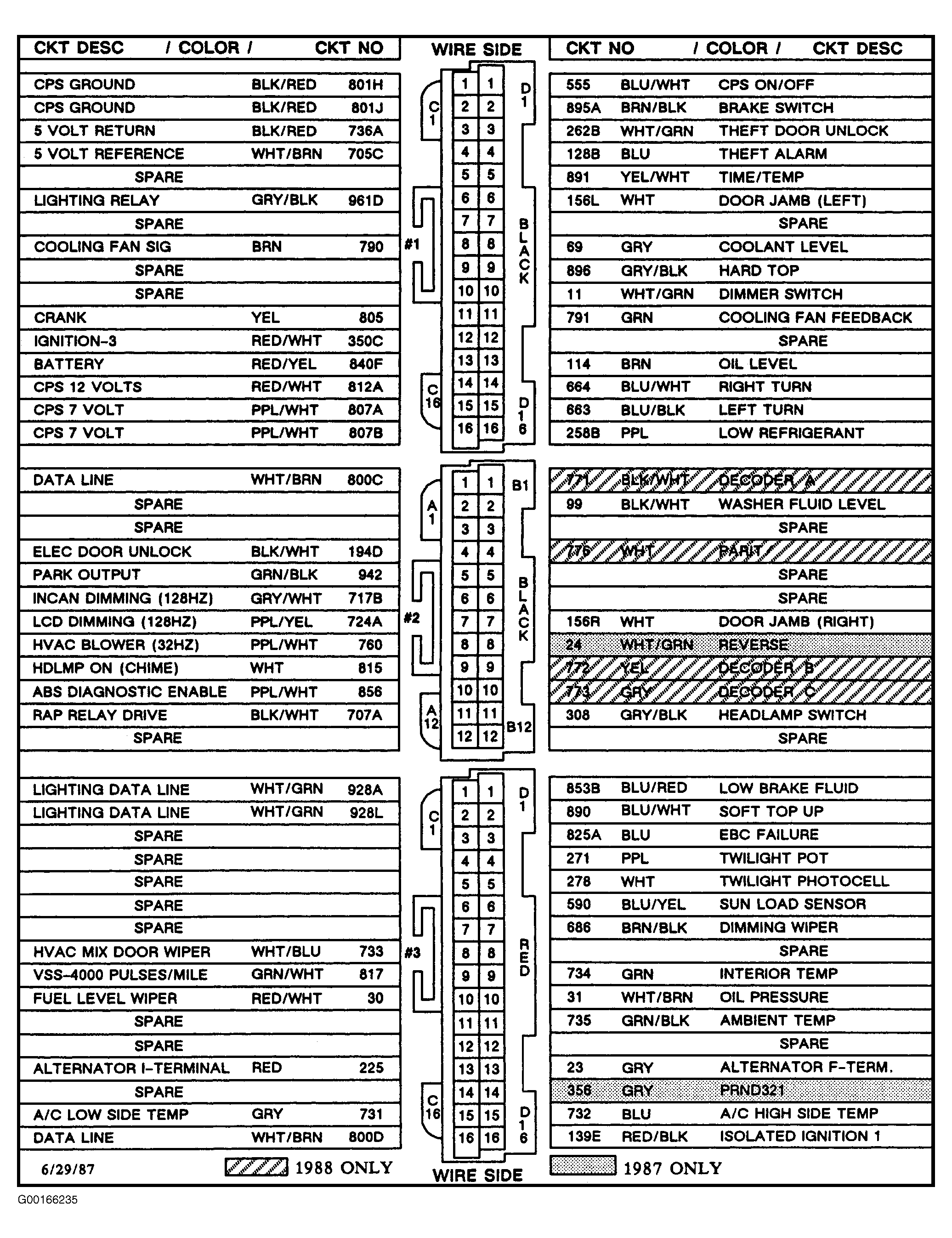

Fig 2: BCM Circuit Identification (Wire Side Of Connectors)

G00166235

Courtesy of GENERAL MOTORS CORP.

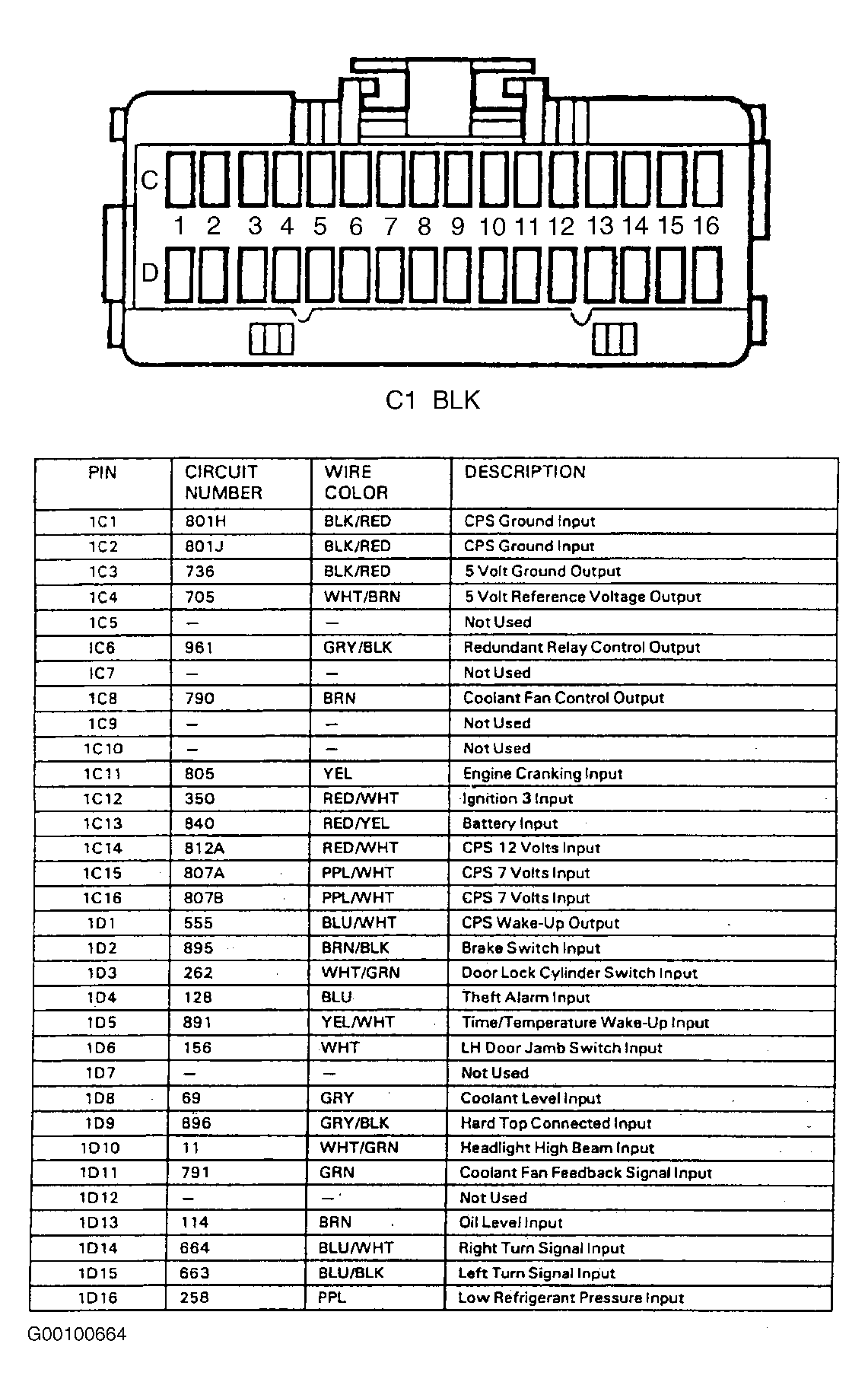

Fig 3: Identifying BCM C1 Connector Terminal

G00100664

Courtesy of GENERAL MOTORS CORP.

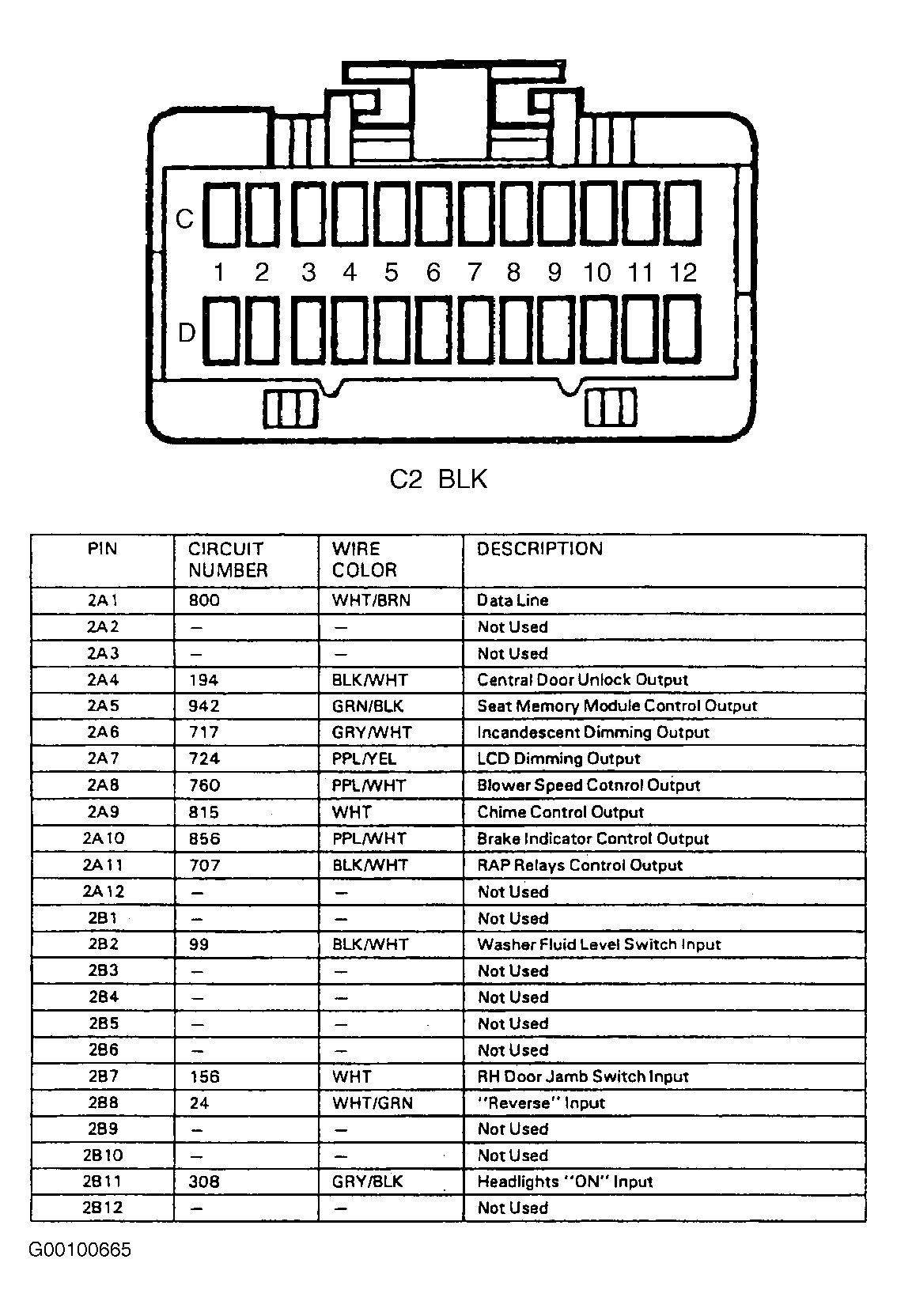

Fig 4: Identifying BCM C2 Connector Terminal

G00100665

Courtesy of GENERAL MOTORS CORP.

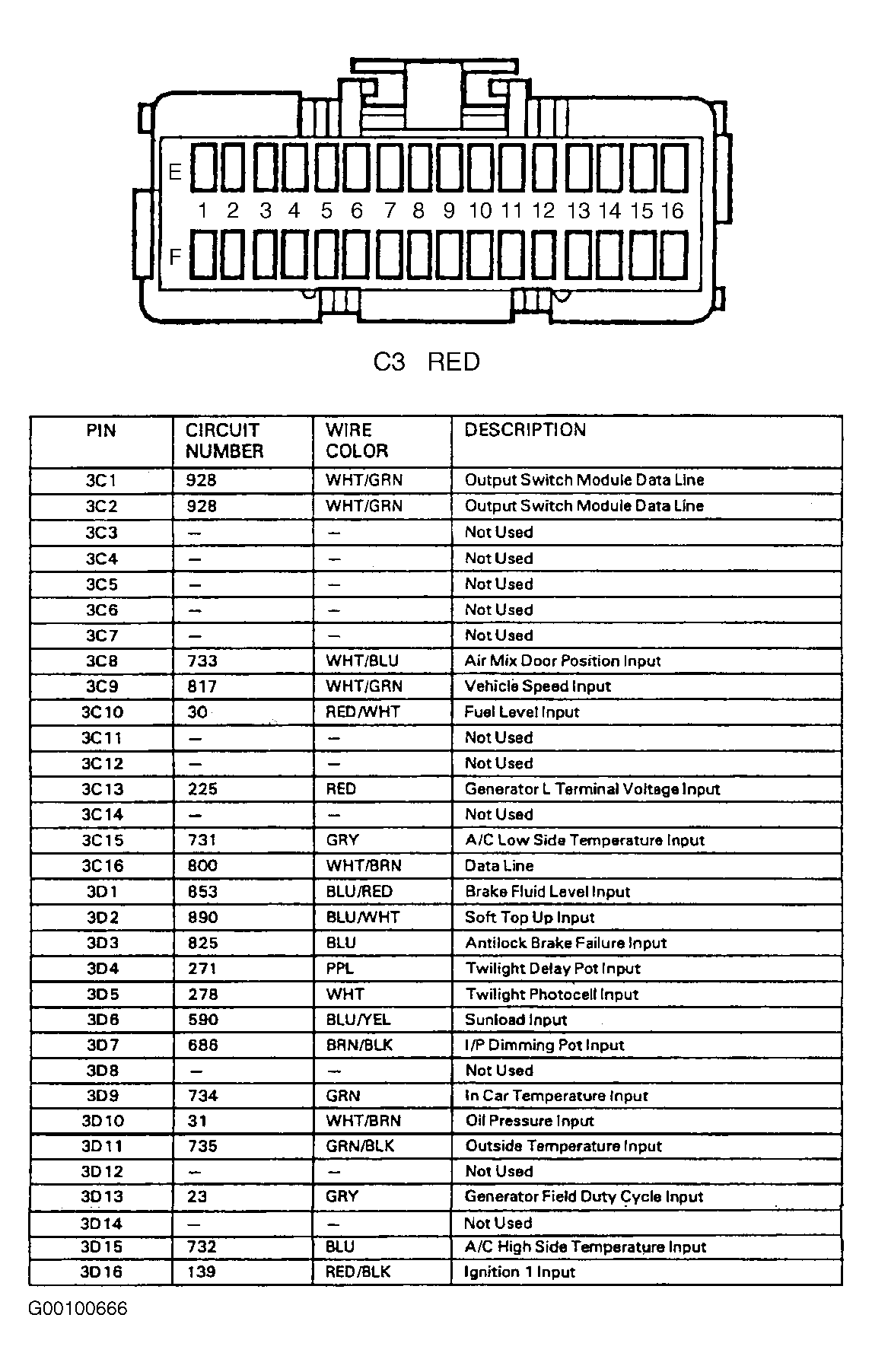

Fig 5: Identifying BCM C3 Connector Terminal

G00100666

Courtesy of GENERAL MOTORS CORP.

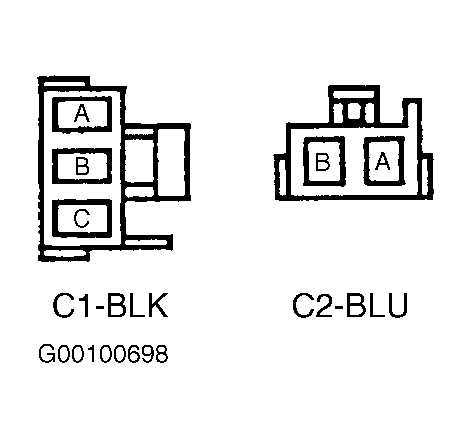

Fig 6: Identifying Brake Switch Connector Terminal

G00100698

Courtesy of GENERAL MOTORS CORP.

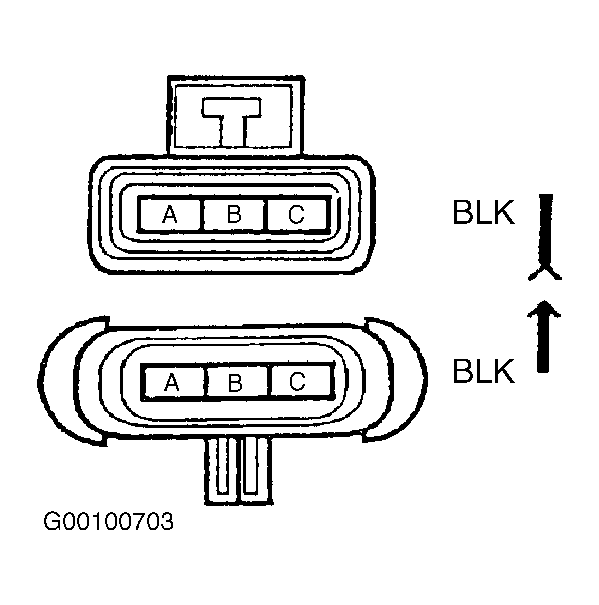

Fig 7: Identifying C319 Connector Terminal

G00100703

Courtesy of GENERAL MOTORS CORP.

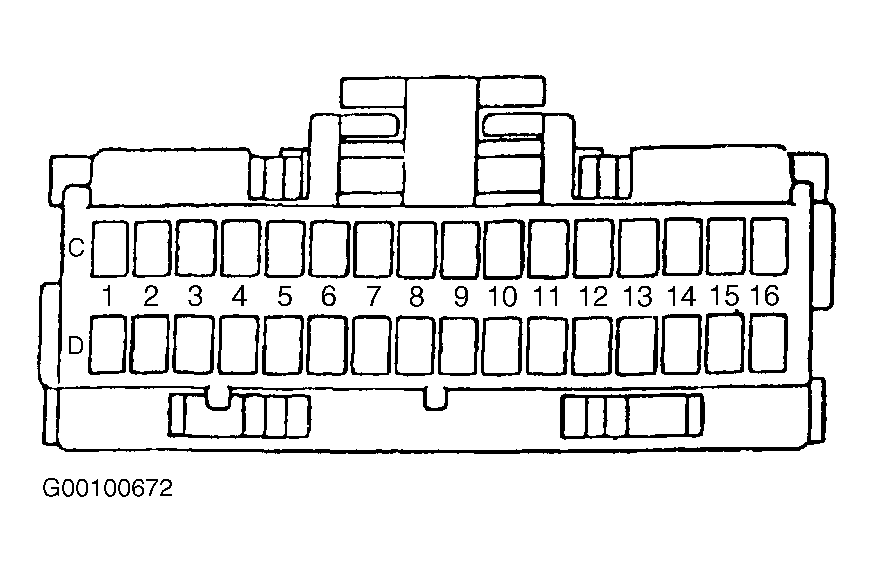

Fig 8: Identifying Central Power Supply (CPS) Connector Terminal

G00100672

Courtesy of GENERAL MOTORS CORP.

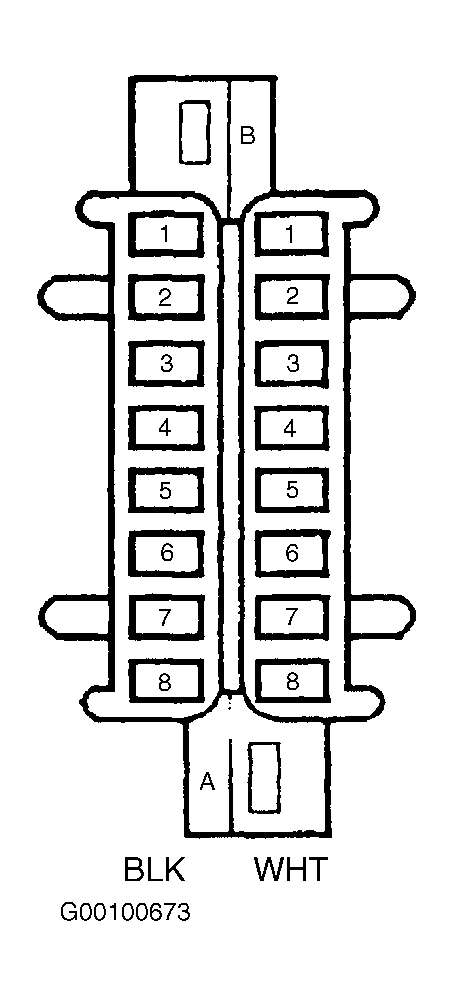

Fig 9: Identifying Climate Control/Driver Information Center (CCDIC) Connector Terminal (Left Switch Pod Similar)

G00100673

Courtesy of GENERAL MOTORS CORP.

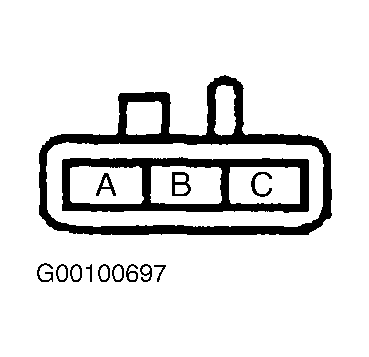

Fig 10: Identifying Right & Left Door Jamb Switch Connector Terminal

G00100697

Courtesy of GENERAL MOTORS CORP.

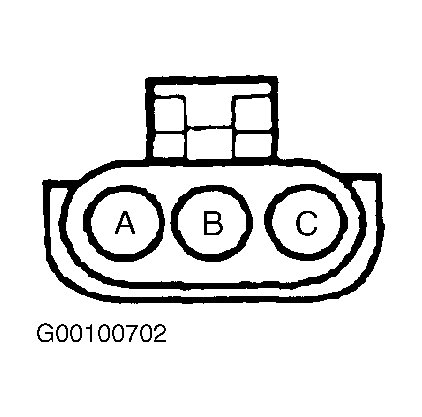

Fig 11: Identifying Door Lock Cylinder Switch Connector Terminal

G00100702

Courtesy of GENERAL MOTORS CORP.

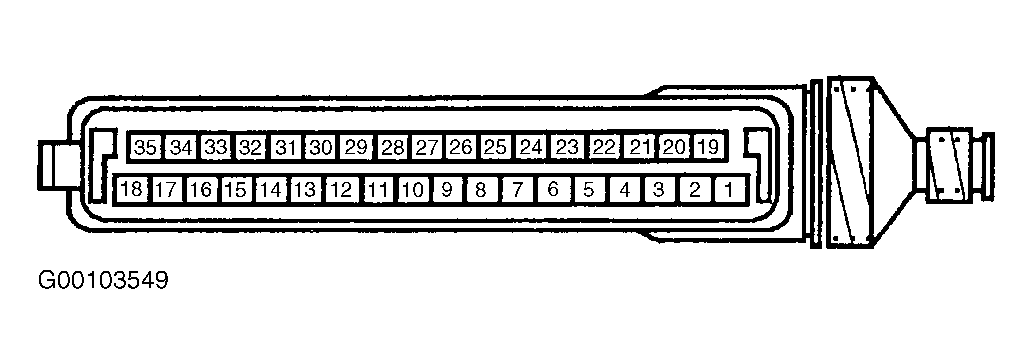

Fig 12: Identifying Electronic Brake Control Module (EBCM) Connector Terminal

G00103549

Courtesy of GENERAL MOTORS CORP.

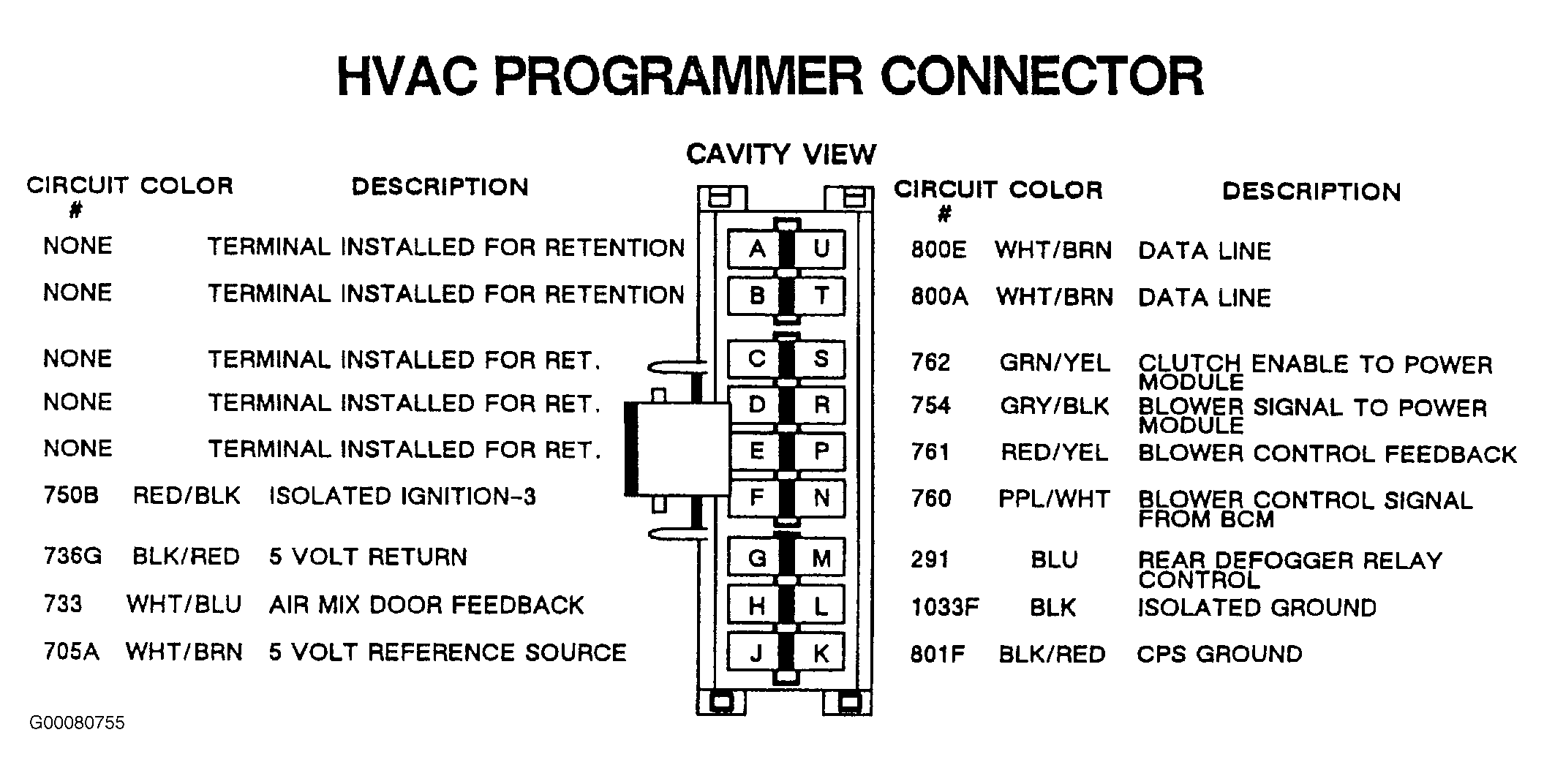

Fig 13: Identifying Programmer Harness Connector Terminal

G00080755

Courtesy of GENERAL MOTORS CORP.

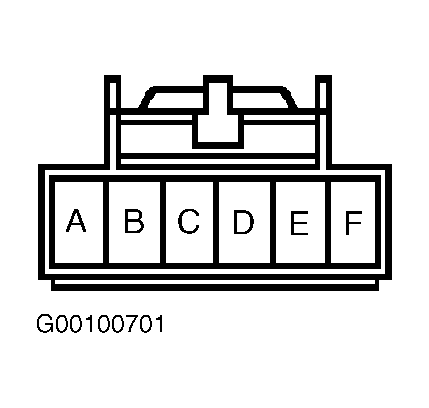

Fig 14: Identifying Low Coolant Level Module Connector Terminal

G00100701

Courtesy of GENERAL MOTORS CORP.

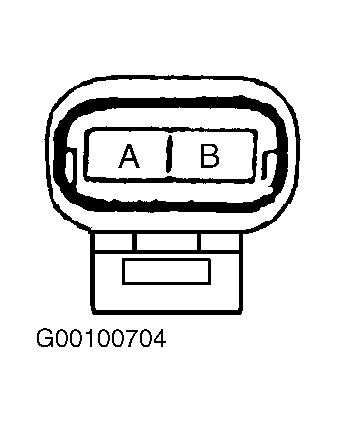

Fig 15: Identifying Oil Level Sensor Switch Connector Terminal

G00100704

Courtesy of GENERAL MOTORS CORP.

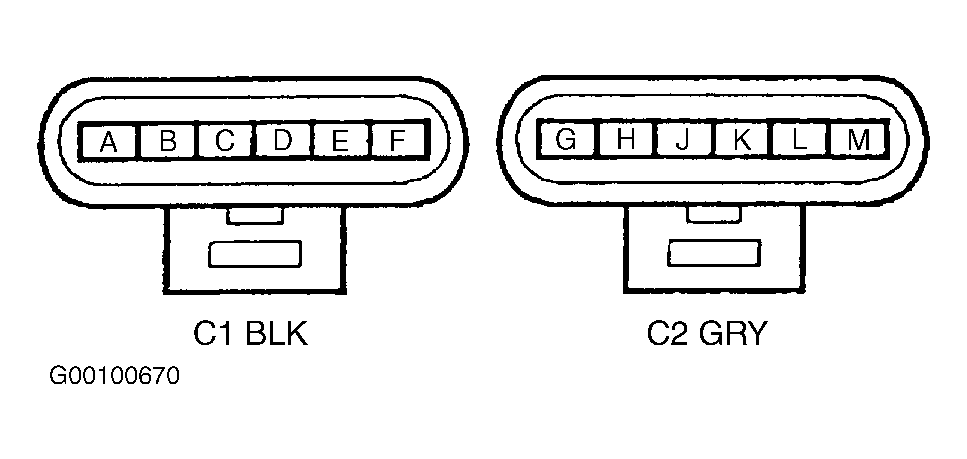

Fig 16: Identifying Output Switching Module (OSM) Connector Terminals

G00100670

Courtesy of GENERAL MOTORS CORP.

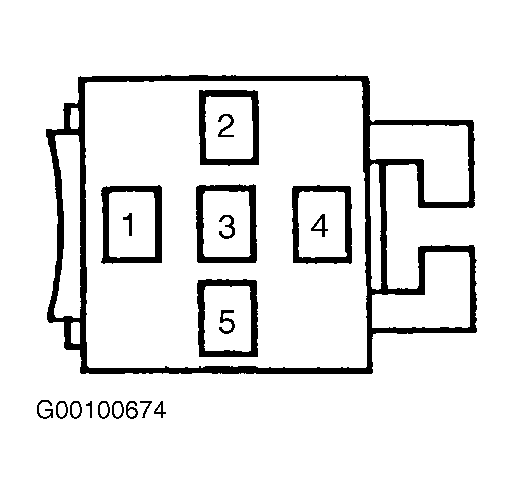

Fig 17: Identifying Retained Accessory Power Relay (RAP) 1 & 2 Connector Terminals

G00100674

Courtesy of GENERAL MOTORS CORP.

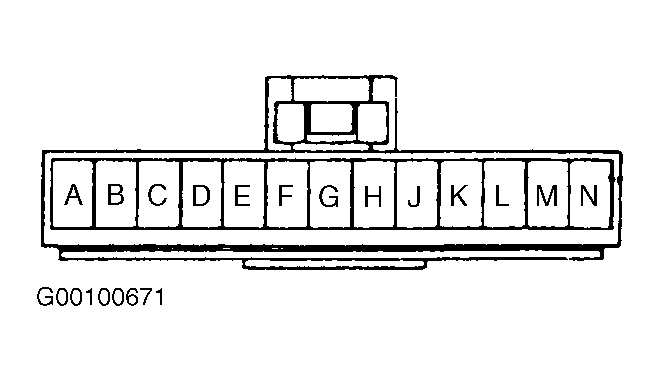

Fig 18: Identifying Theft Deterrent Module Connector Terminal

G00100671

Courtesy of GENERAL MOTORS CORP.

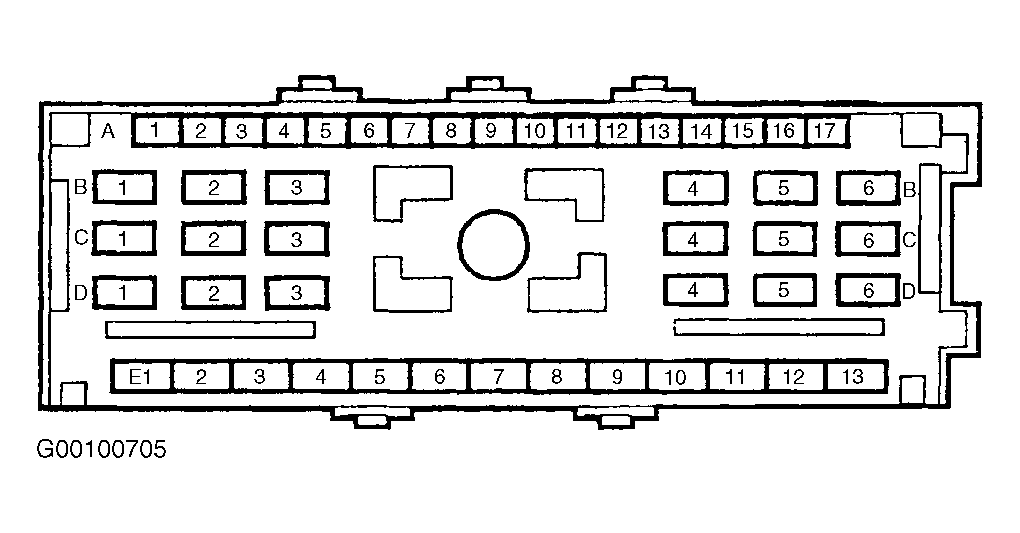

Fig 19: Identifying C202 Turn Switch Connector Terminal

G00100705

Courtesy of GENERAL MOTORS CORP.

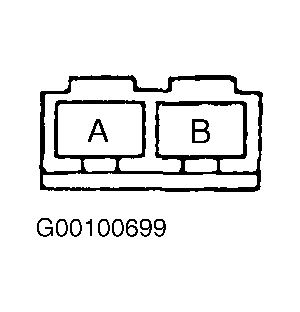

Fig 20: Identifying Washer Fluid Level Switch Connector Terminal

G00100699

Courtesy of GENERAL MOTORS CORP.
