Note On Intermittents

If Code EO49 is stored as history (intermittent), verify oxygen sensor operation. Check operation of air injection system. Check all hoses, pipes and wiring for damage.

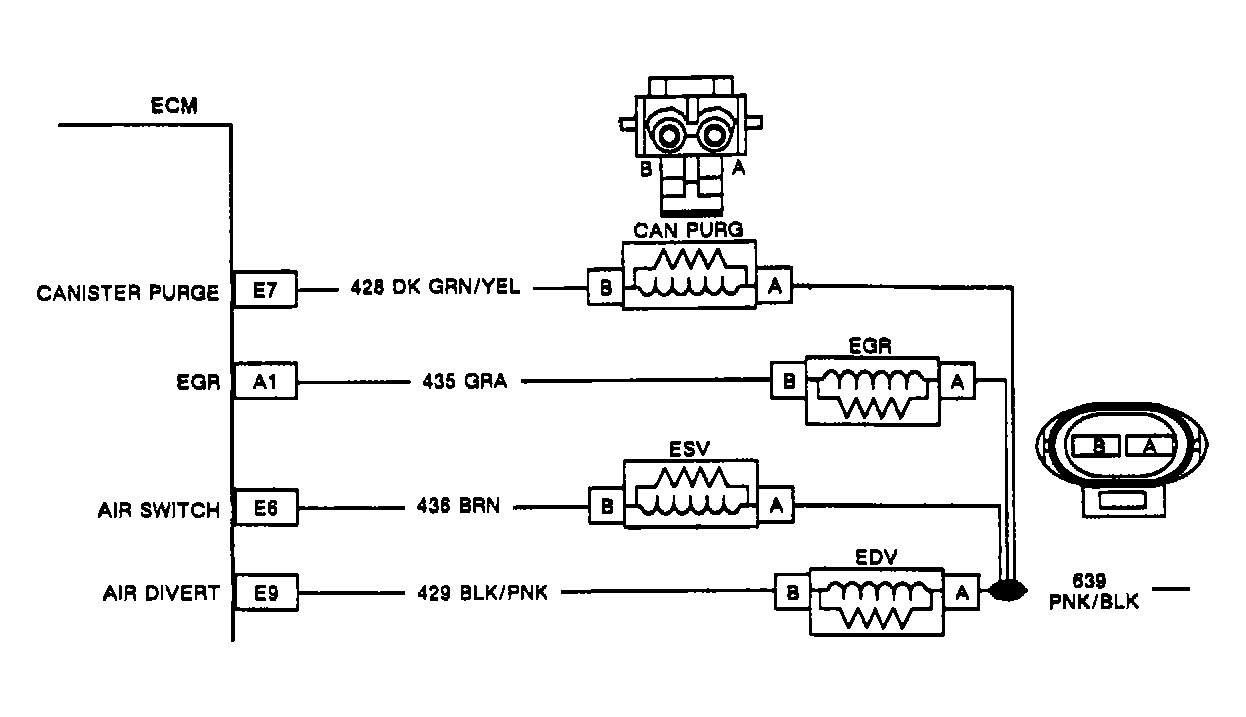

Fig 1: ECM Code EO49 Circuit Diagram

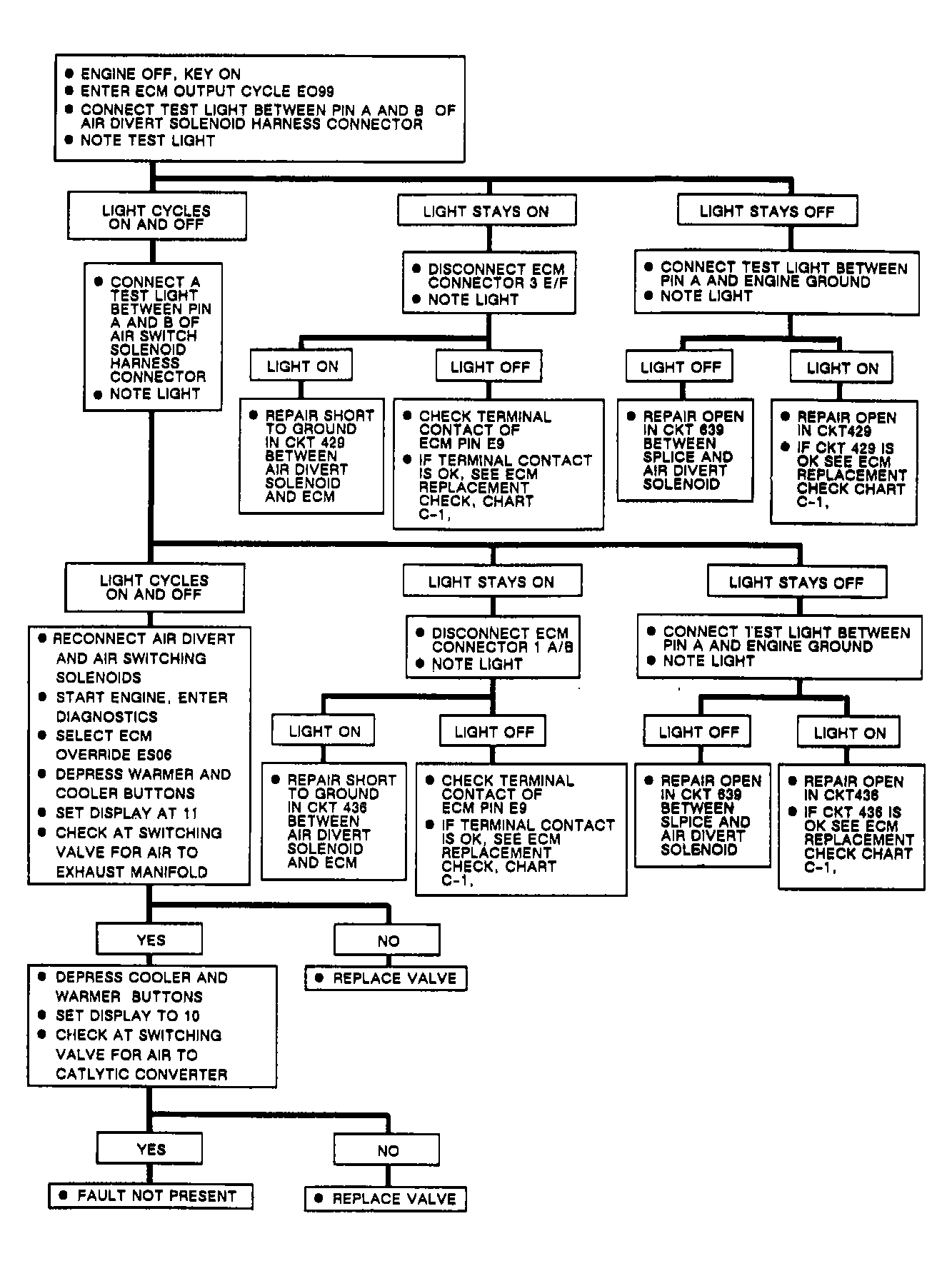

Fig 2: ECM Code EO49 Flow Chart
