Note On Intermittents

If Code EO60 is stored a history code, select ECM data ED72. Manipulate harness while observing status of switch. If switch changes status as wiring is being manipulated, repair intermittent connections. If no trouble code is found, code may have been set if transmission was inadvertently put into NEUTRAL while cruise control was engaged.

Fig 1: ECM Code EO60 Circuit Diagram

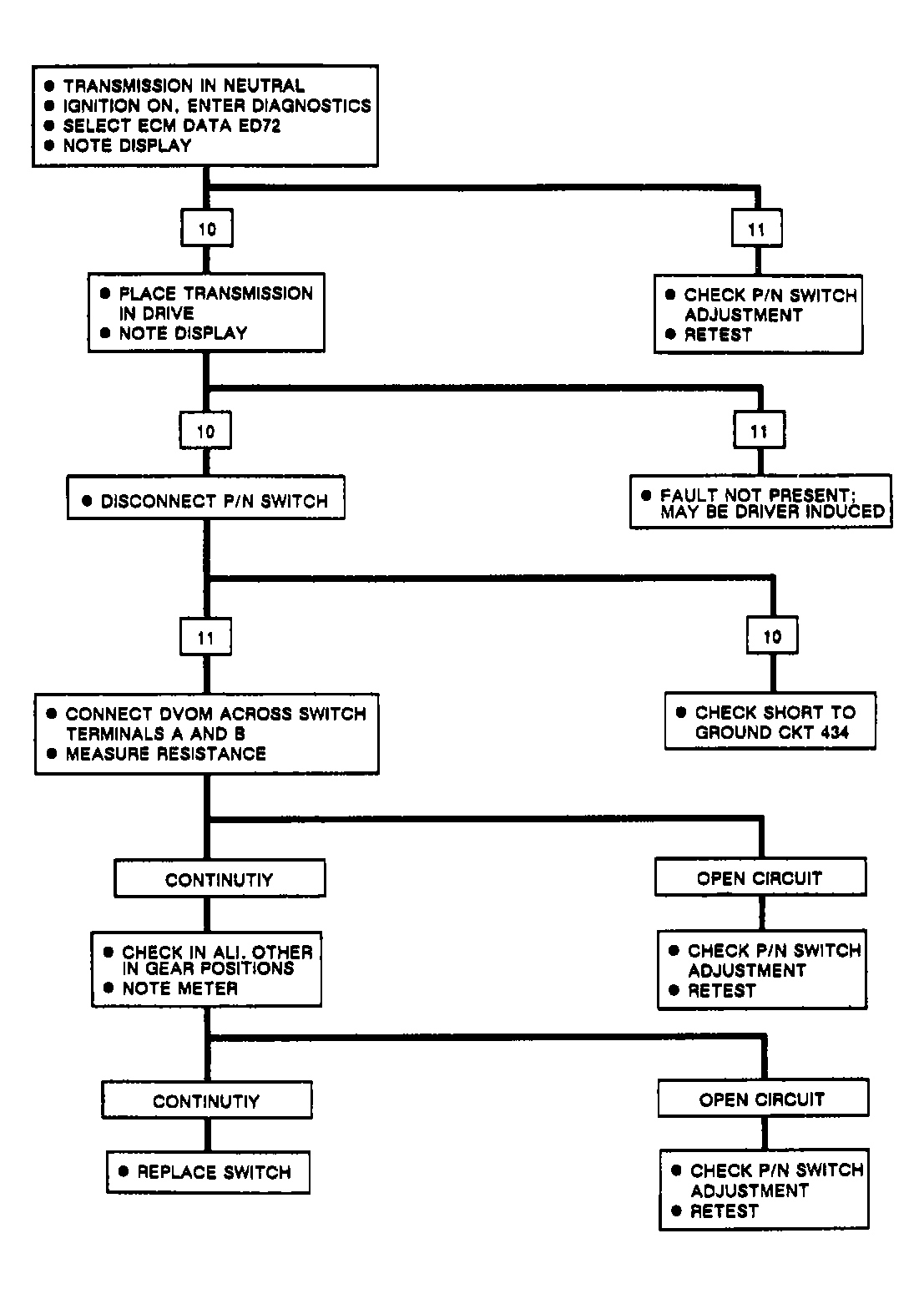

Fig 2: ECM Code EO60 Flow Chart
