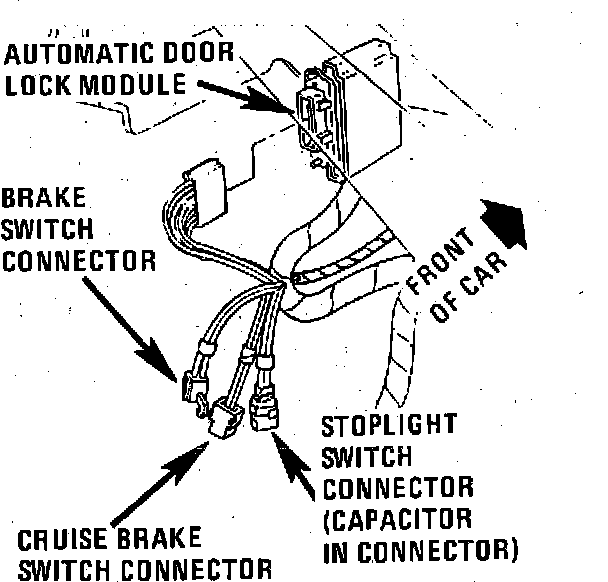

Automatic Door Lock Module
Behind Center Of I/P.:
Behind Center Of I/P, At Base Of Steering Column
Applicable to: Eldorado & Seville
