Chart B-2, EBCM Loop Circuit Open
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart B-2, EBCM Loop Circuit Open

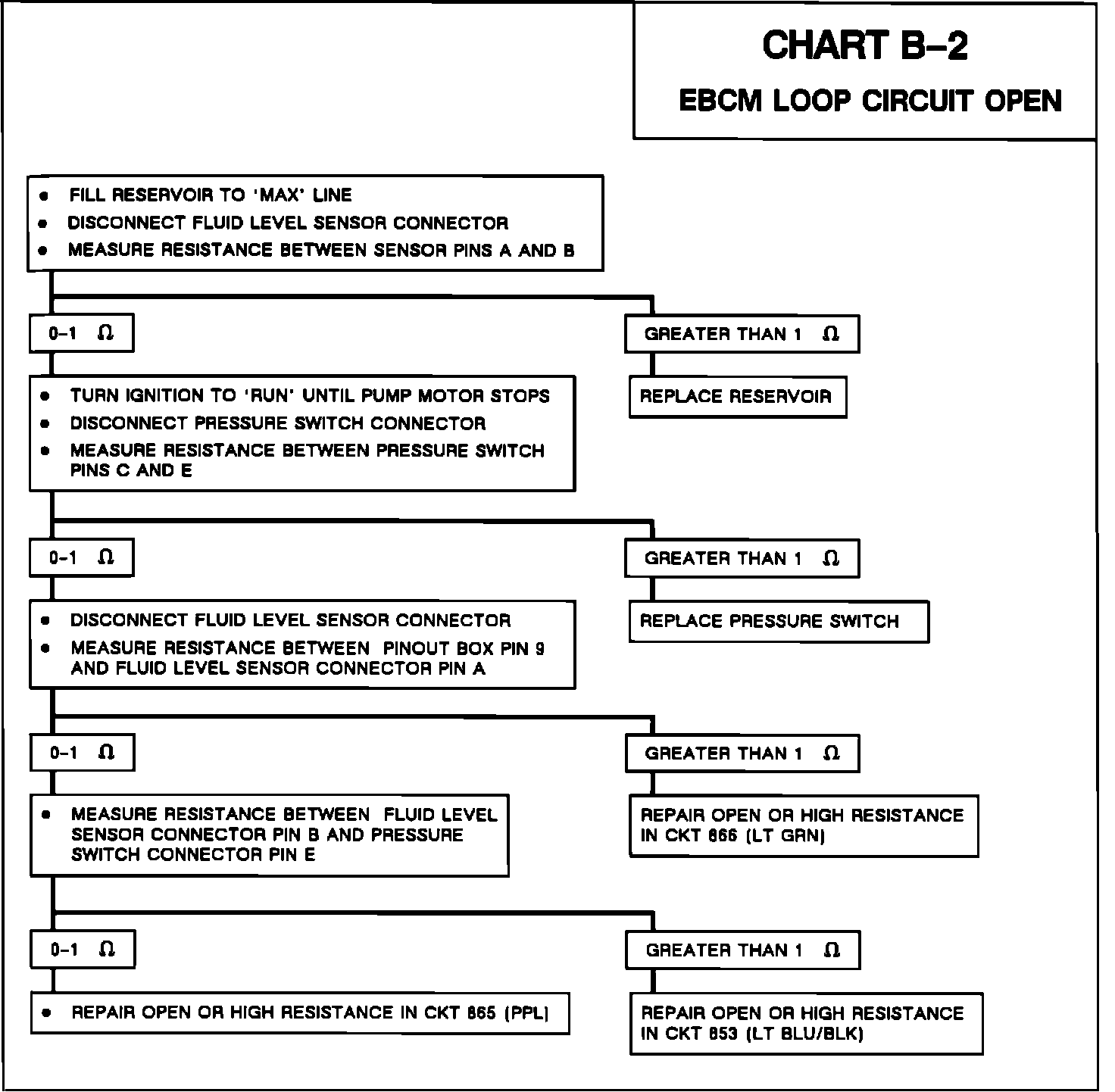

Fig. 30 Chart B-2, EBCM Loop Circuit Open:
