Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

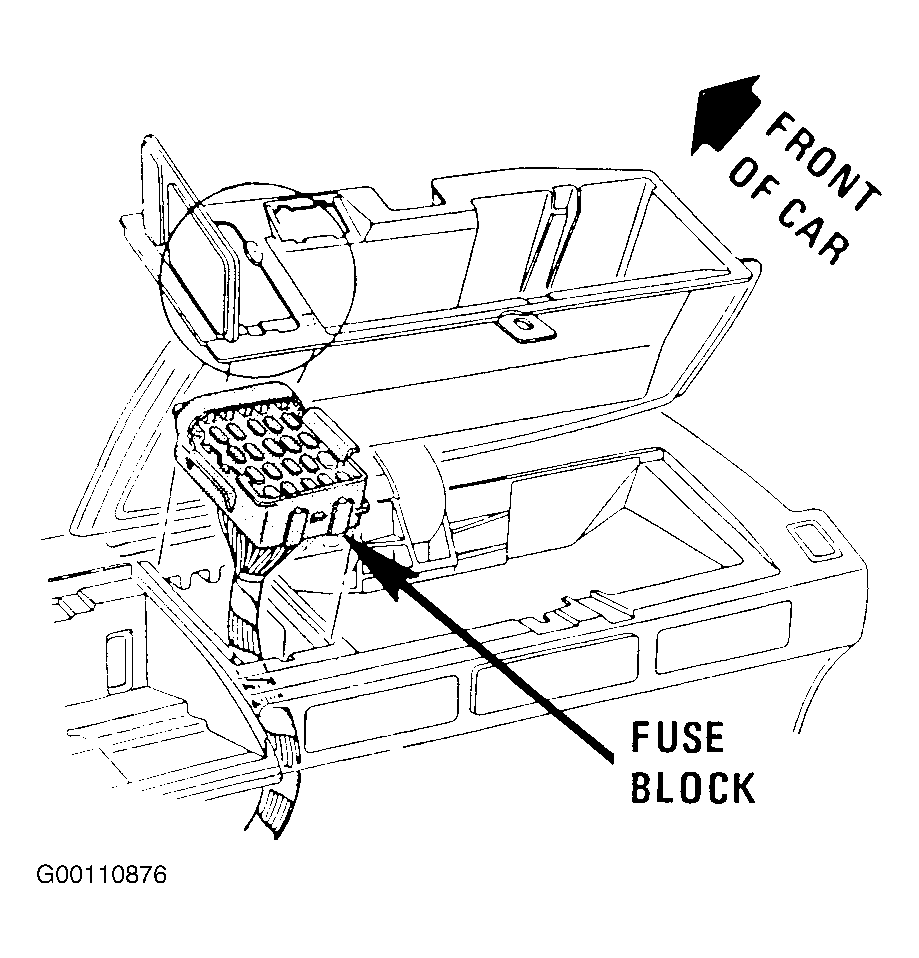

| Fuse Block | Behind Right Side Of Instrument Panel, In Glove Box. See Fig 1 . |
| Power Seat Recliner Capacitors | In Respective Power Seat Recliner Motor Connectors |
| Power Seat Recliner Motors | In Lower Left Rear Of Respective Front Seats |
| Seat Lumbar Compressor Capacitors | In Respective Seat Lumbar Compressor Connectors |
| Seat Lumbar Compressor | In Front Of Respective Front Seat |

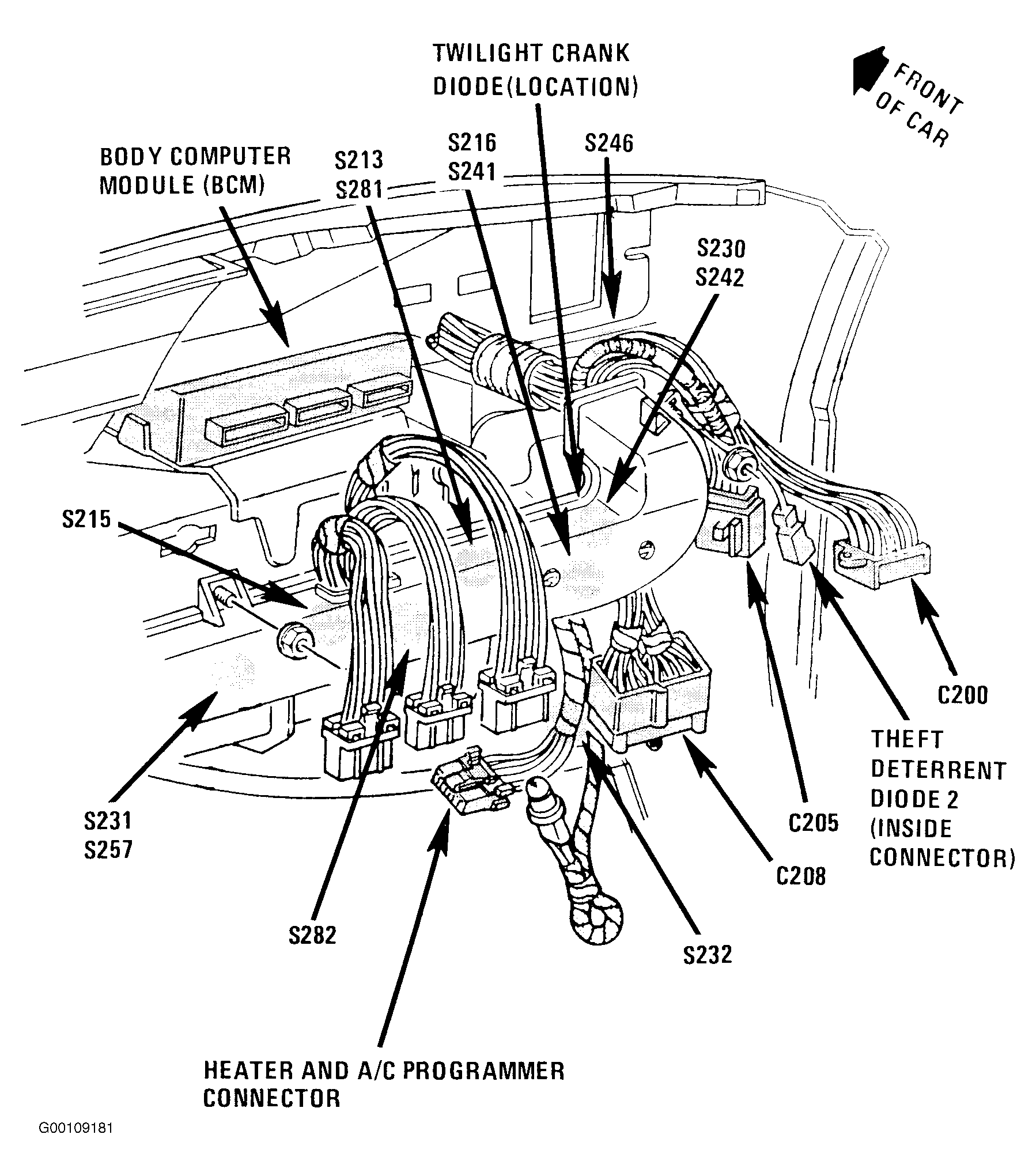

| C200 (56 Cavities) | Behind Right Side Of Instrument Panel, Near Shroud. See Fig 2 . |
| C304 (2 Cavities) | Behind Left Side Of Left Front Seat |

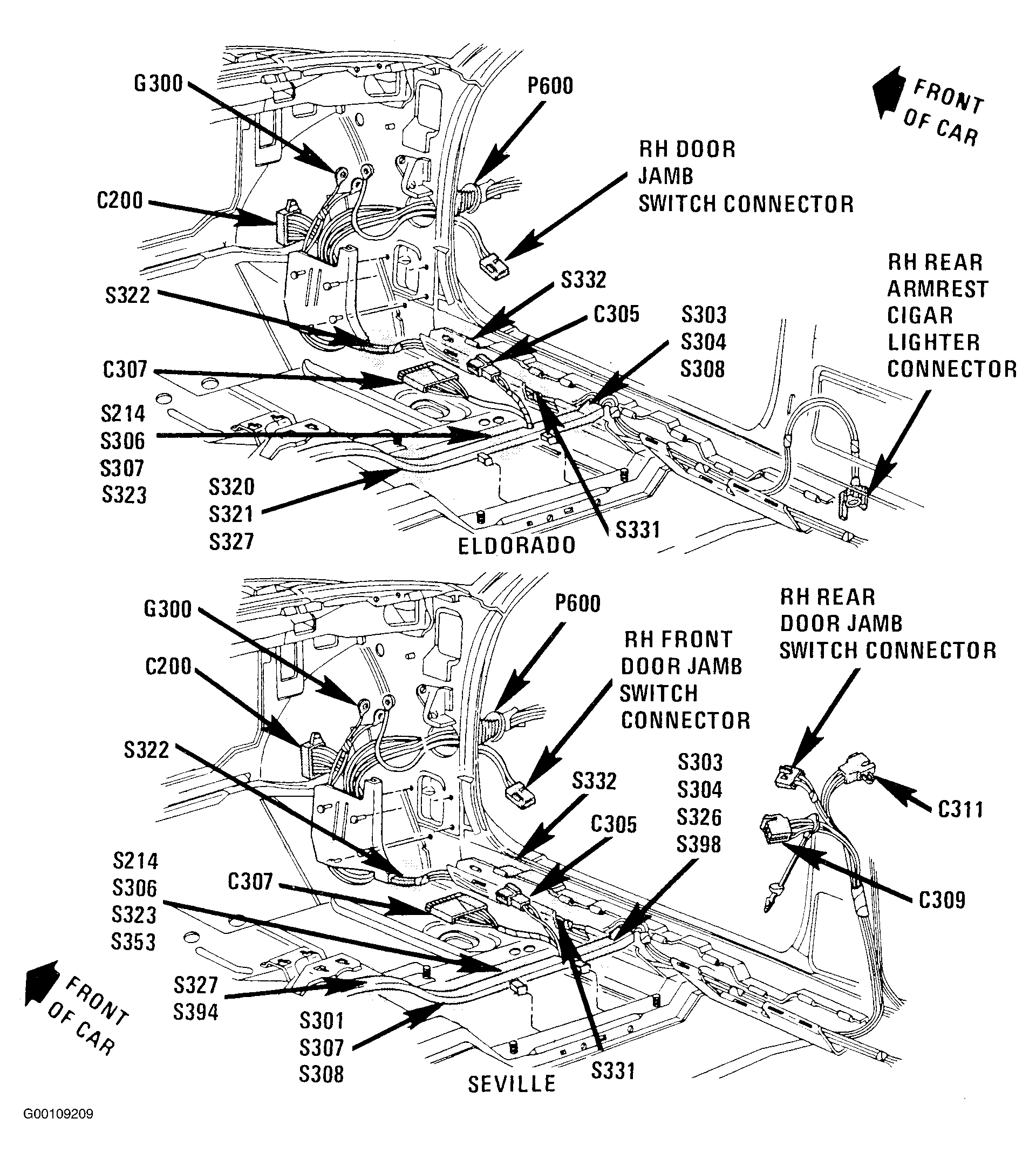

| C305 (2 Cavities) | Below Right Side Of Right Front Seat. See Fig 3 . |
| C306 (6 Cavities) | In Passenger Compartment, Below Left Front Seat |
| C307 (6 Cavities) | Below Right Side Of Right Front Seat. See Fig 3 . |
| C348 (2 Cavities) | In Left Front Seat, At Seat Lumbar Switch |
| C349 (2 Cavities) | In Right Front Seat, At Seat Lumbar Switch |
| G300 | Behind Instrument Panel, On Upper Right Hand Shroud. See Fig 3 . |

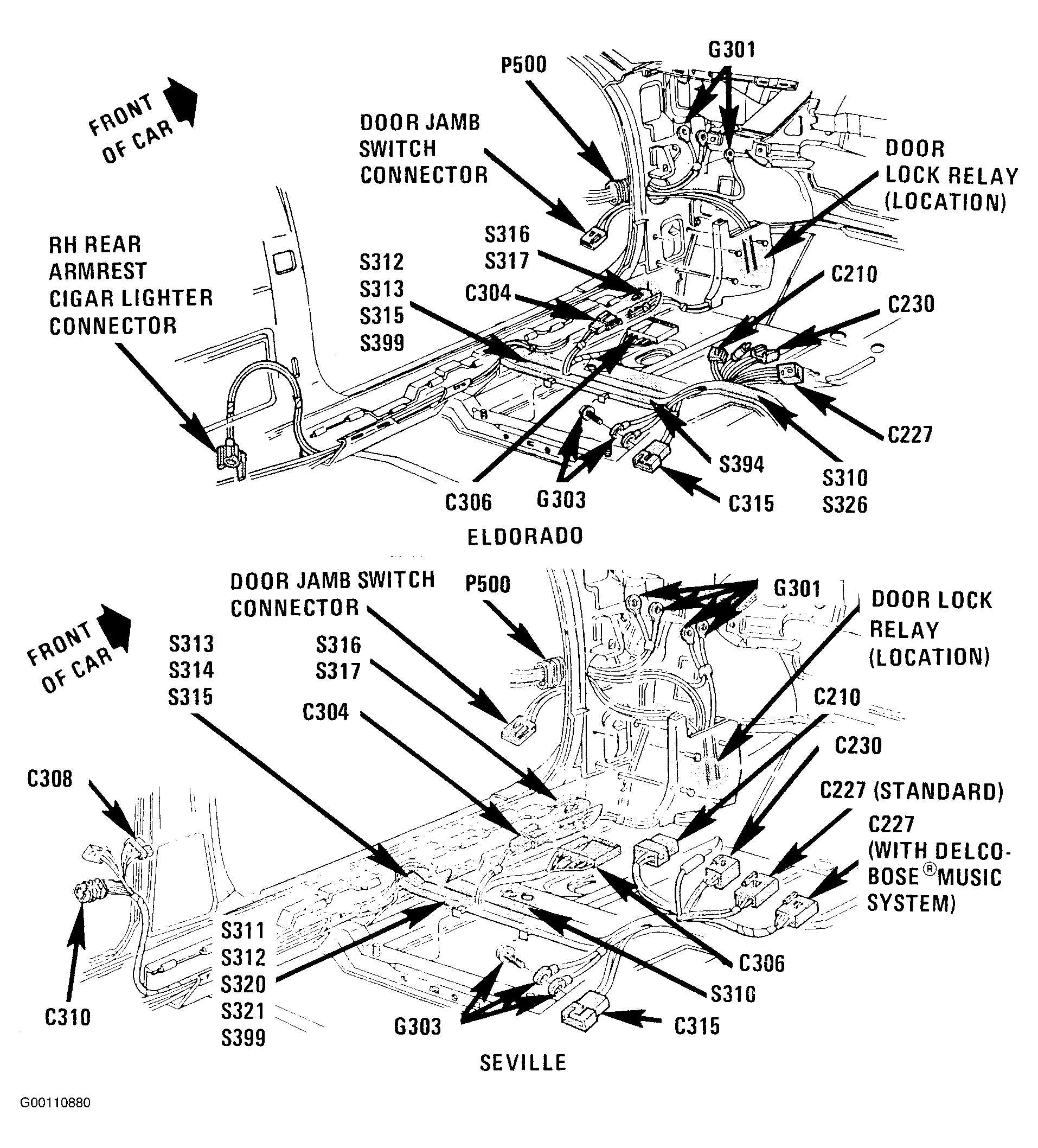

| G301 | Behind Instrument Panel, On Upper Left Hand Shroud. See Fig 4 . |
| G303 | Below Right Side Of Left Front Seat. See Fig 4 . |
| P500 | In Front Of Left Front Door, Near Left Shroud |
| P600 | In Front Of Right Front Door, Near Right Shroud. See Fig 3 . |
| S207 | On Dash Harness, Behind Right Side Of Instrument Panel, In End of Dash Harness |
| S316 | In Body Main Harness, At Left Front Door Sill. See Fig 4 . |
| S332 | In Body Main Harness, At Right Front Door Sill. See Fig 3 . |
| S336 | Lumbar And Recliner Harness, Below Left Front Seat |
| S337 | In Lumbar And Recliner Harness, Below Right Front Seat |
| S338 | In Lumbar And Recliner Harness, Below Left Front Seat |
| S339 | In Lumbar And Recliner Harness, Below Right Front Seat |
| S394 (Eldorado) | In Body Main Harness, Below Left Front Seat |
| S394 (Seville) | In Body Main Harness, Below Right Front Seat, Sixteen Inches From Right Front Seat Connectors Breakout. See Fig 3 . |
