Description & Operation: Notes

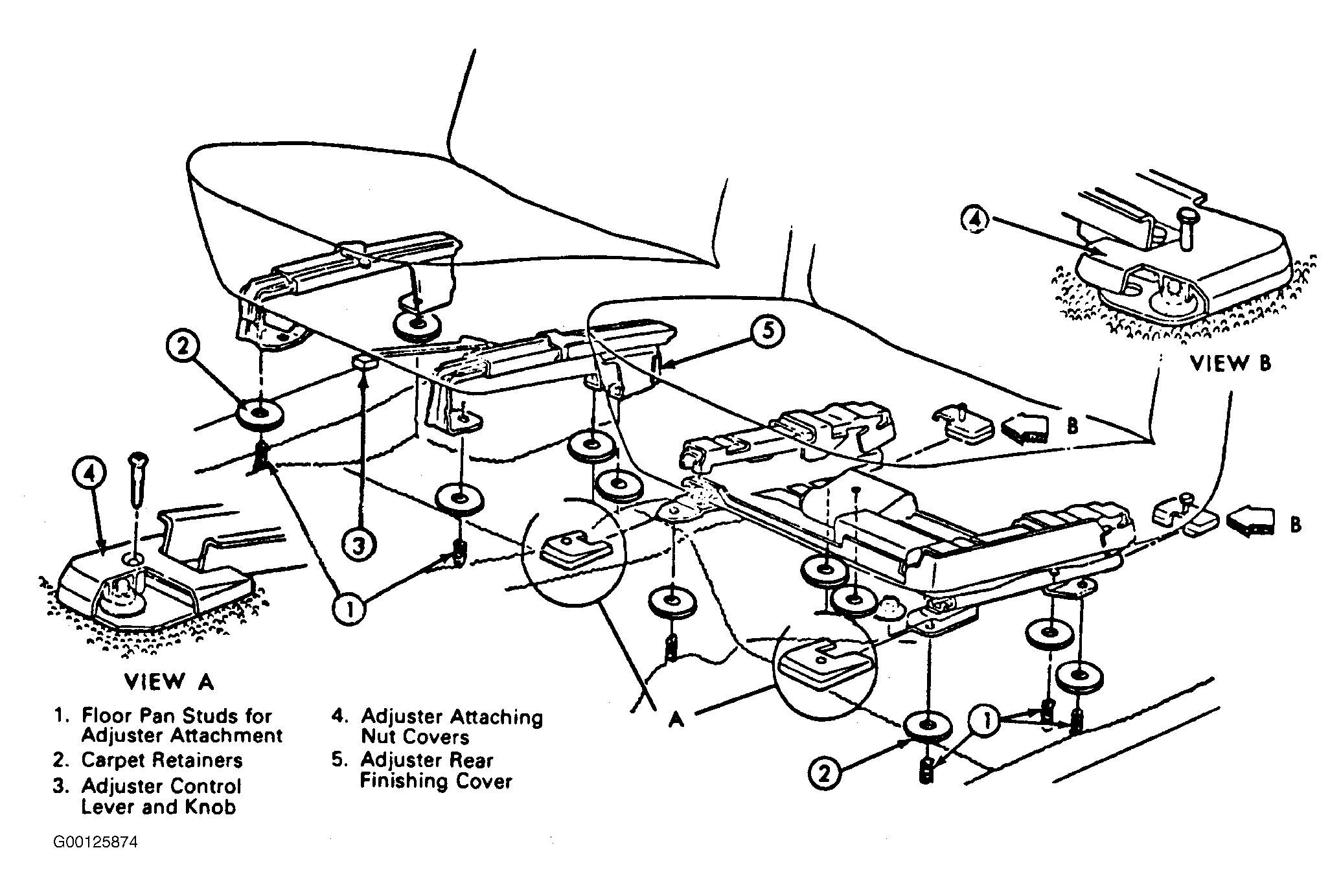

The seat assembly is secured to the floor pan, by nuts installed on floor pan anchor plate studs. See Fig 1 . The 6-way seat adjusters are powered by 3, 12-volt reversible, permanent magnet motors with built-in circuit breakers. The motors are energized by a toggle type control switch installed in the driver's door armrest or the seat bolster. The system is grounded by a wire secured to the seat frame and under one of the seat adjuster-to-floor pan attaching nuts.
