Window Regulator: Notes
WARNING:
If power window motor removal from the regulator is required. See WINDOW MOTOR
. The regulator lift arm is under tension from the counterbalance spring and can cause personal injury if the sector gear is not locked in position.Be sure to place window in full-up position and tape and tape window to door frame. Window may drop into door when motor/regulator is removed. Unless window is taped or blocked in up position, personal injury and/or window damage may result.
NOTE:
The Eldorado regulator is of the single lift arm design. The Seville front door regulator is of the dual lift arm design. The rear door of the Seville, incorporates a tape drive regulator.

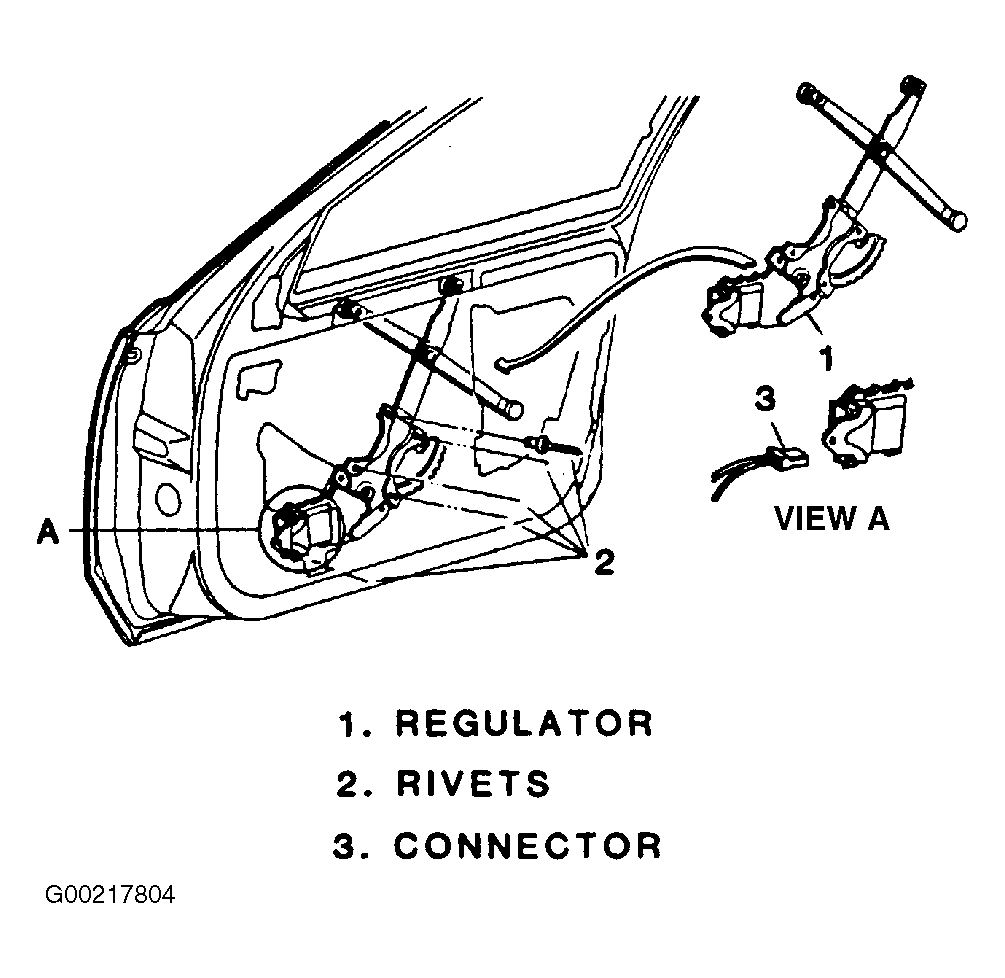

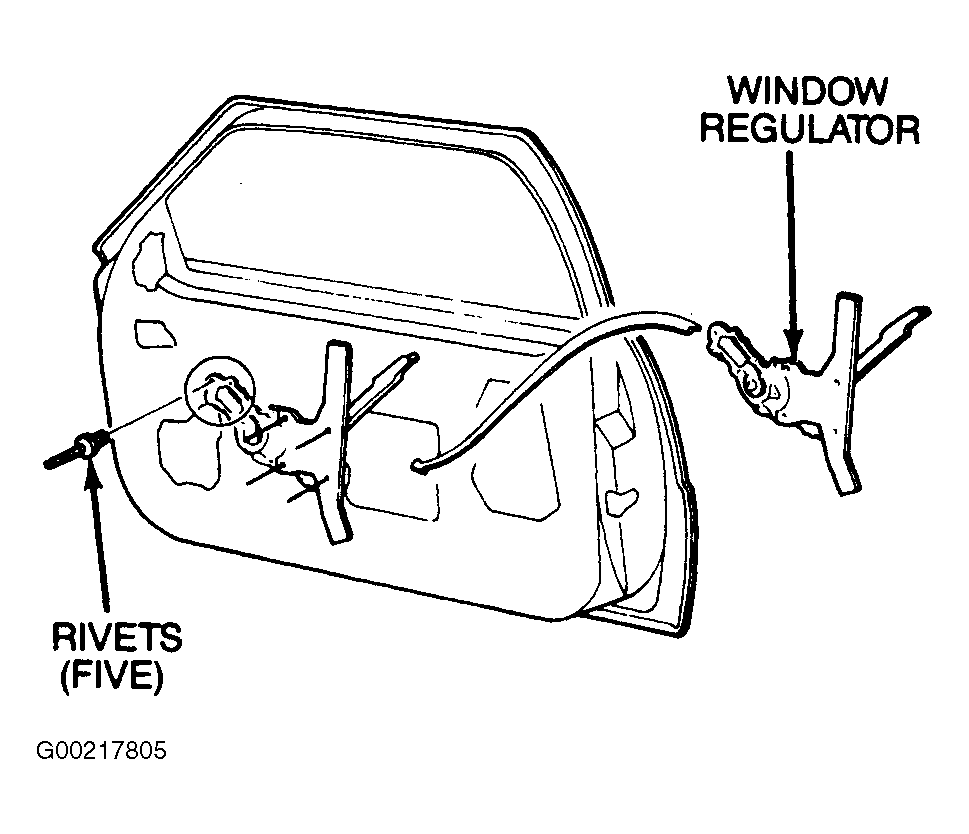

Use procedure below for both the Eldorado and Seville. For aid in removal and installation, refer to illustrations. See Figure and Figure .
