Trouble Code B410 - Charging System Circuit: Notes

Fig 1: Trouble Code B410 Wiring Diagram (1 of 2)
G90D04580Courtesy of GENERAL MOTORS CORP.

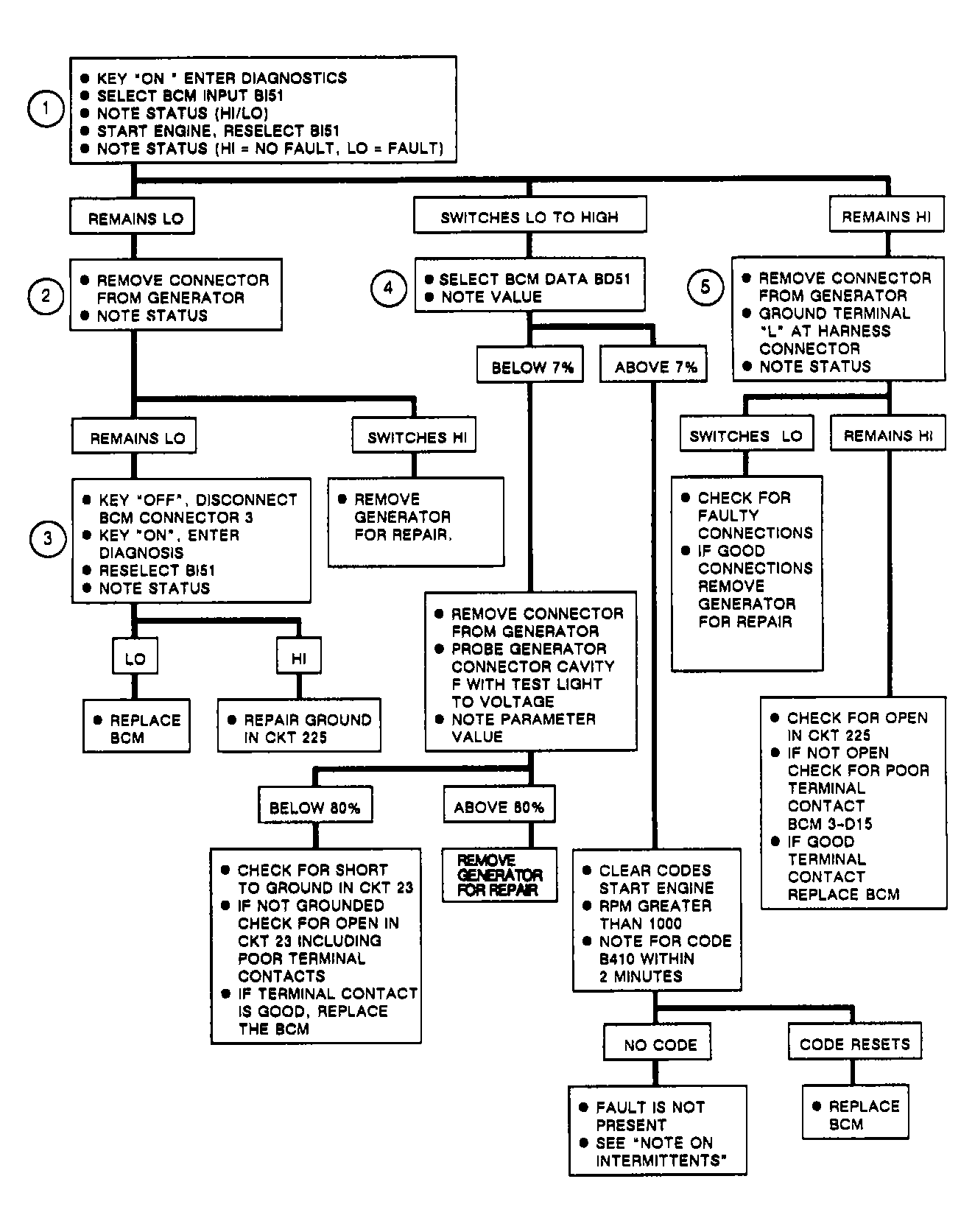

Fig 2: Trouble Code B410 Flow Chart (2 of 2)
G90C09285Courtesy of GENERAL MOTORS CORP.
