Note On Intermittents

If an intermittent condition exists, perform battery and charging system checks to assure proper operation. Also perform a comprehensive visual check of generator wiring and connection.

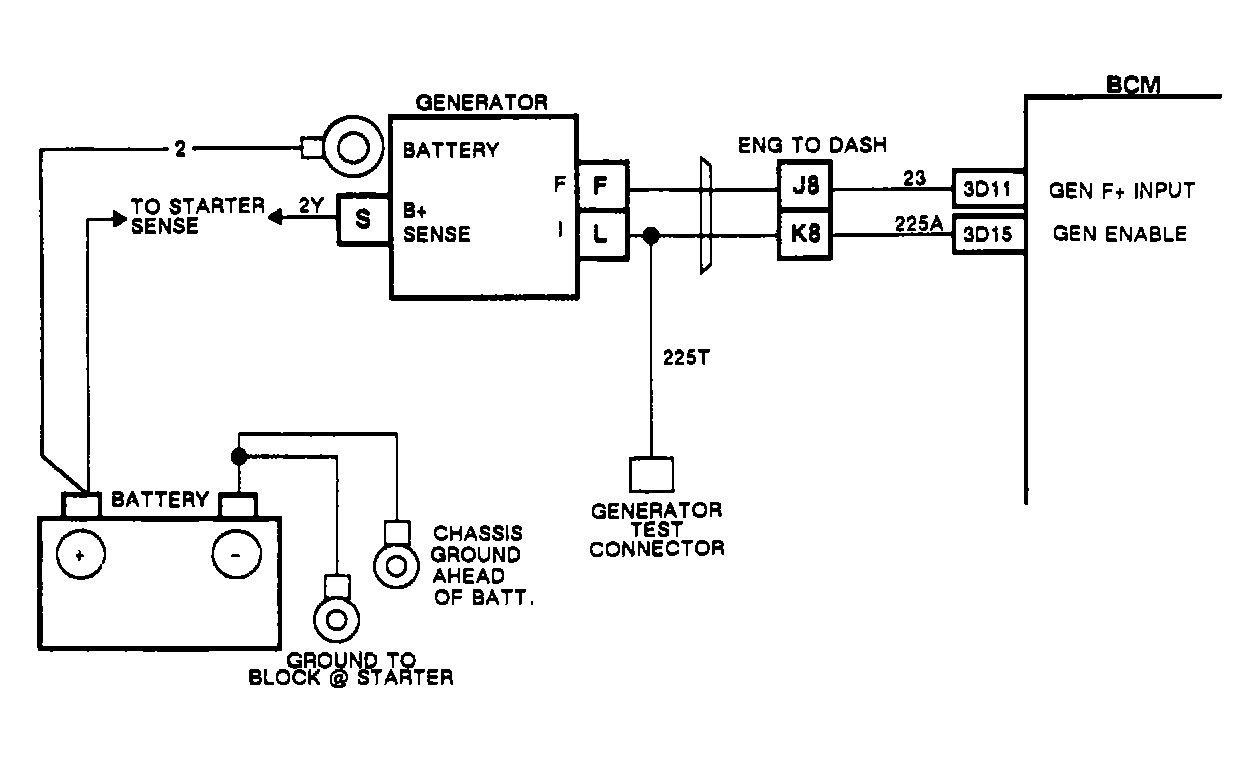

Fig 1: BCM Code B410, Schematic, Charging System Circuit

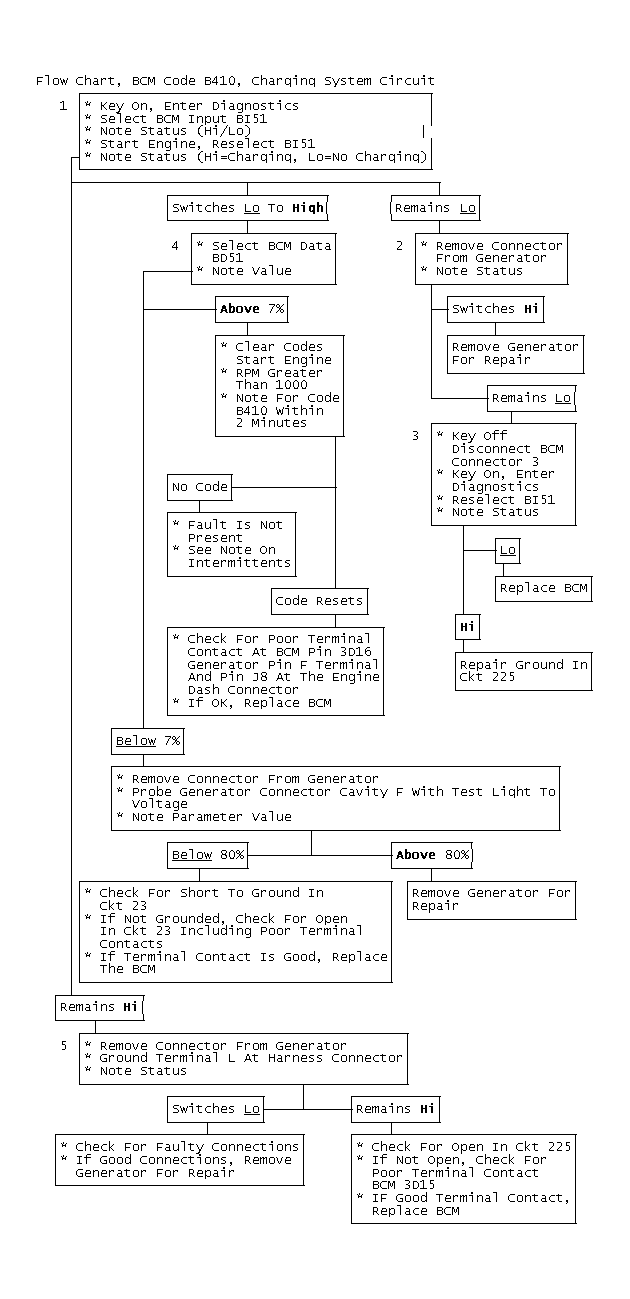

Fig 2: Flow Chart, BCM Code B410, Charging System Circuit
