Note On Intermittents

If an intermittent Code EO61 is being set, manipulate wiring while in output function ED08. Listen solenoid to cycle or stop cycling. This must be done slowly as function cycles solenoid on and off every 3 seconds.

Fig 1: PCM Code EO61, Schematic, Cruise Control Vent Solenoid Circuit

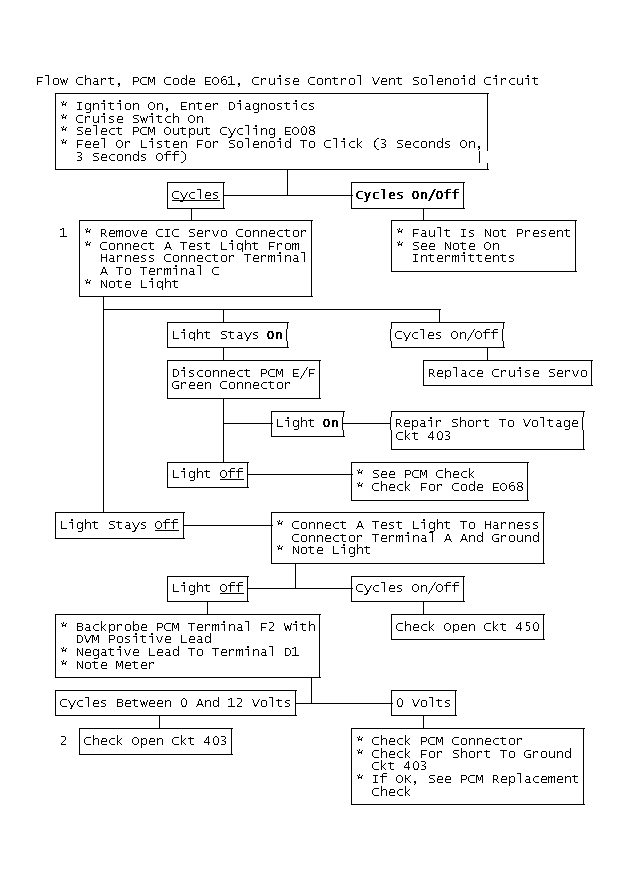

Fig 2: Flow Chart, PCM Code EO61, Cruise Control Vent Solenoid Circuit
