Dimmer Switch

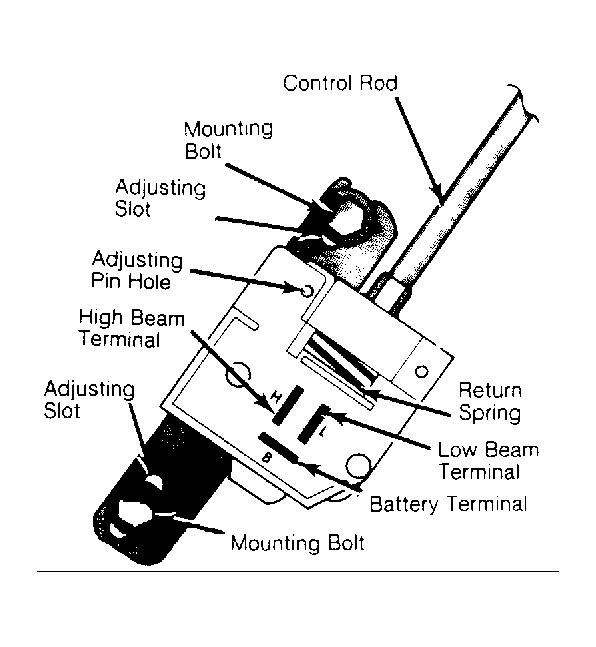

Depress dimmer switch until a 3/32" drill bit can be inserted into adjusting pin hole. See Fig 1. Connect dimmer switch to ignition switch but do not tighten screws. Connect dimmer switch rod to dimmer switch. Adjust dimmer switch by sliding switch up or down until a click is heard when the multi-function lever is pulled to activate high and low beam. Tighten screws to 35 INCH lbs. (4 N.m). Remove drill bit.
