Steering Column Collapse Measurements
STEERING COLUMN COLLAPSE MEASUREMENTS

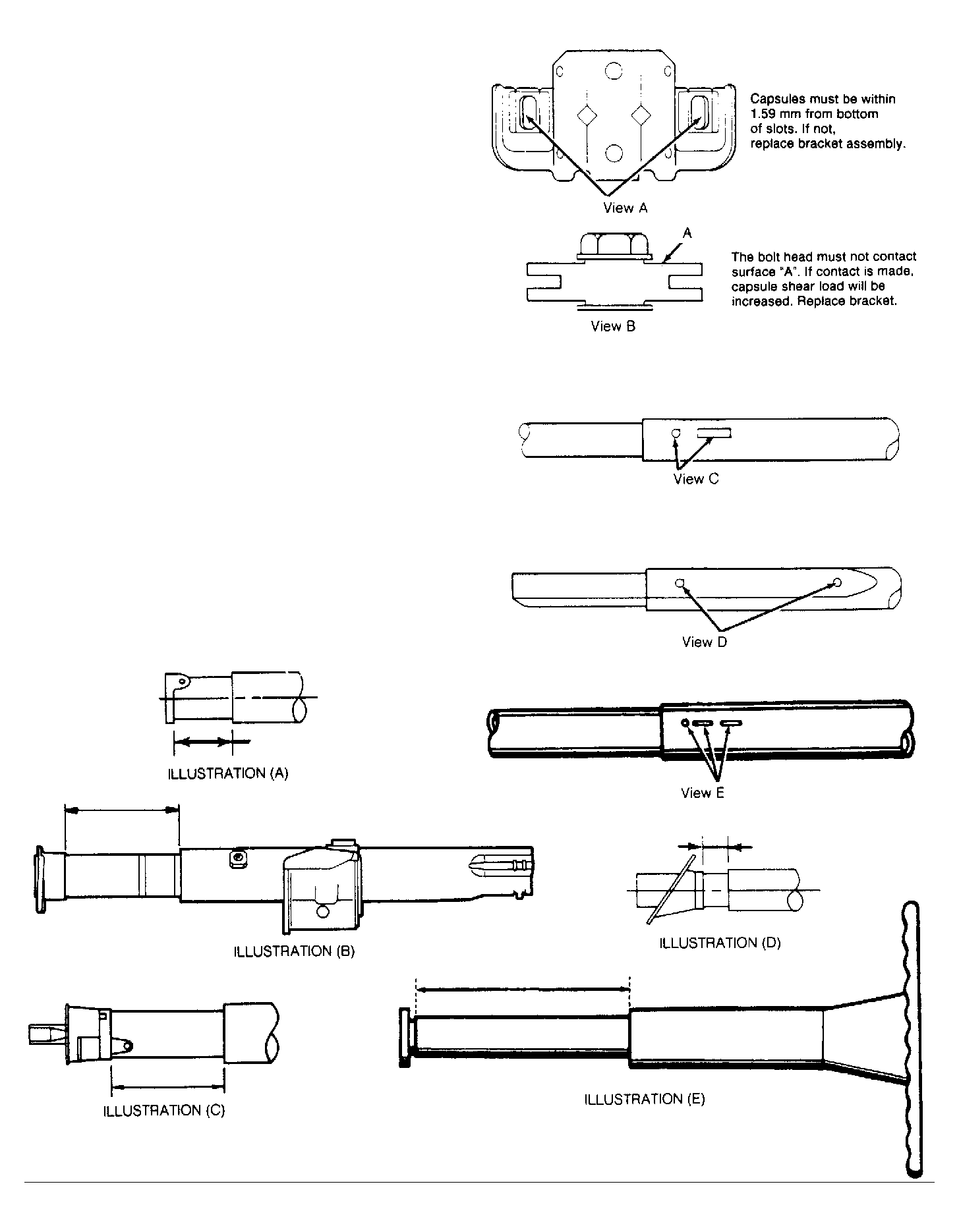

| Body |
Illus. |
In. (mm) |
| Standard Column |
| A Body |
(C) |
4 1/2 (115) |
| B Body |
(D) |
7 11/64 (182) |
| C Body |
(C) |
4 13/16 (123) |
| F Body |
(D) |
7 15/64 (184) |
| H Body |
(C) |
5 25/64-5 15/32 (137-139) |
| J Body |
(E) |
5-5 3/32 (127-129) |
| L Body |
(D) |
3 9/64 (92.5) |
| N Body Column Shift |
(E) |
5 5/32 (127-129) |
| N Body Floor Shift |
(E) |
5 5/32 (127-129) |
| W Body |
(B) |
4 1/16 (103.2) |
| Tilt Column |
| A Body |
(C) |
4 15/32-4 17/32 (114-116) |
| B Body |
(D) |
7 3/16 (183) |
| C Body (Park Avenue) |
(A) |
4 13/64 (123) |
| All Other C Bodies |
(C) |
5 1/8 (130) |
| E Body (Eldorado) |
(C) |
5 15/64 (133) |
| E Body (Toronado) Column Shift |
(C) |
4 13/16 (123) |
| E Body (Toronado) Floor Shift |
(C) |
4 13/16 (123) |
| E Body Riviera |
(C) |
5 19/64 (134.6) |
| F Body |
(D) |
7 15/64-5 15/32 (137-139) |
| H Body |
(C) |
5 25/64 (184.6) |
| J Body |
(E) |
5 1/32-5 1/8 (128-130) |
| K Body |
(C) |
5 15/64 (133) |
| L Body |
(D) |
3 9/64 (92.5) |
| N Body (Column Shift) |
(E) |
5 1/32-5 1/8 (128-130) |
| N Body (Floor Shift) |
(E) |
5 1/32-5 1/8 (128-130) |
| W Body |
(B) |
4 1/16 (103.2) |
| Y Body |
(D) |
5 43/64 (144) |
|
