Idle/Throttle Speed Control Unit: Locations

RH Rear Of Engine Compartment.:




Top RH Side Of Engine, Front Of Throttle Body

Applicable to: 1992 Eldorado/Seville

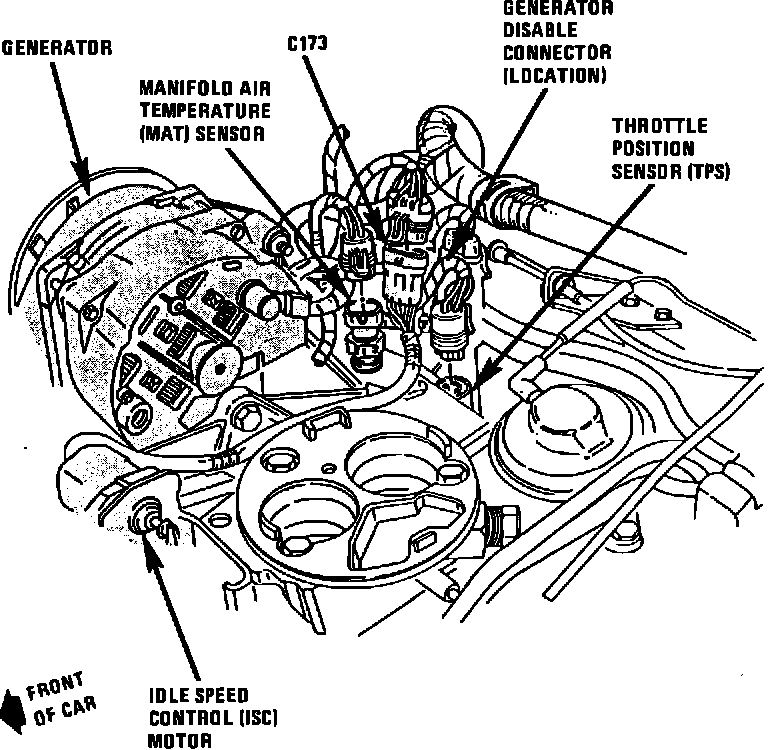

Top RH Side Of Engine.:




Top RH Side Of Engine, Front Of Throttle Body

Applicable to: 1991 Eldorado/Seville
