Test Description

This test detects the open and close of the nose switch of the Idle Speed Control (ISC) at terminal A7 of the PCM.

NOTE: The following step numbers refer to circled numbers on diagnostic chart. See Fig 1 . For circuit identification, see Figure .

HI indicate that throttle nose switch is open. LO indicates that the switch is closed.
The throttle body must be removed to disconnect the ISC jumper from the ISC. An Ohmmeter should be used to inspect the jumper for opens and shorts. The ISC throttle switch can also be checked with an Ohmmeter for switch operation.

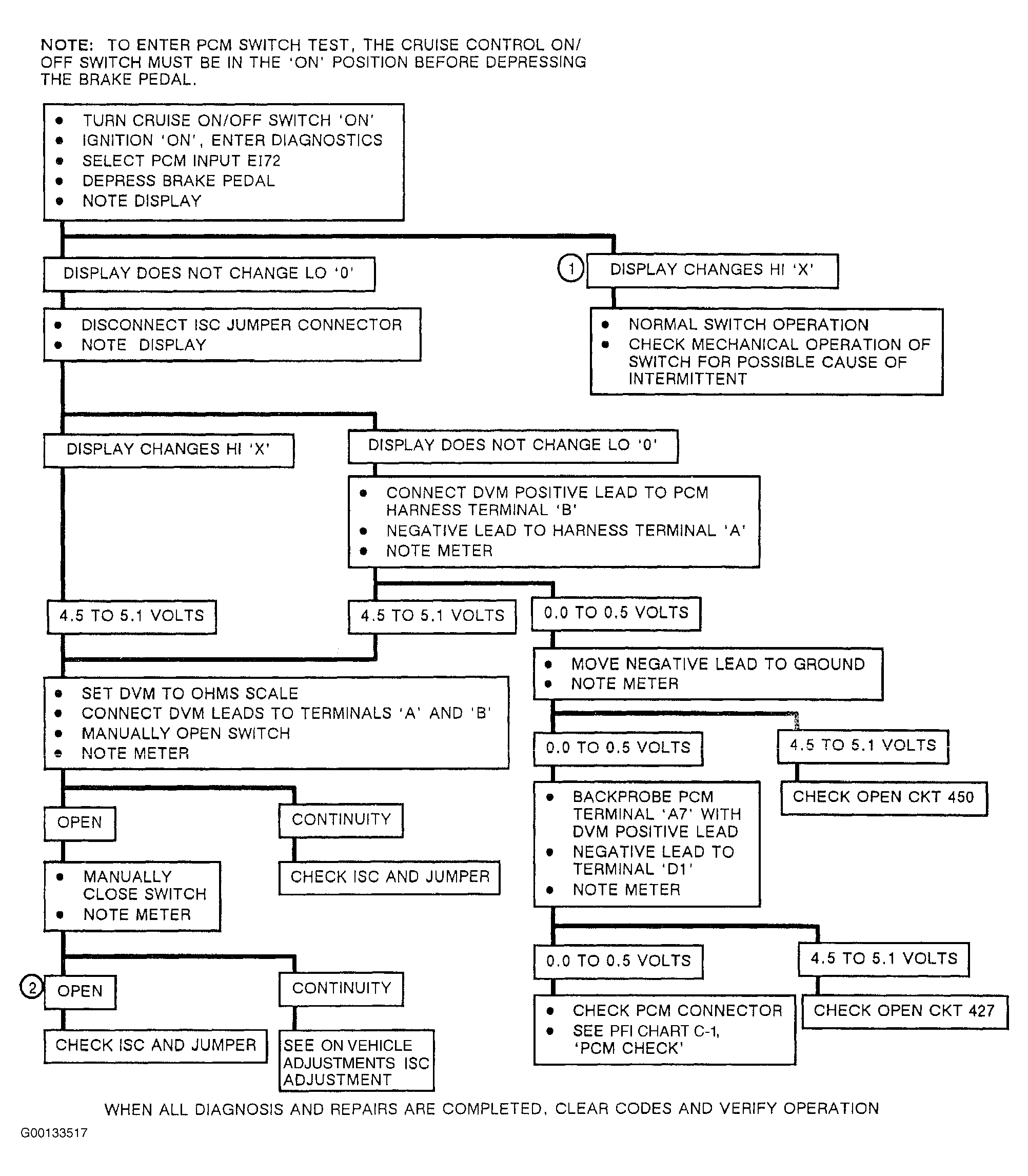

Fig 1: PCM Input EI72: ISC Throttle Switch Flow Chart
