Note On Intermittents

With engine running, manipulate O2 sensor, PCM wiring and connectors while observing PCM parameter P.1.4. If fault is induced, P.1.4 will be greater than .63 volt and ECON status light will go on. Manipulate circuit No. 413 ground to engine, and look for a loose ground eyelet or ground eyelet installed at wrong location. If lean engine operation is suspected, perform PFI SYSTEM CHECK.

Fig 1: PCM Code E45 Schematic, Oxygen (O2) Sensor Rich Exhaust Signal

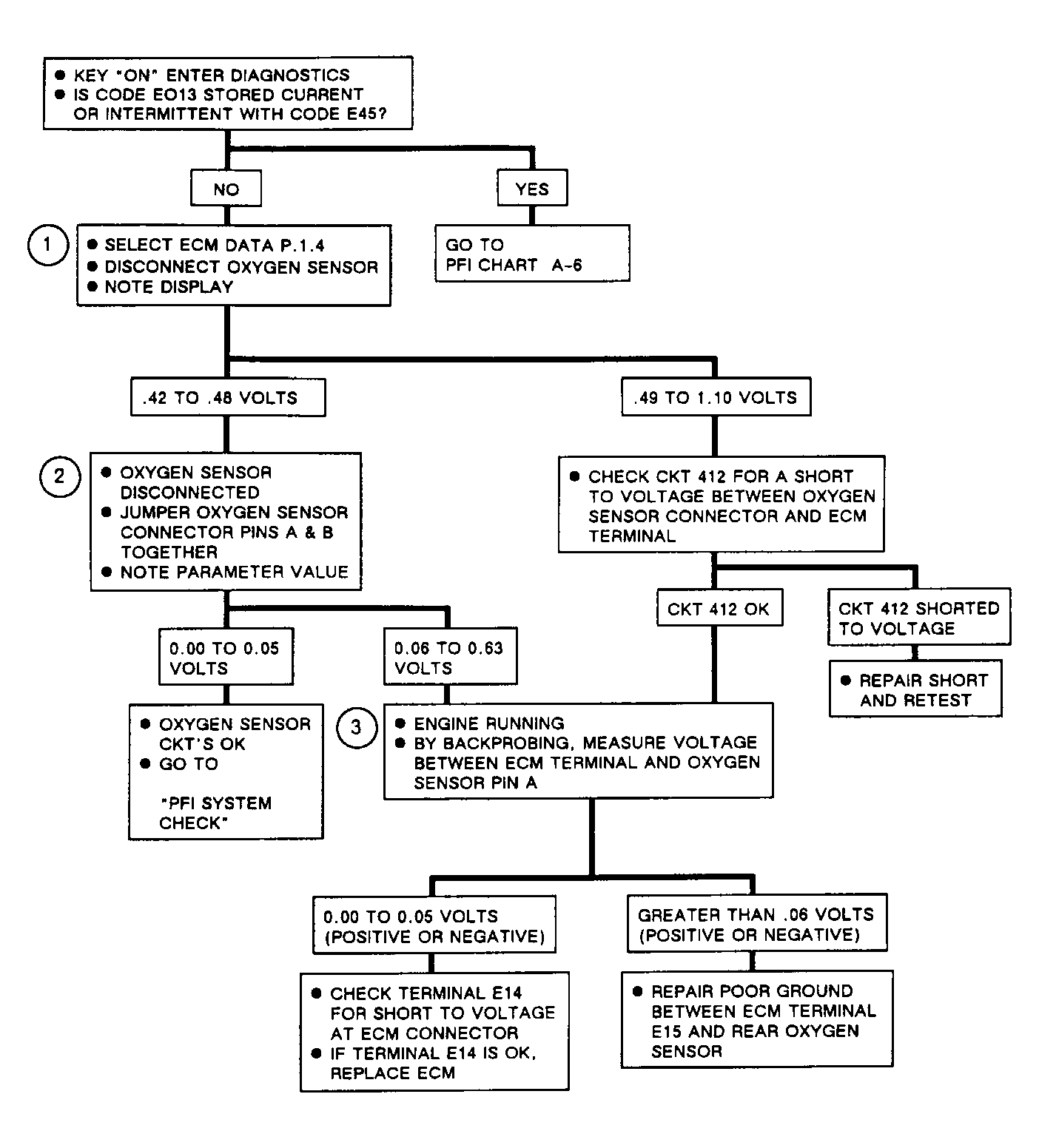

Fig 2: PCM Code E45, Flow Chart, Oxygen (O2) Sensor Rich Exhaust Signal

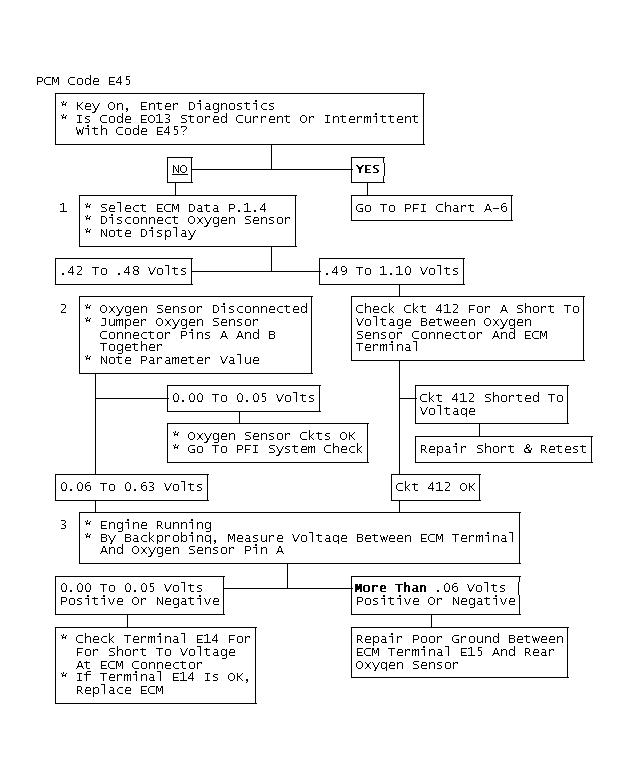

Fig 3: PCM Code E45
