Note On Intermittent

Check terminal crimp to wire and ensure terminals are properly seated in connectors.

5-volt reference can be tested by connecting jumpers between harness connector and MAP sensor terminal. Connect DVOM positive lead to jumper "C" and negative lead to jumper "A". Turn ignition on and apply vacuum to sensor. Tap lightly on sensor. Voltage reading should remain 4.6-5.1 volts.

Fig 1: PCM Code E71, Schematic, Intermittent MAP Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 2: PCM Code E71, Weather Effect Graph, Intermittent MAP Sens

Courtesy of GENERAL MOTORS CORP.

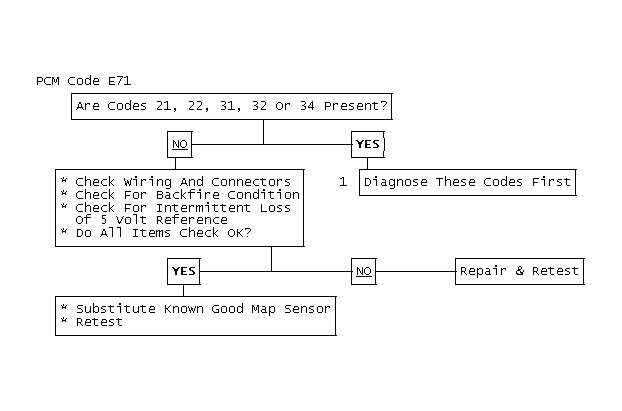

Fig 3: PCM Code E71, Flow Chart, Intermittent MAP Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 4: PCM Code E71
