Exiting PCM Switch Test Mode

To exit PCM switch test mode at anytime and return to ".7.0", complete procedures for clearing PCM or BCM trouble codes. See CLEARING TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM.

Fig 1: PCM Harness Connector 2-A/B (Black)

Courtesy of GENERAL MOTORS

Fig 2: PCM Harness Connector 1-C/D (Black)

Courtesy of GENERAL MOTORS

Fig 3: PCM Harness Connector 3-E/F (Green)

Courtesy of GENERAL MOTORS

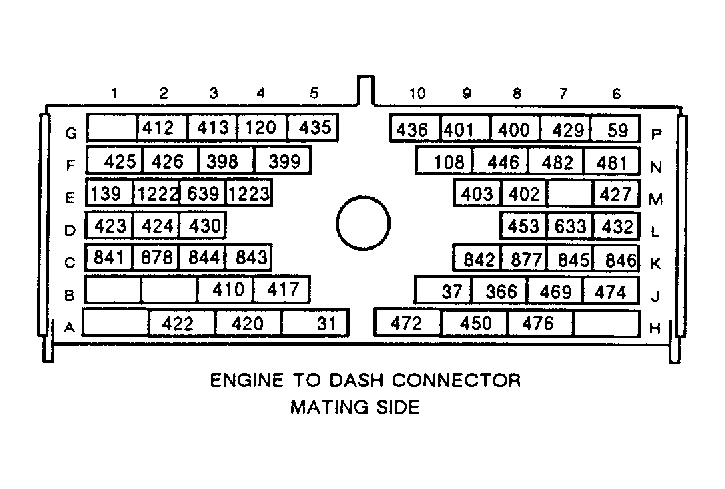

Fig 4: Engine to Dash Connector Mating Side

Courtesy of GENERAL MOTORS
