Note On Intermittents

Manipulate PCM connector, 56-pin engine-to-dash connector, servo connectors and affected wiring. Note display for rapid change in servo position. Check circuit No. 403 for intermittent short to power.

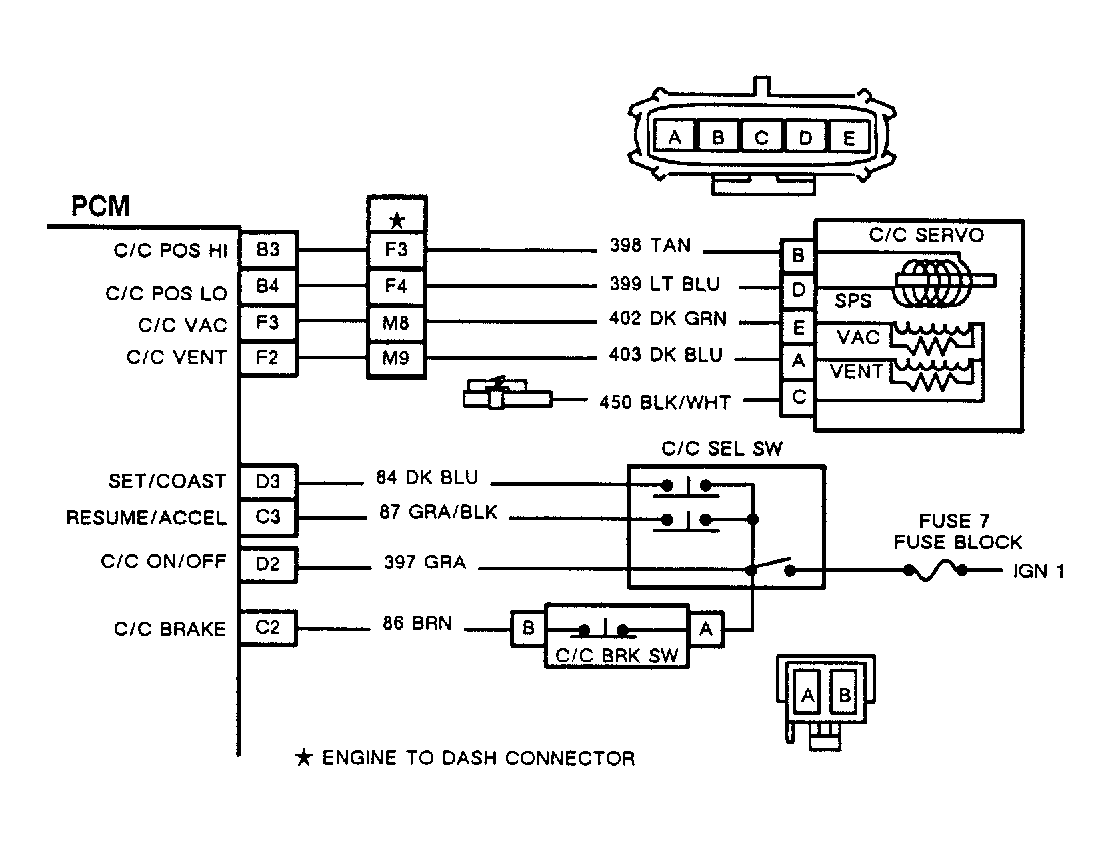

Fig 1: PCM Code E68, Schematic, Cruise Control Command Problem

Courtesy of GENERAL MOTORS CORP.

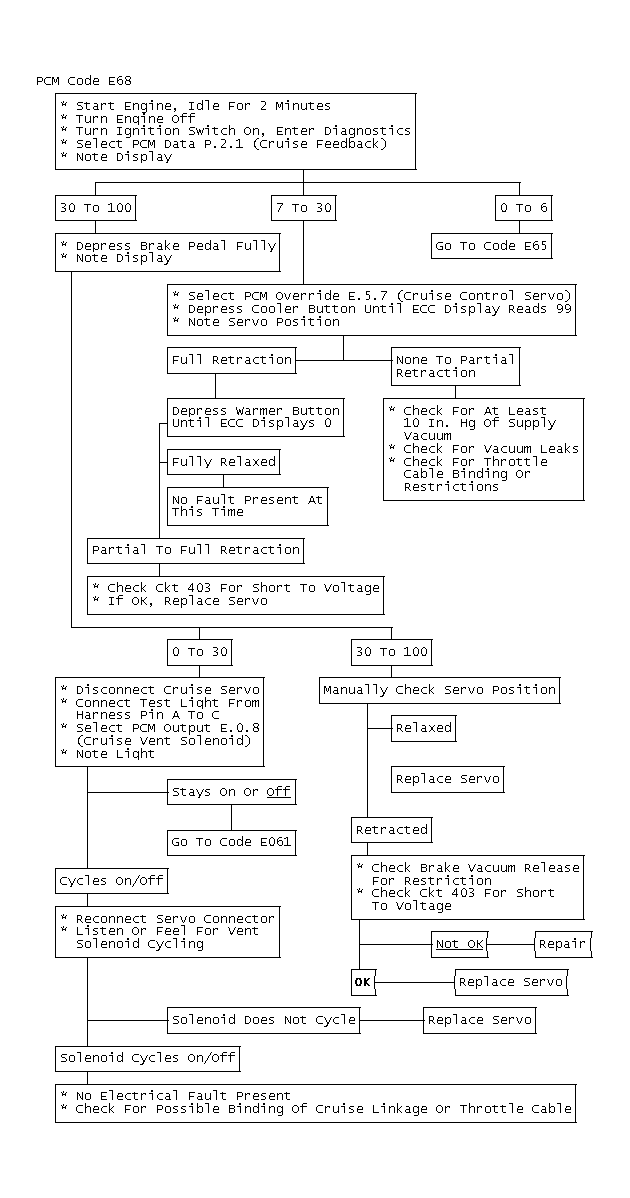

Fig 2: PCM Code E68, Flow Chart, Cruise Control Command Problem

Courtesy of GENERAL MOTORS CORP.

Fig 3: PCM Code E68
