Note On Intermittents

If an intermittent PCM Code E061 is being set, slowly manipulate wiring while in output function EO08. Listen for solenoid to cycle or stop cycling. Function cycles solenoid on and off every 3 seconds.

Fig 1: PCM Code E061, Schematic, Cruise Control Vent Solenoid Circuit

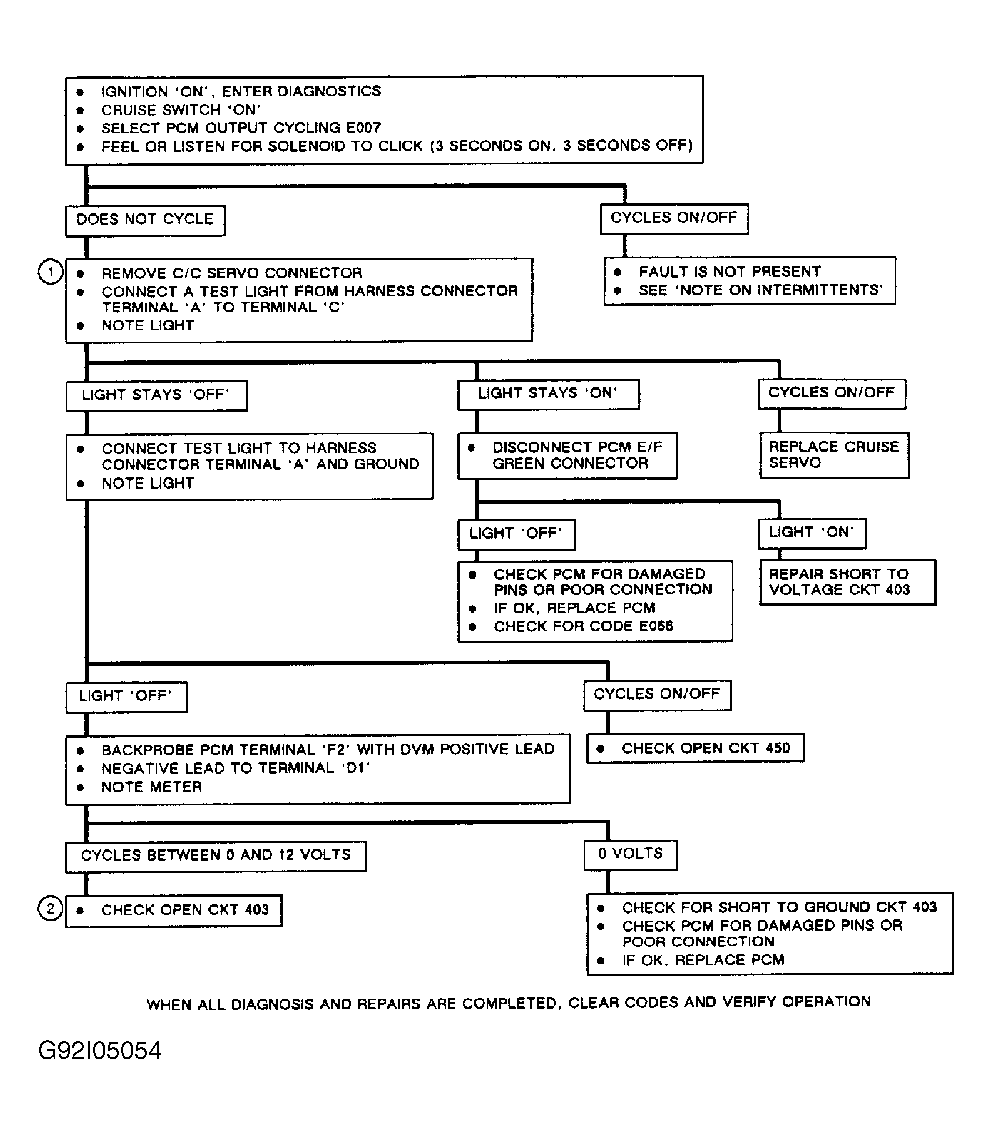

Fig 2: PCM Code E061, Flow Chart, Cruise Control Vent Solenoid Circuit

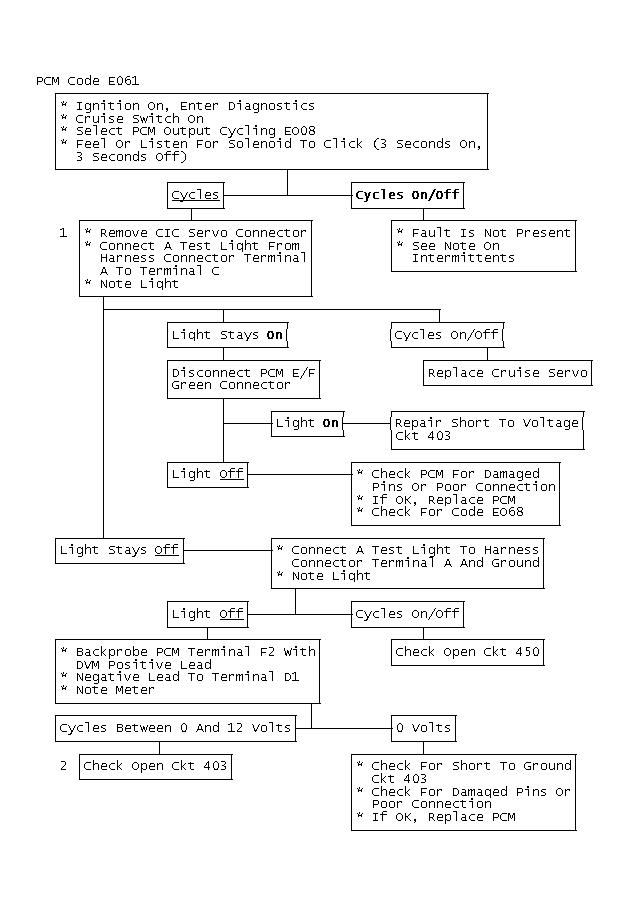

Fig 3: PCM Code E061
