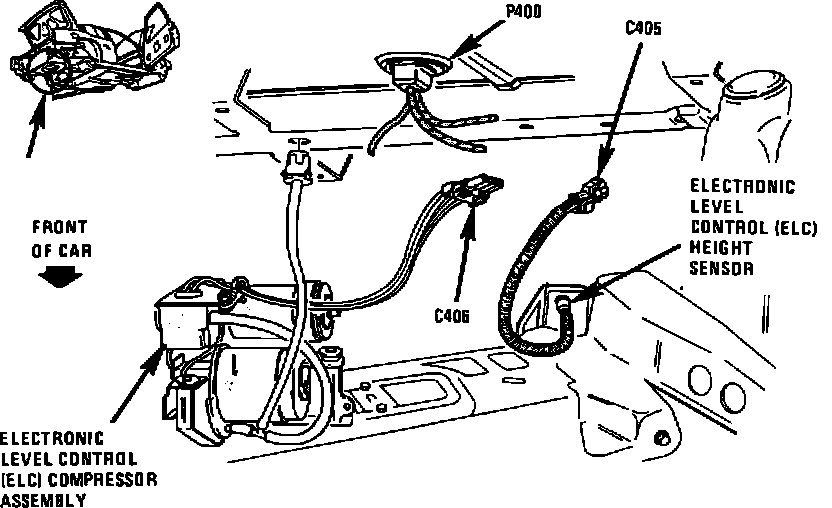

Electronic Level Control Compressor

Rear Suspension Support:




Below Rear Of Vehicle, On Rear Suspension Support

Applicable to: 1992 Eldorado/Seville
