HVAC Power Module

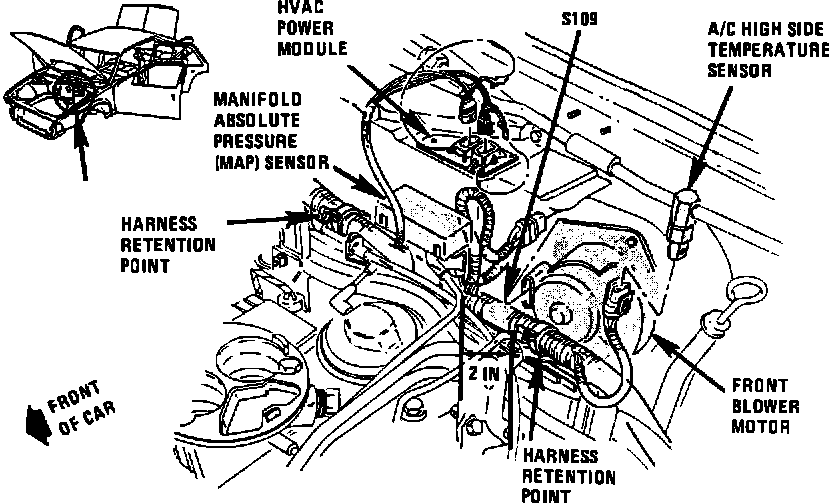

RH Rear Of Engine Compartment.:

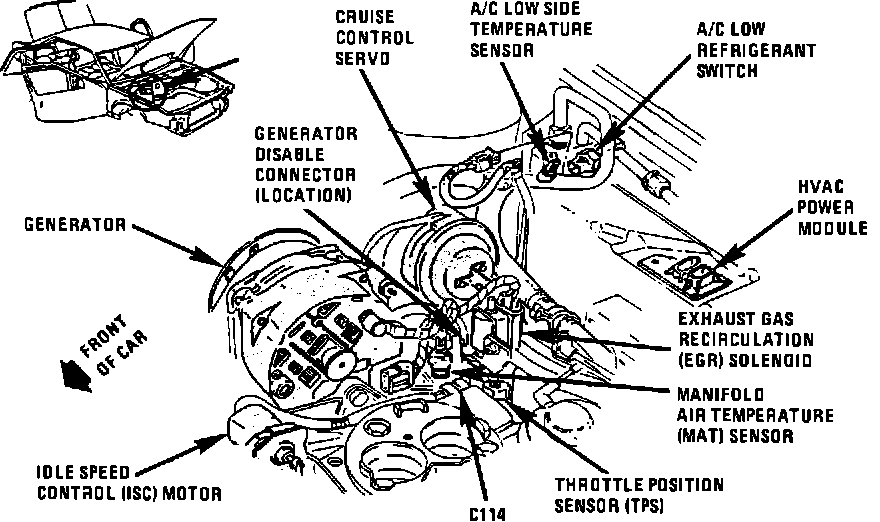

LH Rear Of Engine Compartment.:





Center Rear Of Engine Compartment, On Cowl

Applicable to: 1992 Eldorado/Seville
