Coolant Temperature Sensor/Switch (For Computer): Service and Repair

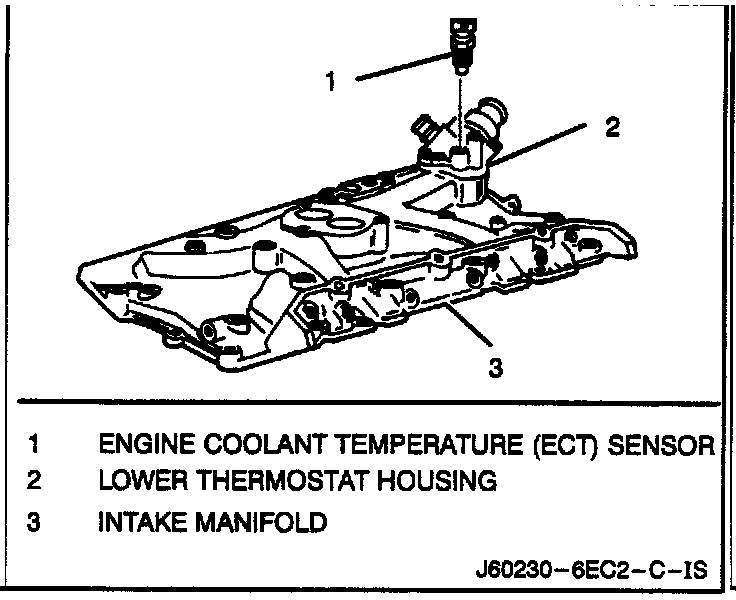

Coolant Sensor Service:

REMOVE OR CONNECT
- Partially drain cooling system.
- Electrical connector.
- Carefully back out sensor.

INSTALL OR CONNECT
- Sensor in engine. Torque to 20 Nm (15 ft lbs).
- Electrical connector.
- Refill coolant system.
