System Specifications

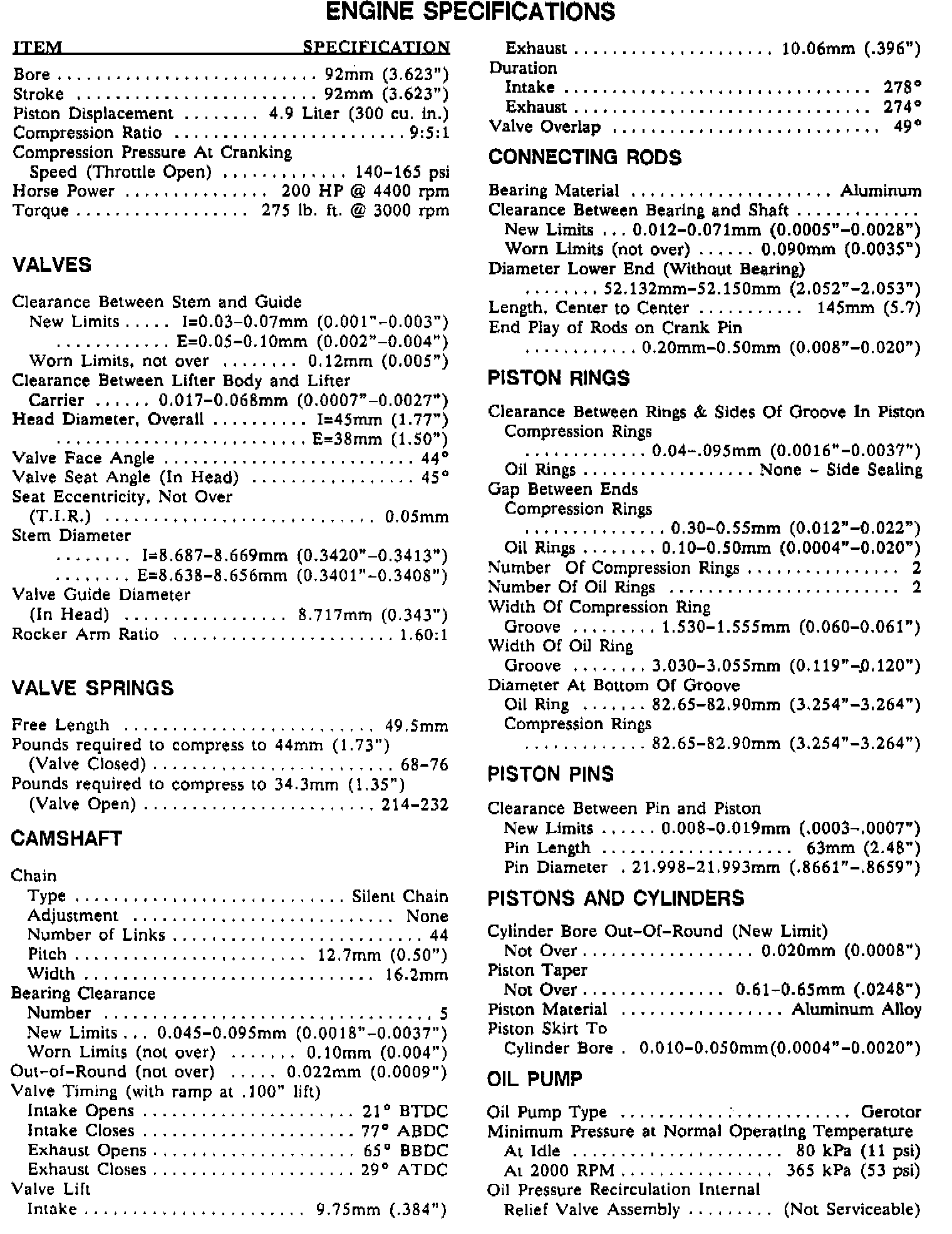

Engine Specifications:

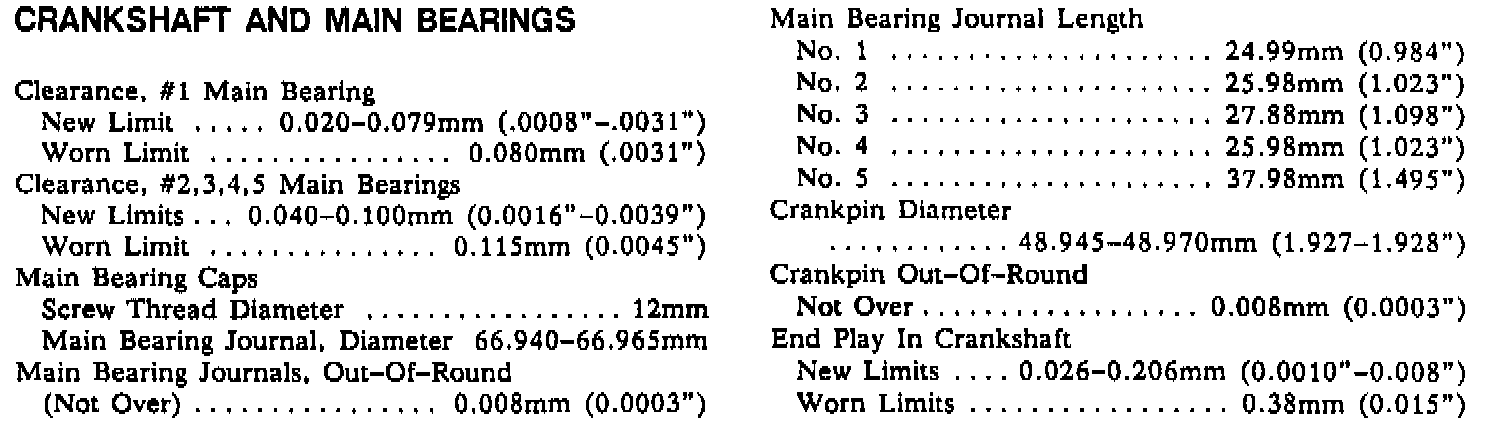

Engine Specifications (continued):

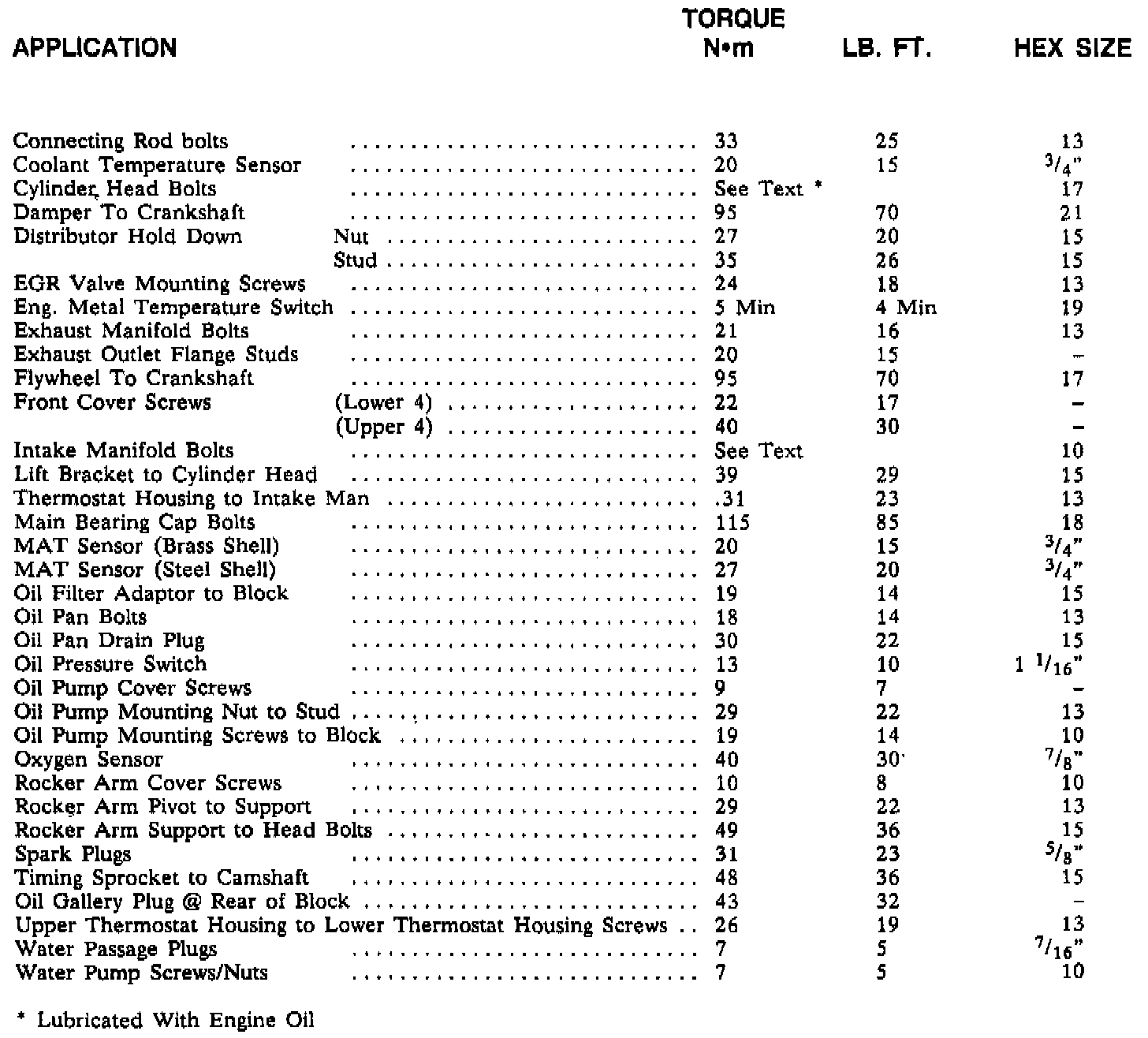

Torque Specifications:

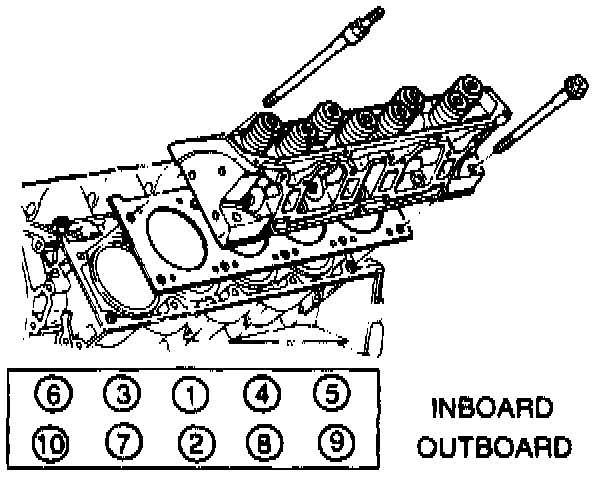

Cylinder Head Sequence:

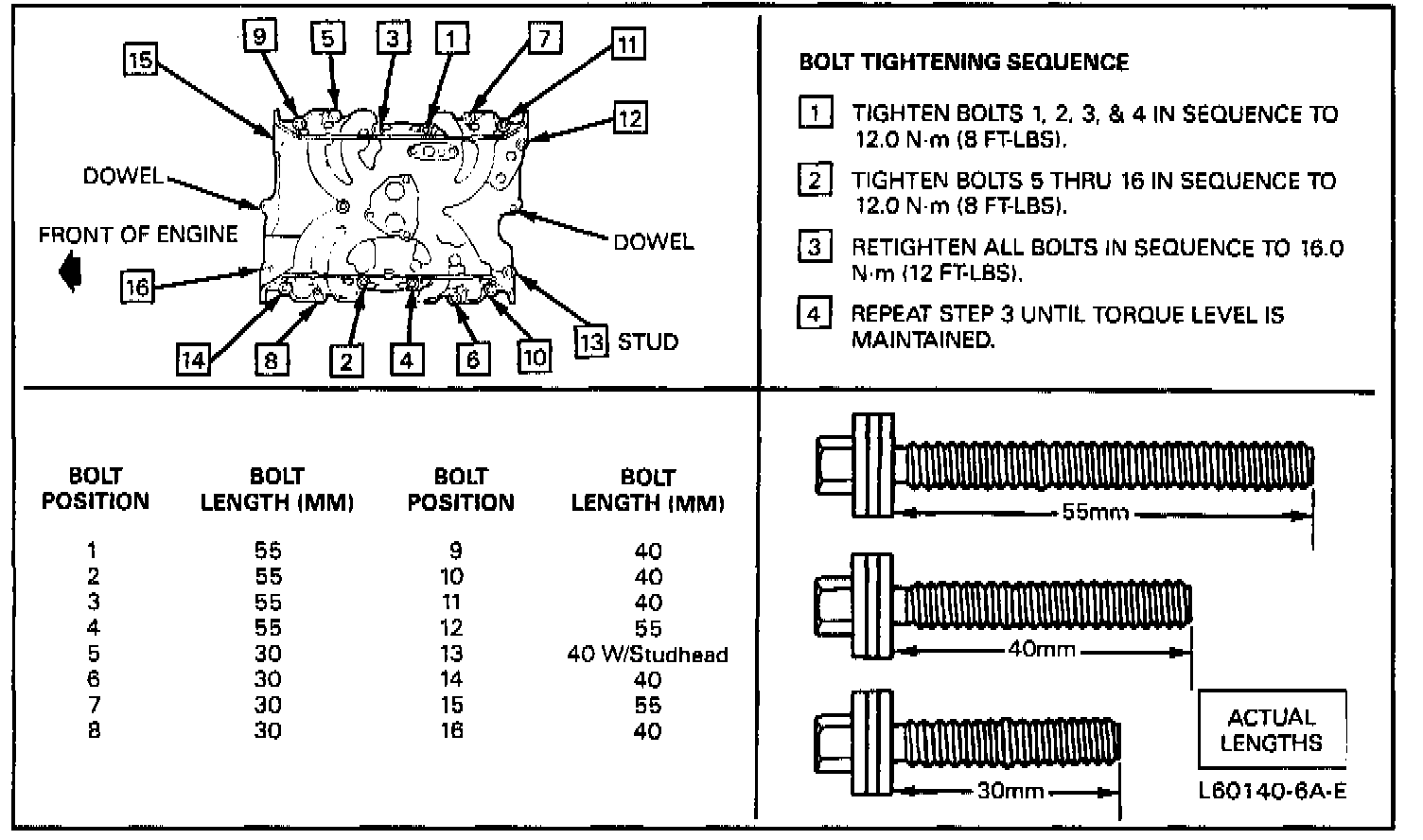

Intake Manifold Sequence:
