Test B: Power Mirror Switch Continuity Test
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test B: Power Mirror Switch Continuity Test

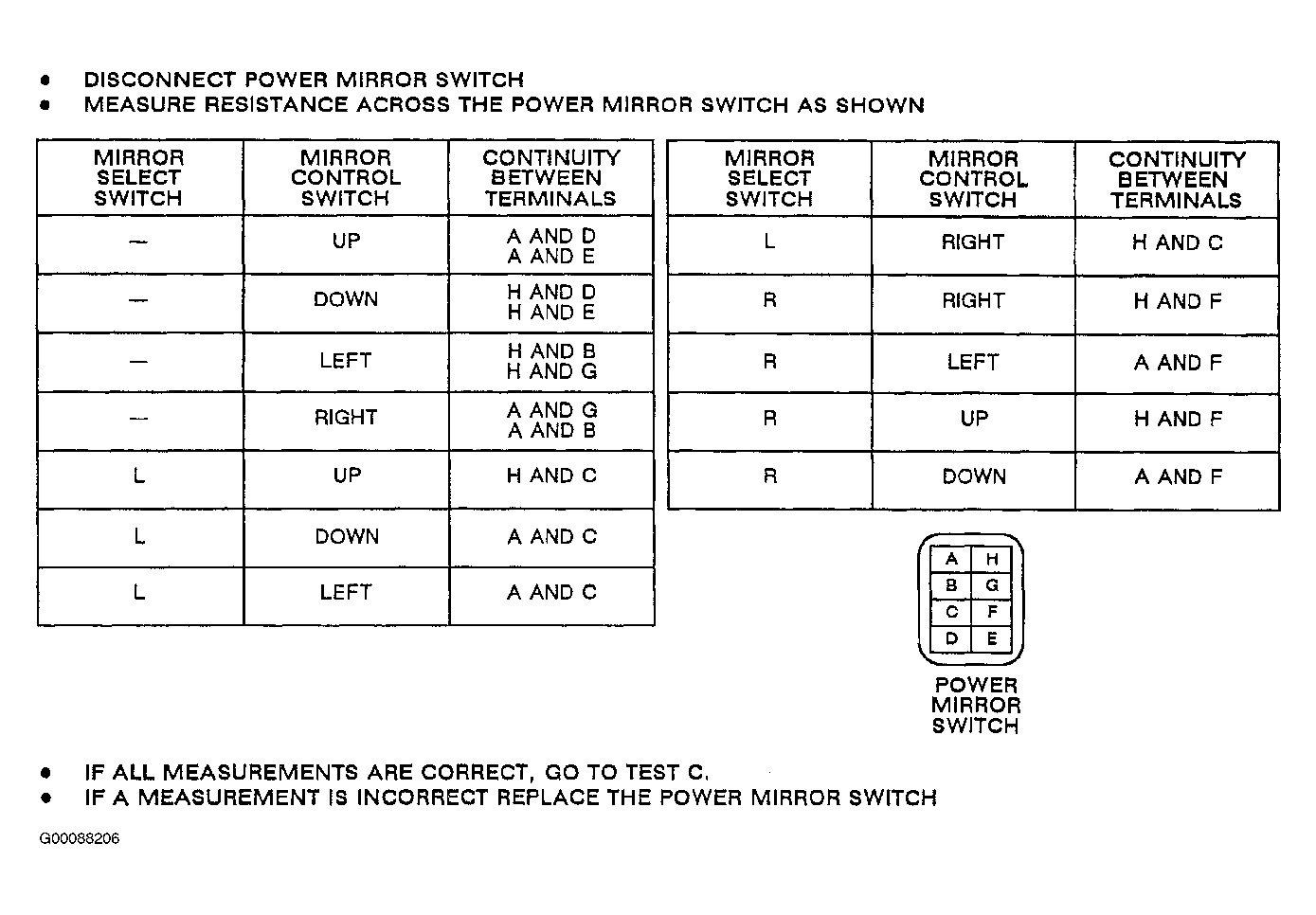

Fig 1: Power Mirror Switch Continuity Test
Courtesy of GENERAL MOTORS CORP.
