Memory Seat Module: Removal

  1. Remove seat assembly. See SEAT ASSEMBLY  .
  2. Remove screws retaining module to seat assembly.
  3. Disconnect electrical connectors.

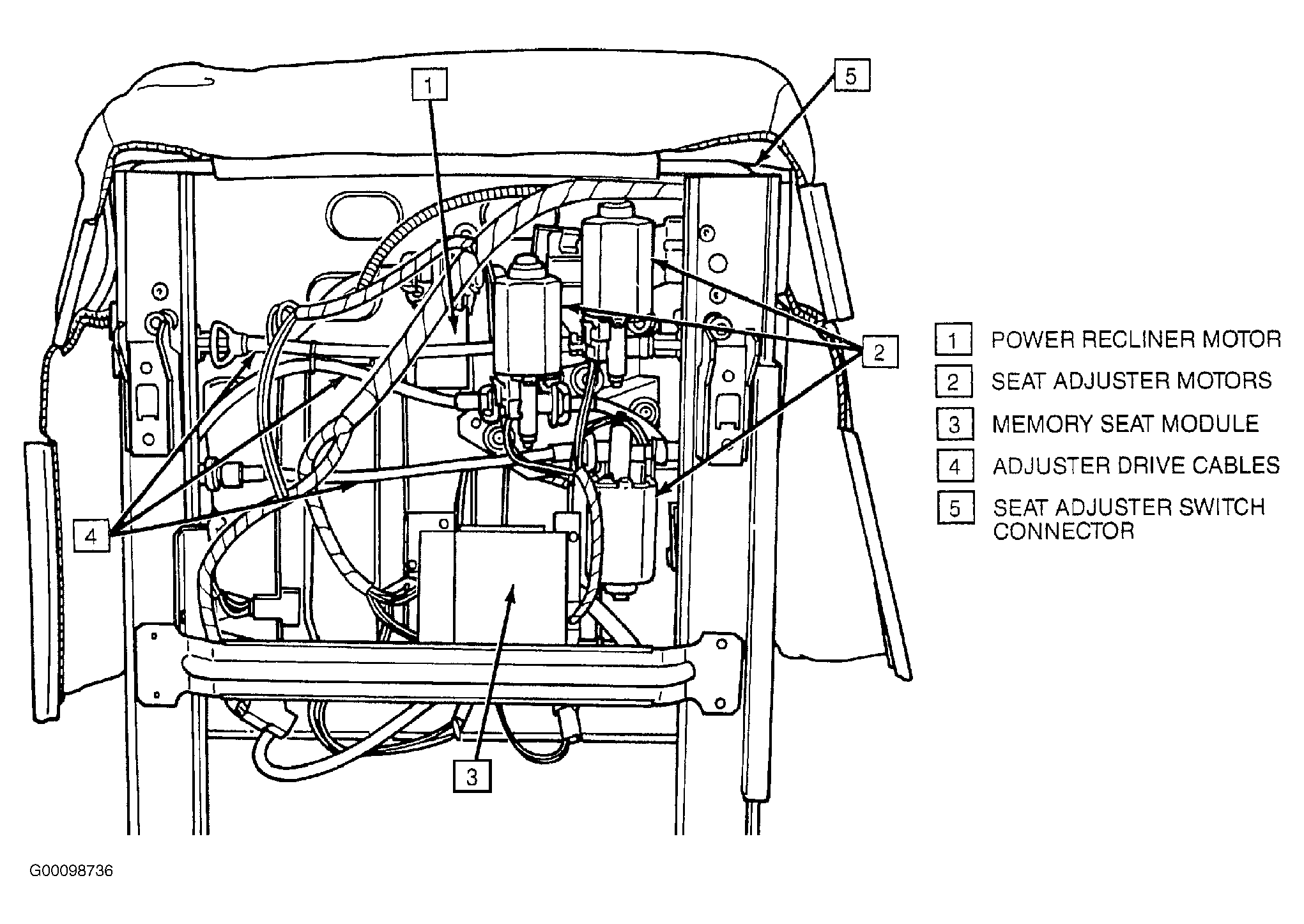

  4. Remove memory seat module (3). See Figure .
