Test F: Position Sensor Isolation

To perform position sensor isolation test, refer to illustration. See Fig 1 .

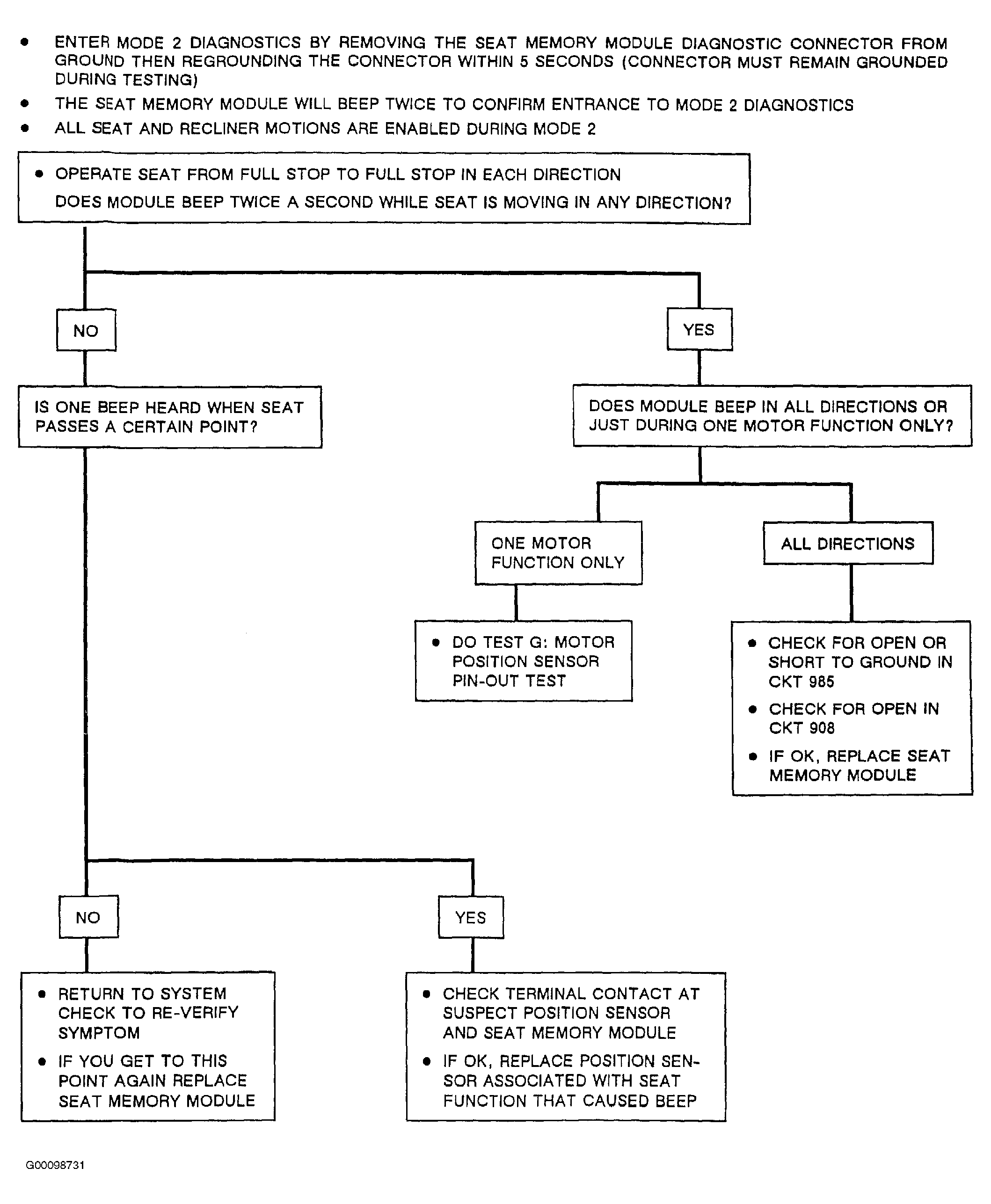

Fig 1: Position Sensor Isolation Test Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
