Connector Identification

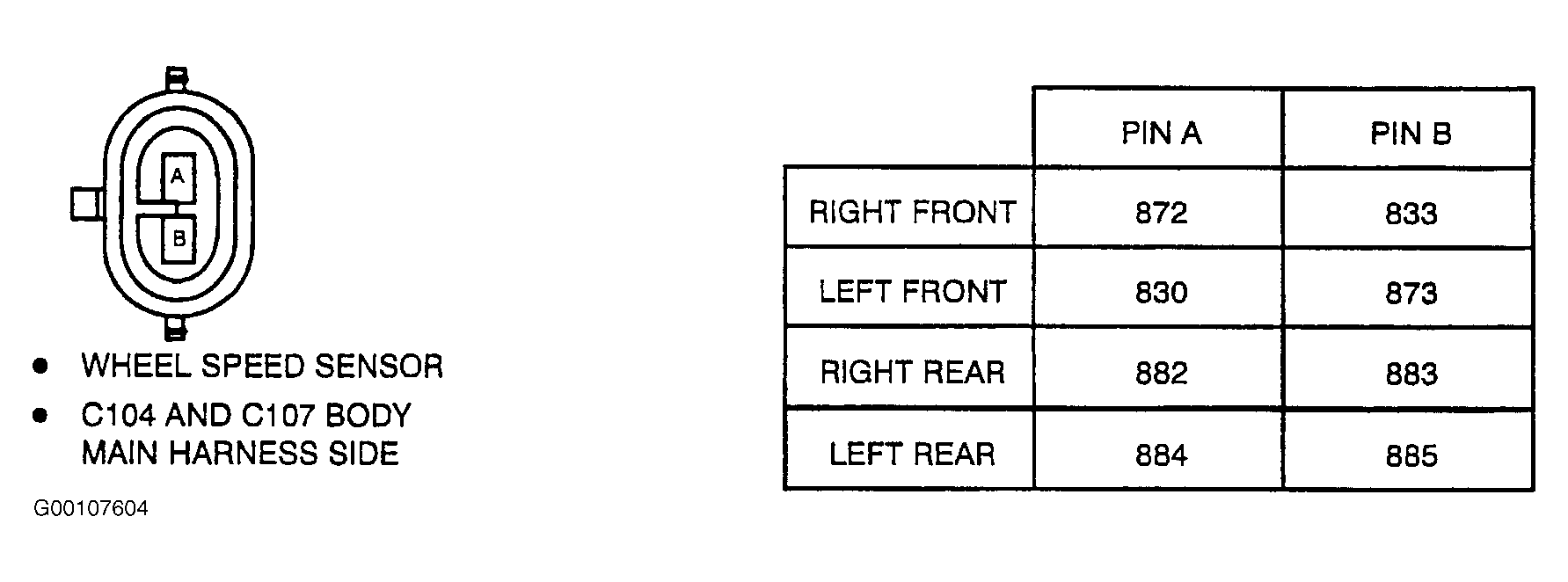

Fig 1: Identifying Wheel Speed Sensor Harness Connector Terminals
G00107604Courtesy of GENERAL MOTORS CORP.

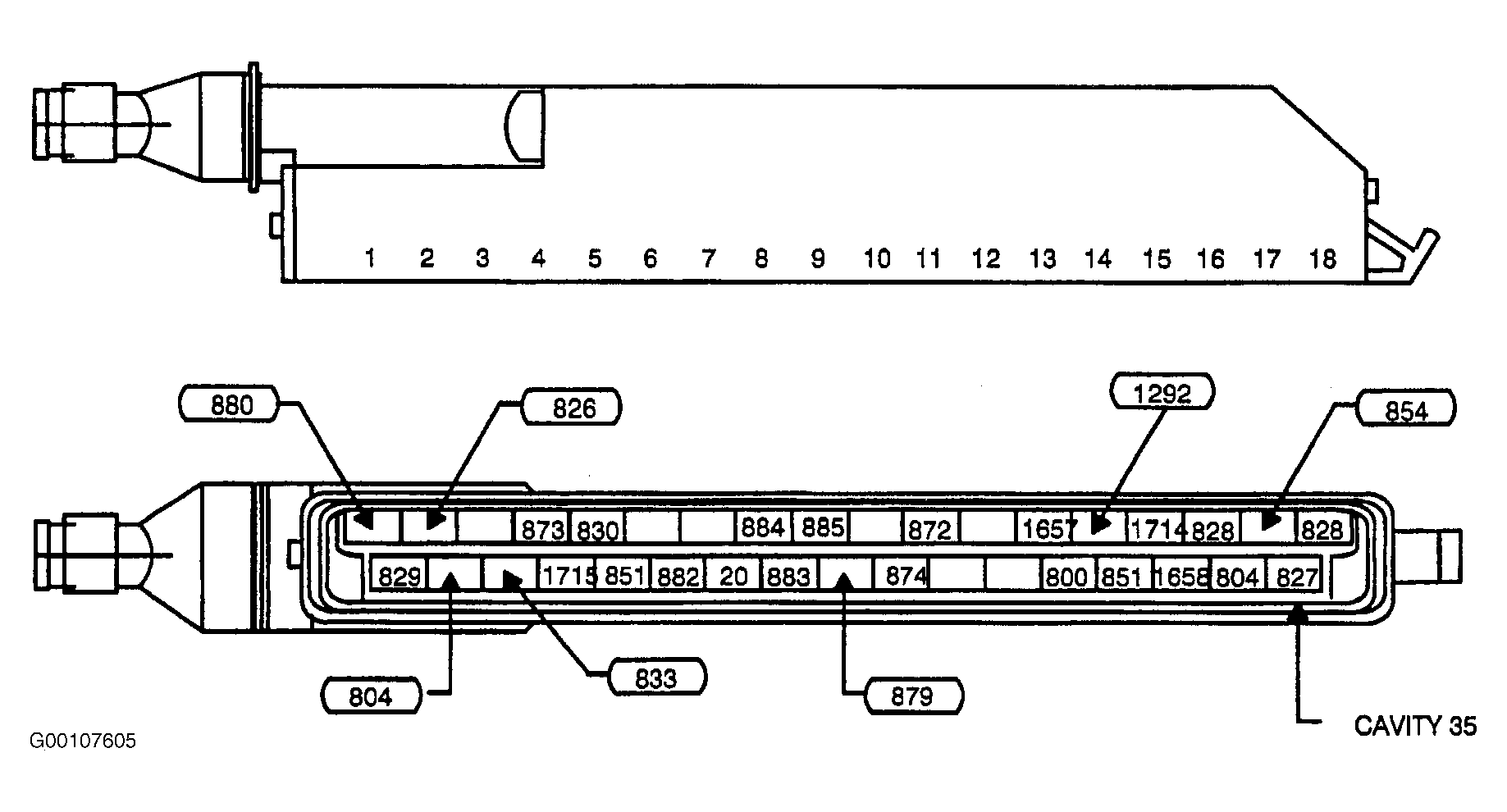

Fig 2: Identifying EBTCM Harness Connector Terminals
G00107605Courtesy of GENERAL MOTORS CORP.

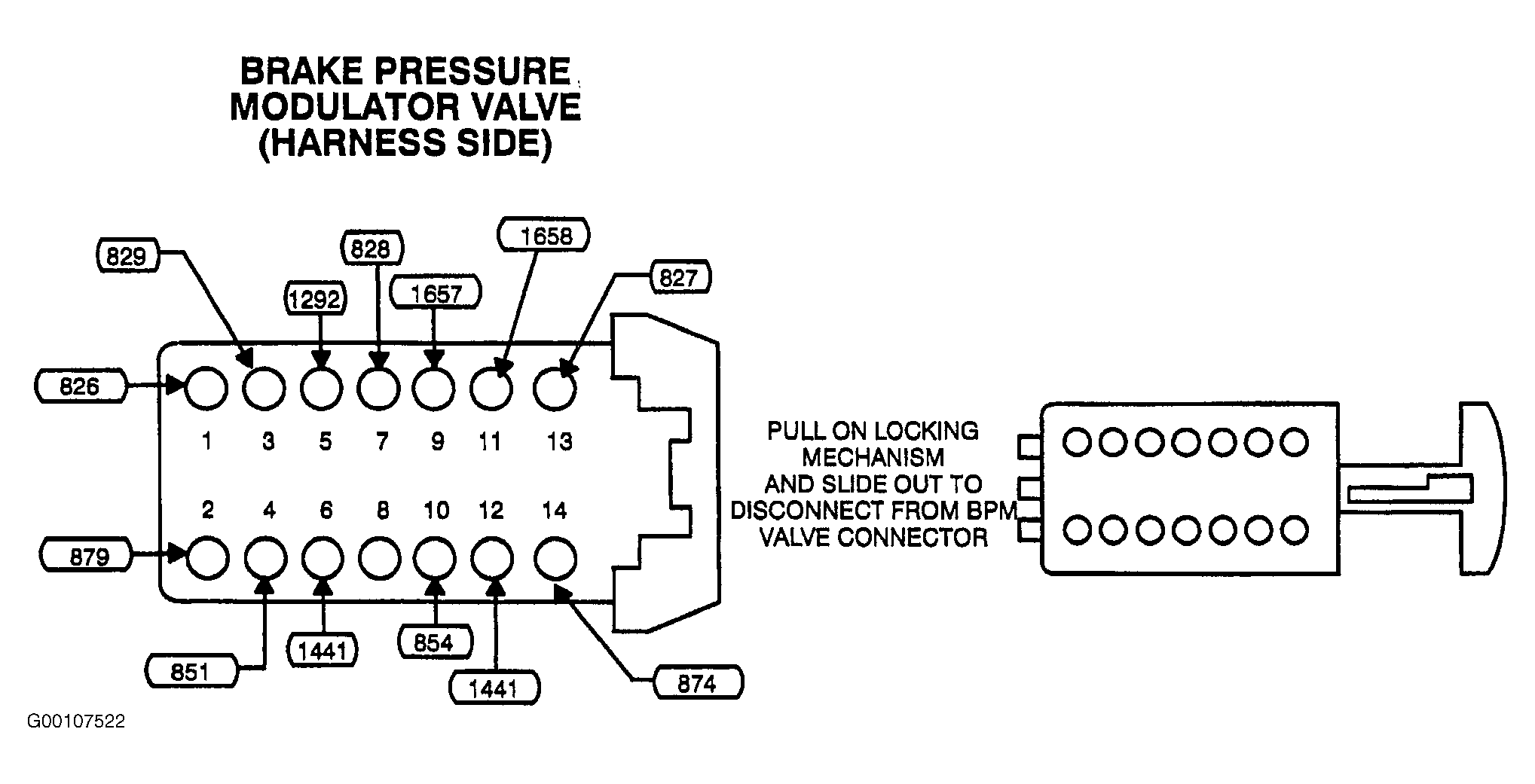

Fig 3: Identifying Brake Pressure Modulator Valve Harness Connector Terminals
G00107522Courtesy of GENERAL MOTORS CORP.

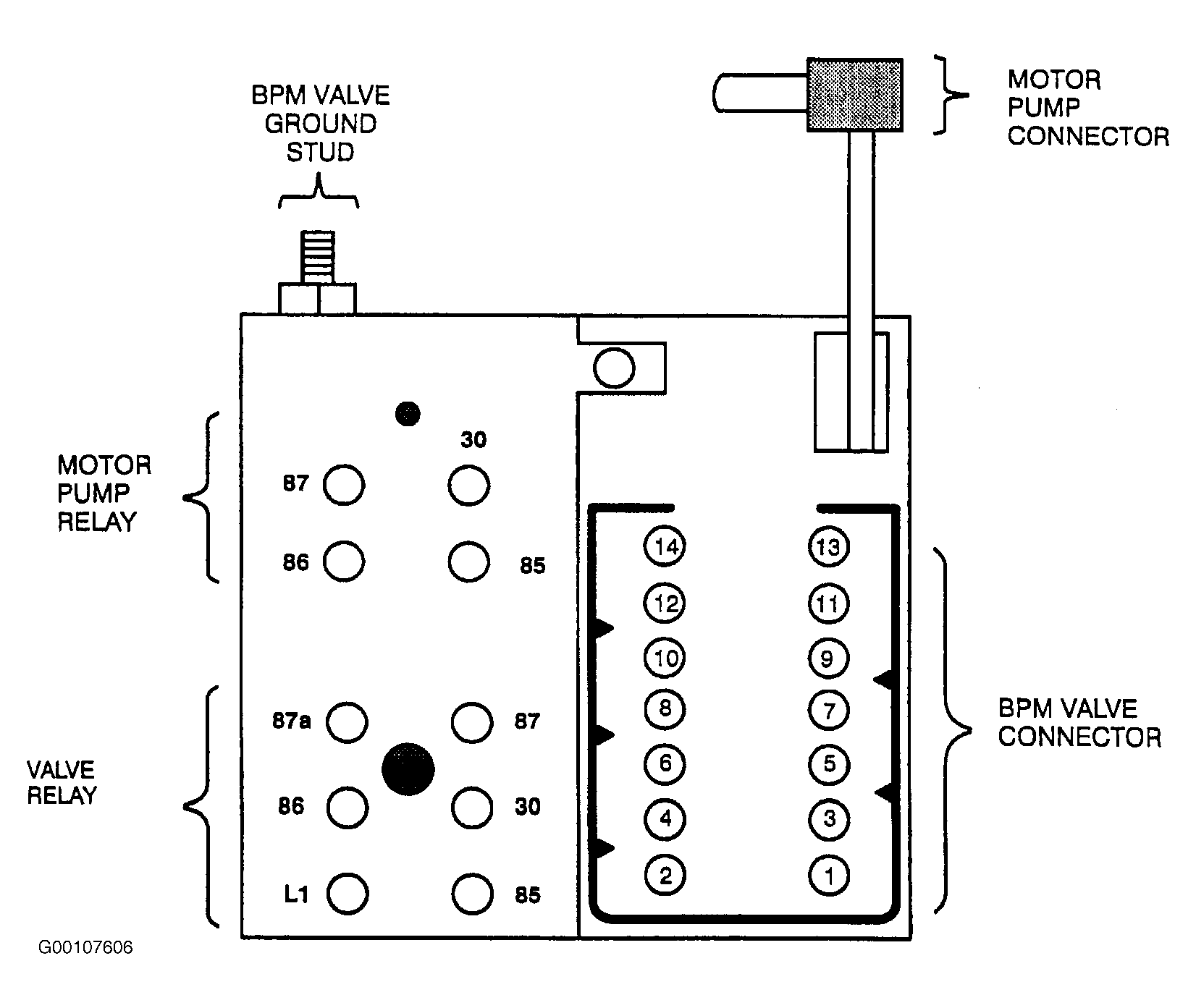

Fig 4: Identifying Brake Pressure Modulator Valve Harness Connector Terminals
G00107606Courtesy of GENERAL MOTORS CORP.

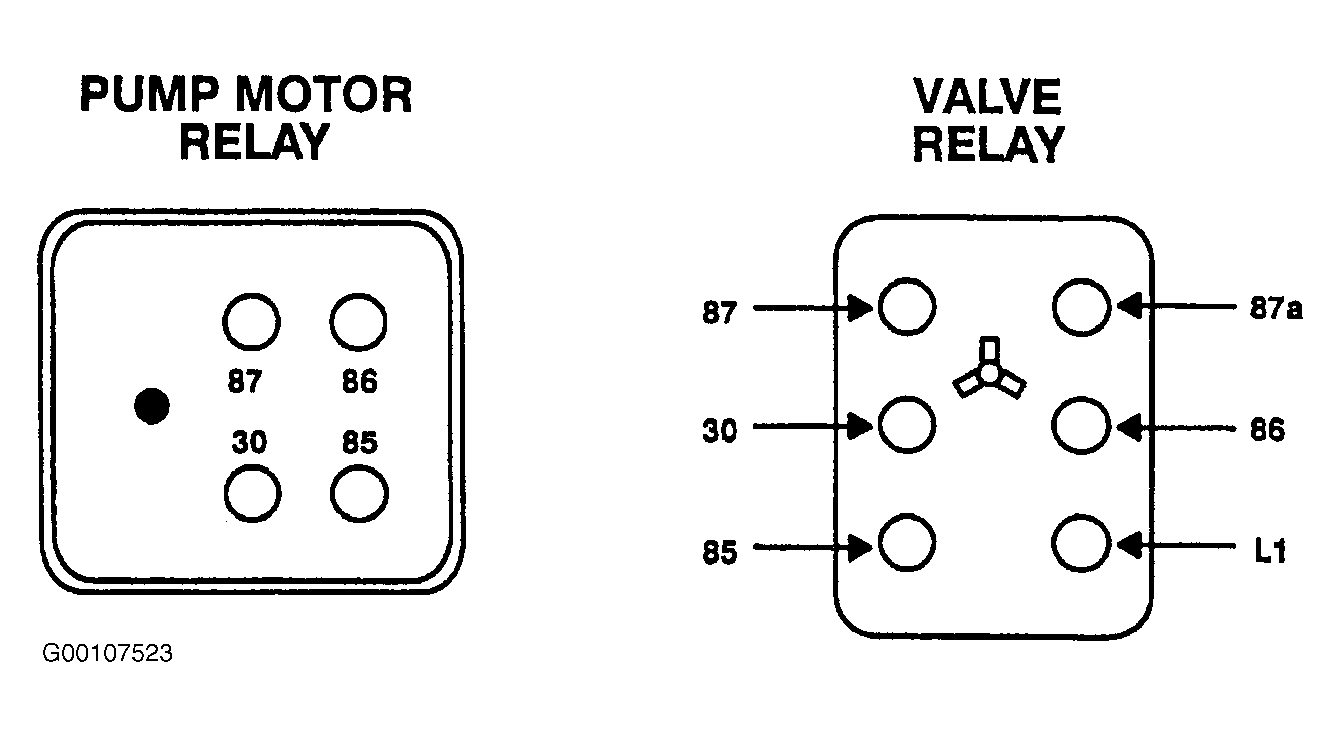

Fig 5: Identifying Pump Motor Relay & Valve Relay Terminals
G00107523Courtesy of GENERAL MOTORS CORP.

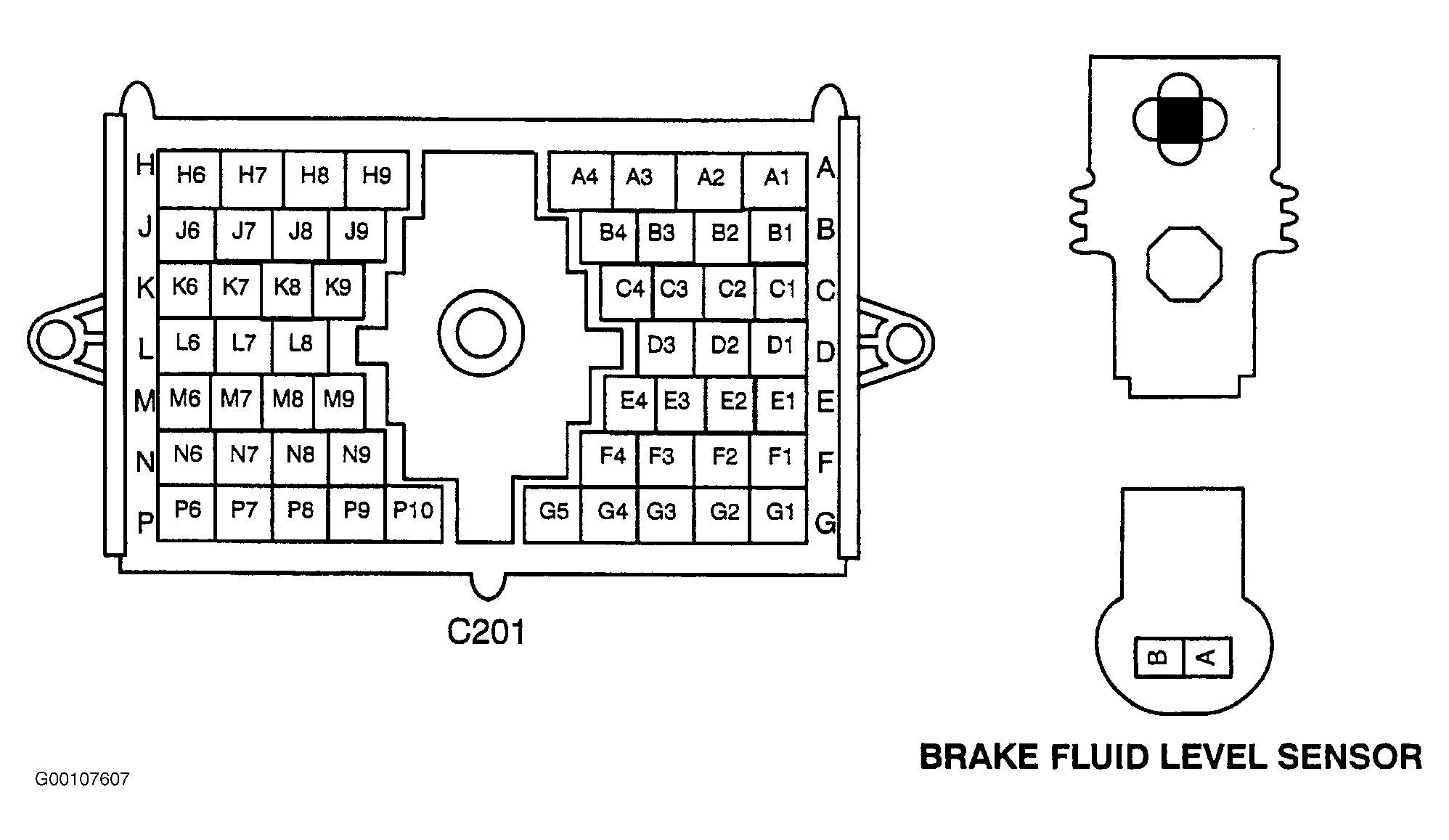

Fig 6: Identifying Brake Fluid Level Sensor & C201 Harness Connector Terminals
G00107607Courtesy of GENERAL MOTORS CORP.

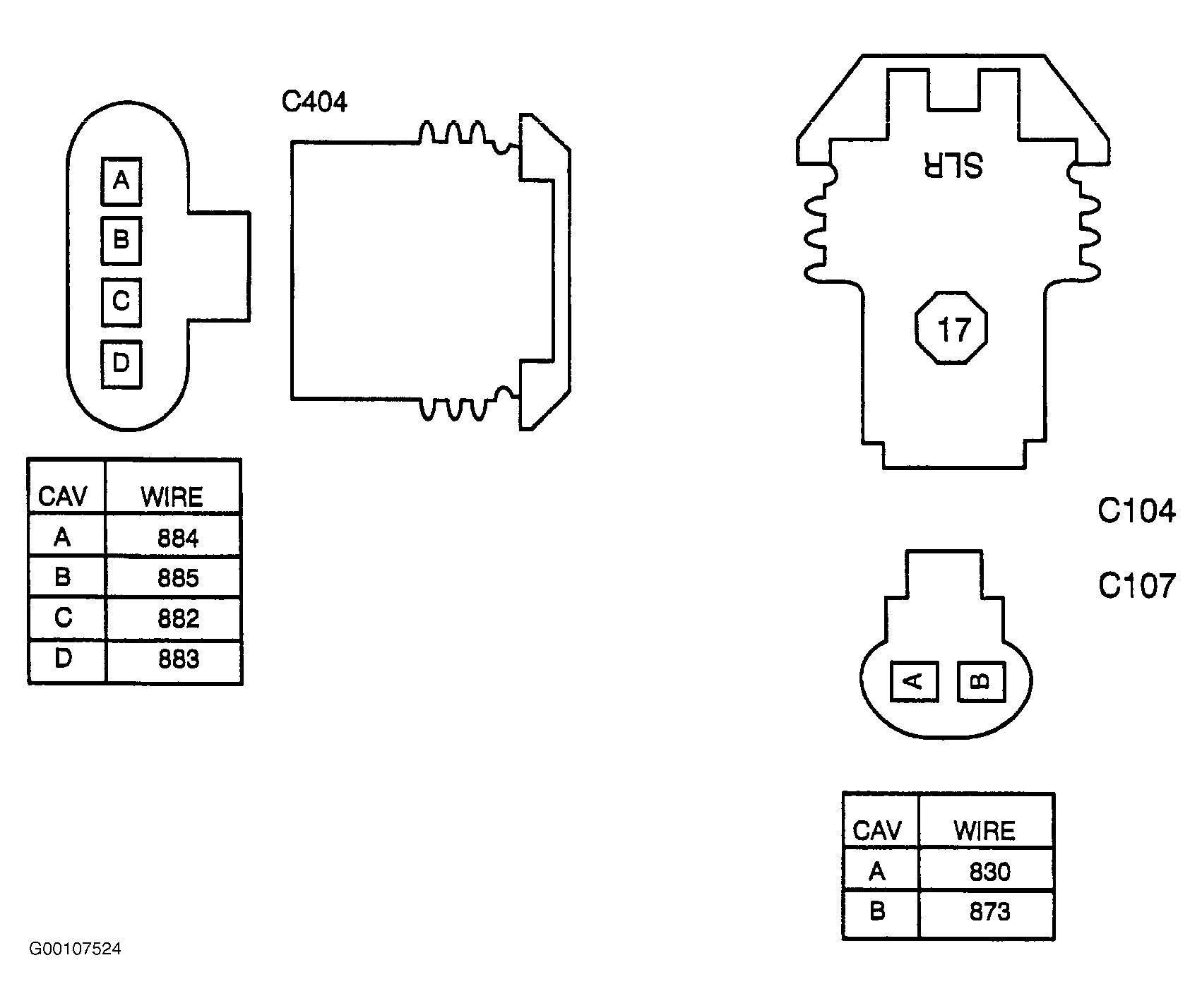

Fig 7: Identifying Wheel Speed Sensor Harness Connector Terminals
G00107524Courtesy of GENERAL MOTORS CORP.
