Abs/TCS Functional Check

If the ABS/TCS condition is not resolved as a result of the Visual Inspection, the ABS/TCS Functional Check should then be performed. The ABS/TCS Functional Check will then lead to a specific trouble tree chart or test. Several different test methods and various types of diagnostic charts are used. The TECH 1 or Tech II is used extensively at this point. See Fig 1-Fig 5 .

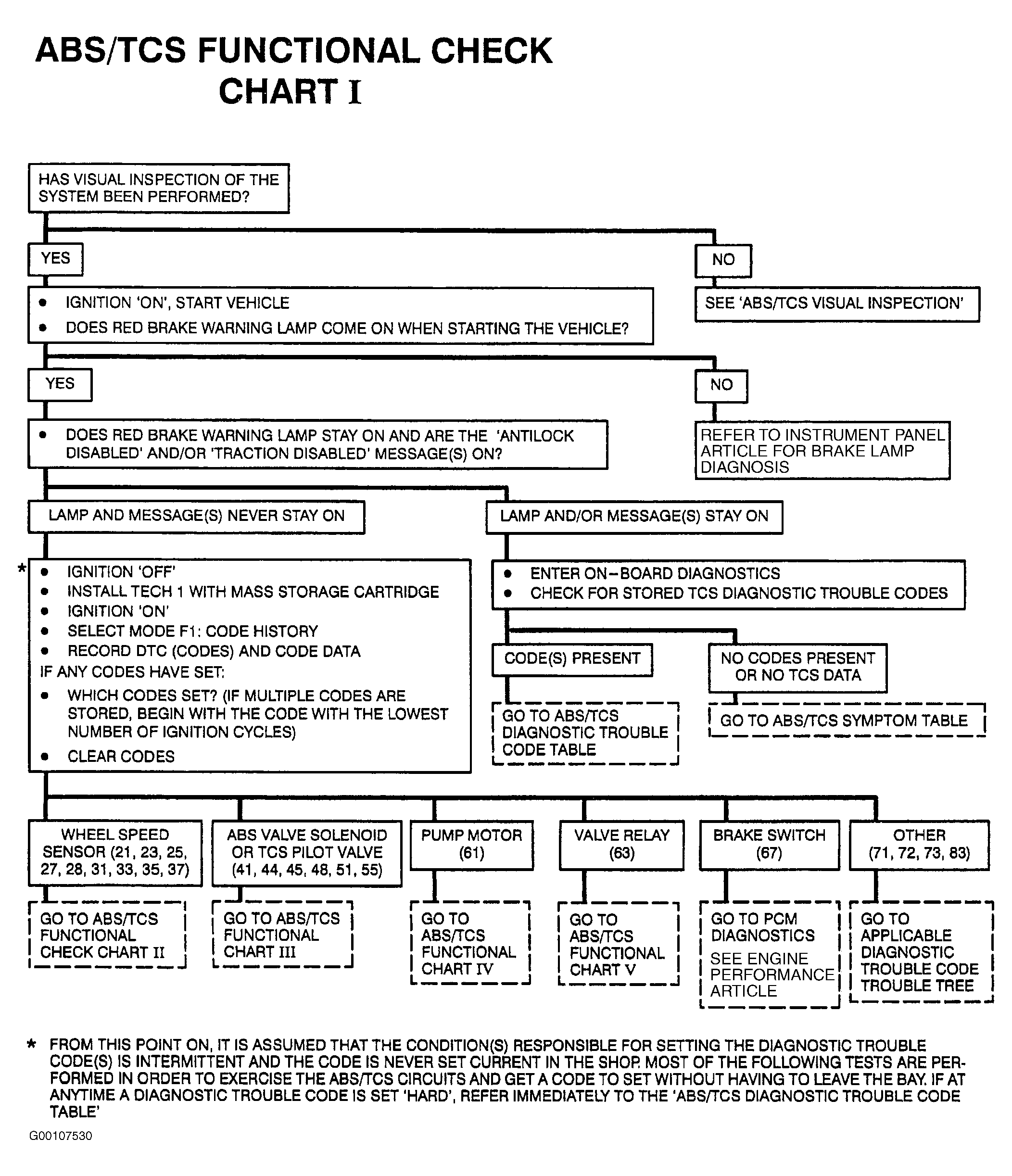

Fig 1: ABS/TCS Functional Check Chart I

Courtesy of GENERAL MOTORS CORP.

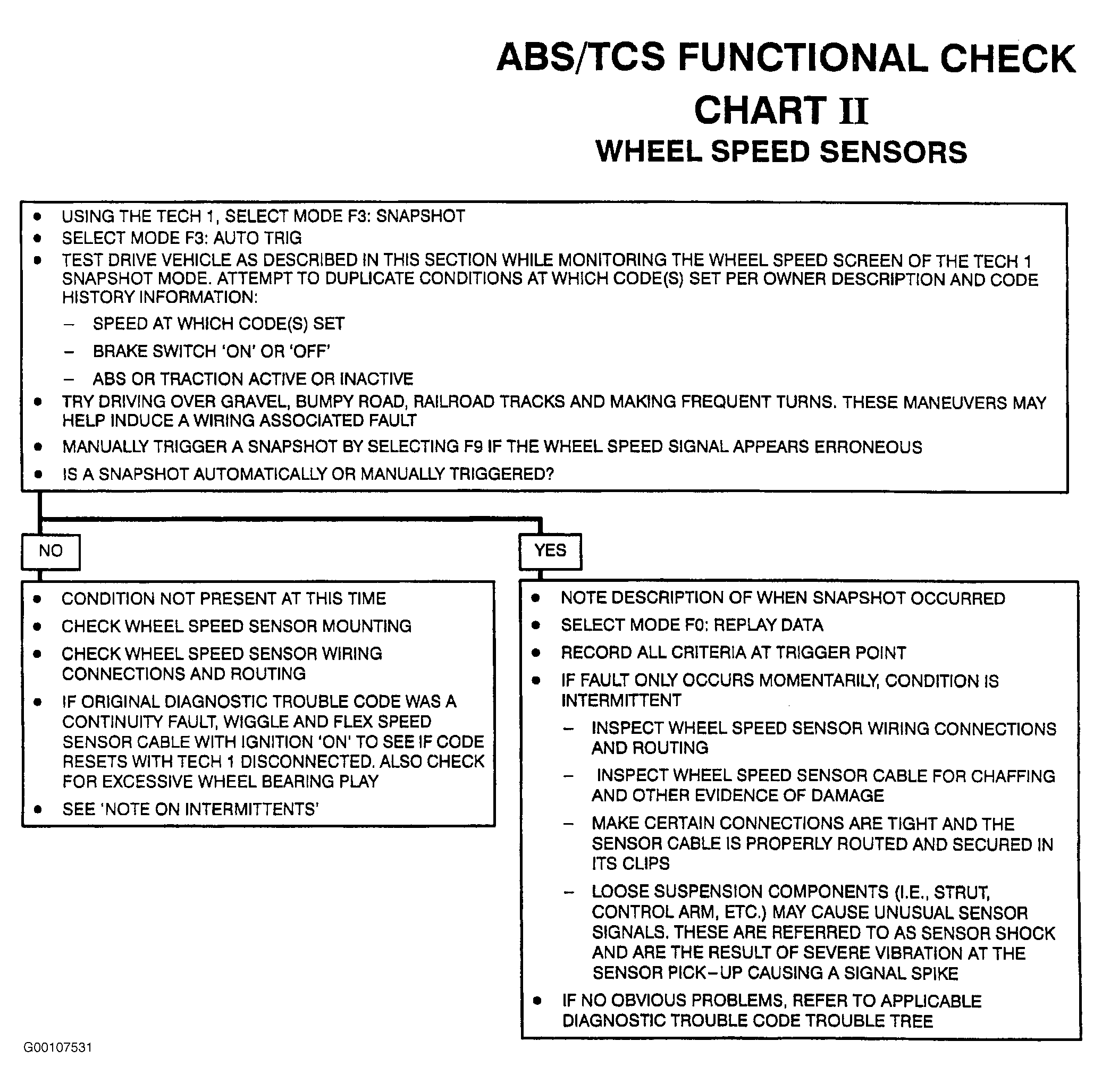

Fig 2: ABS/TCS Functional Check Chart II (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.

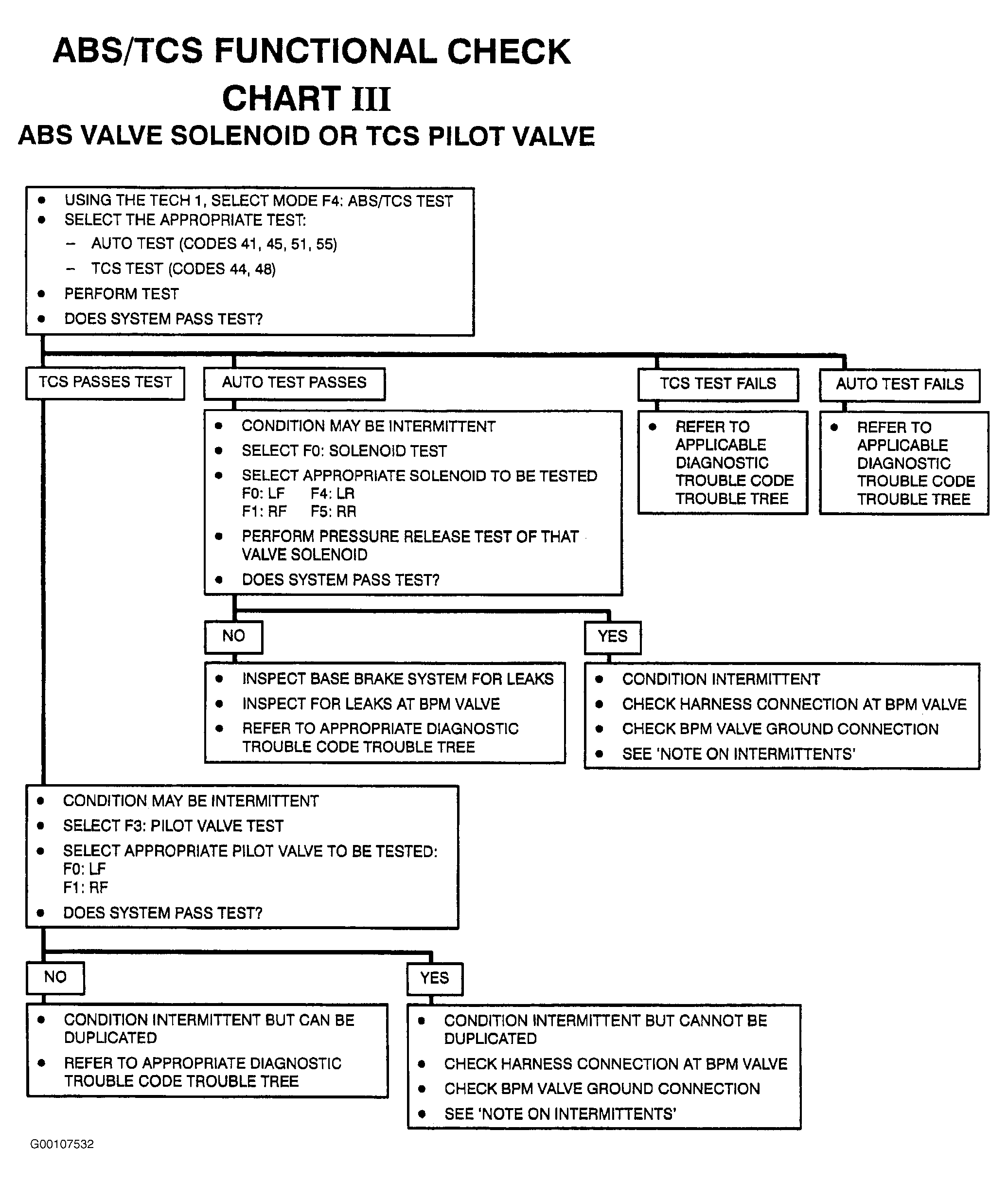

Fig 3: ABS/TCS Functional Check Chart III (ABS Valve Solenoid Or TCS Pilot Valve)

Courtesy of GENERAL MOTORS CORP.

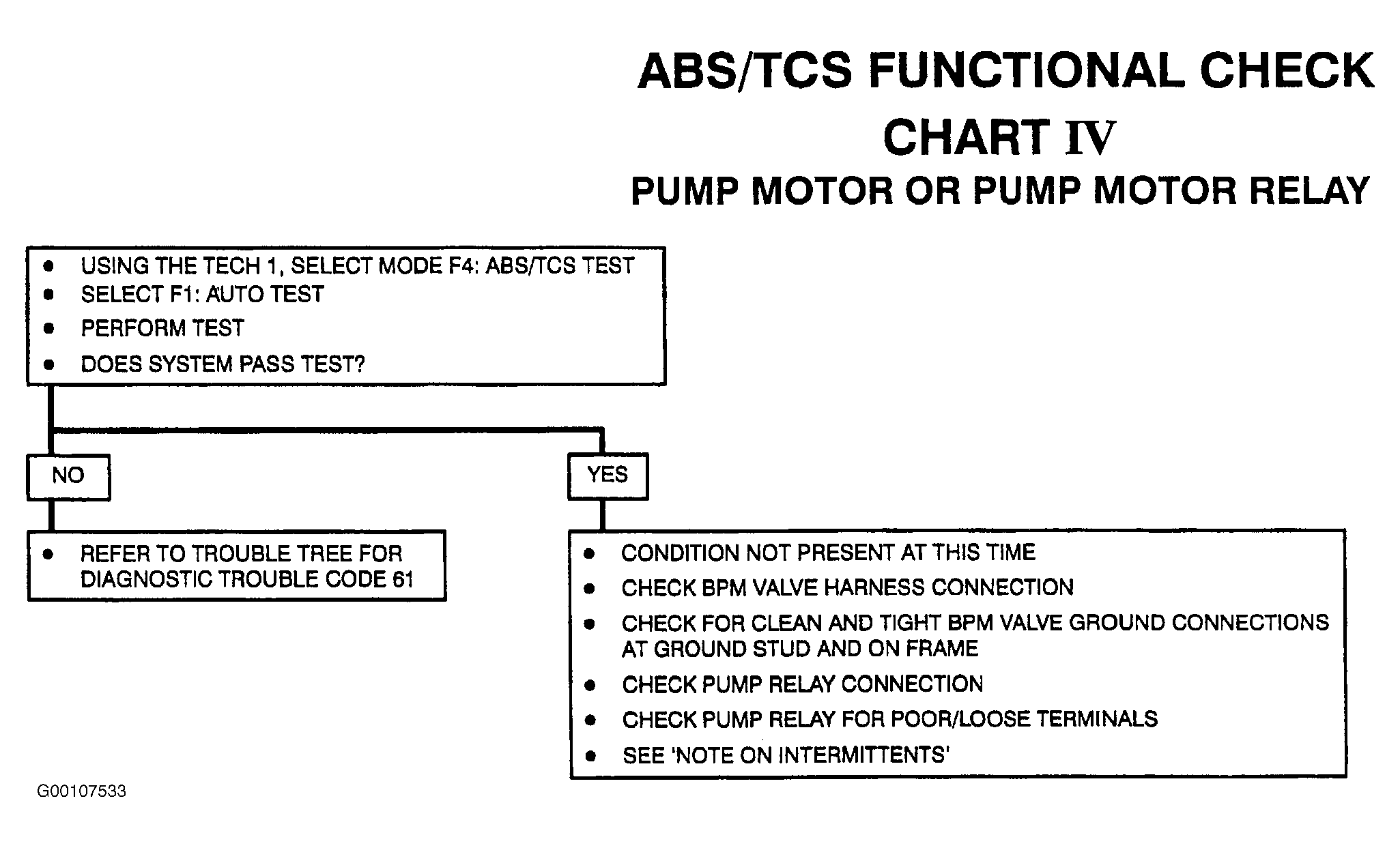

Fig 4: ABS/TCS Functional Check Chart IV (Pump Motor Or Pump Motor Relay)

Courtesy of GENERAL MOTORS CORP.

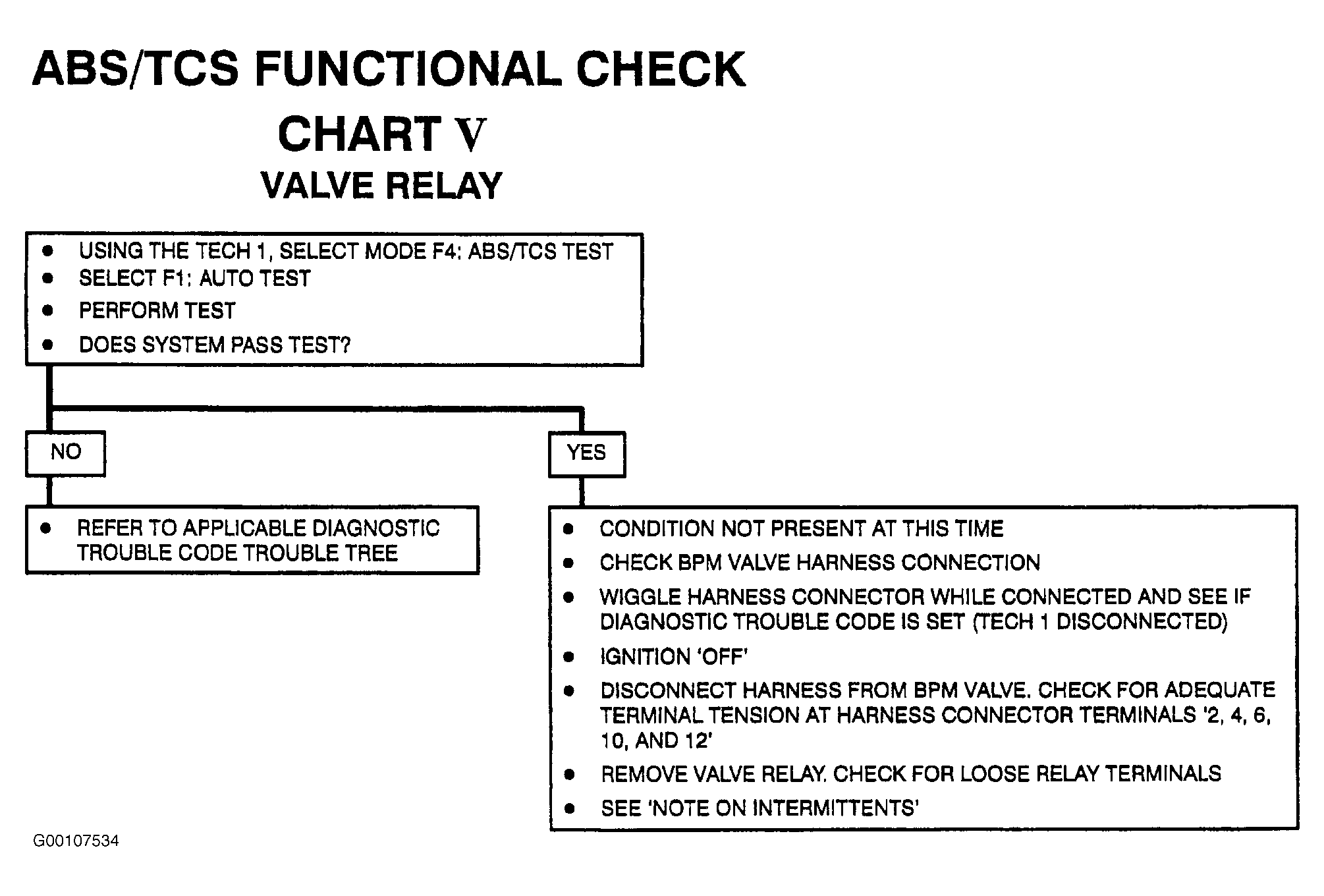

Fig 5: ABS/TCS Functional Check Chart V (Valve Relay)

Courtesy of GENERAL MOTORS CORP.
