Notes On Fault Tree
NOTE:

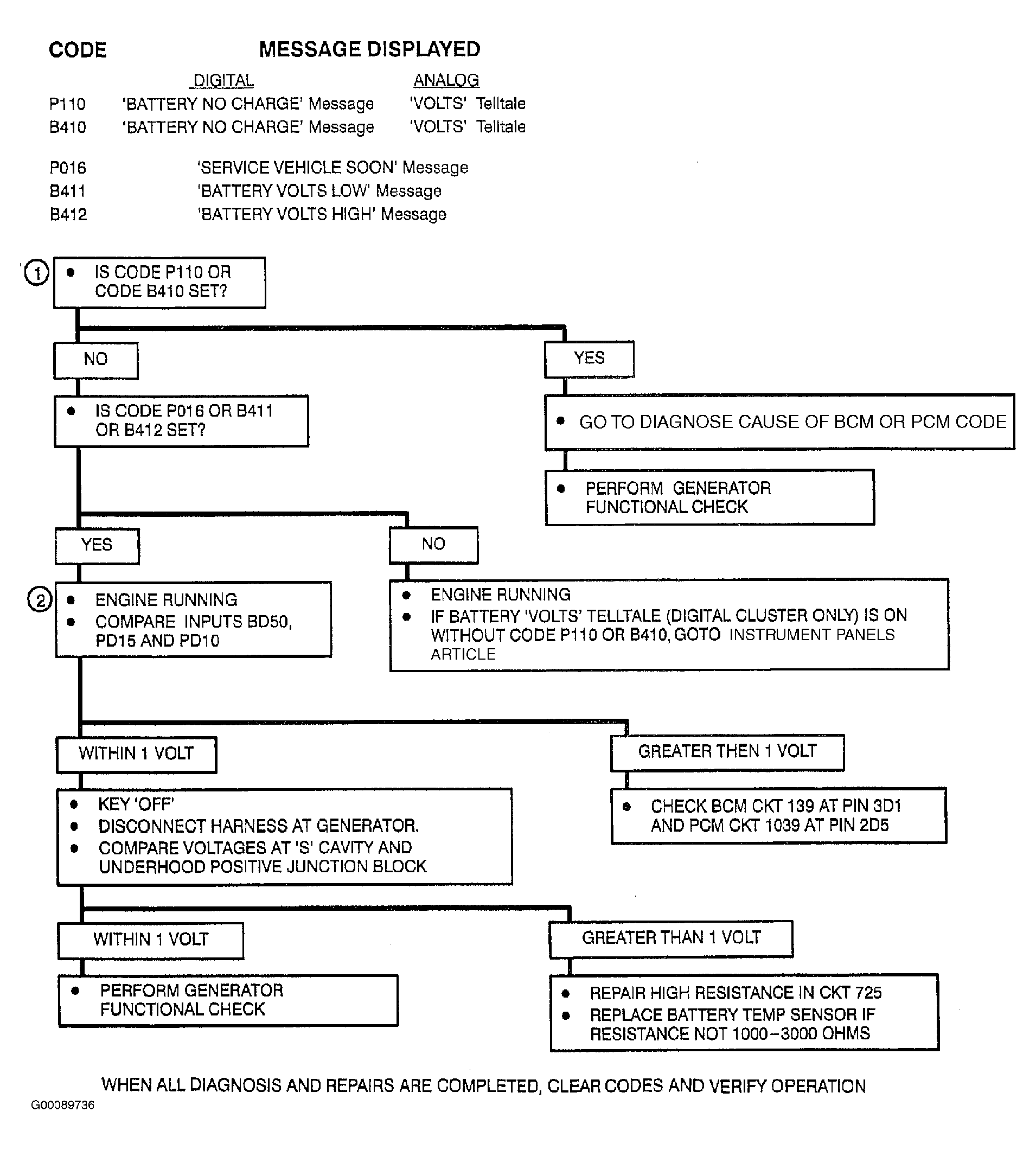

Steps in this procedure correspond to circled numbers in flow chart. See Figure
.
- B410 will not set if P110 is set.
- Verify that an out-of-range voltage condition exists in vehicle, not in just one circuit.
