Firing Order

Engine firing order is 1-2-7-3-4-5-6-8. For ignition coil spark plug wire routing, see Fig 1 .

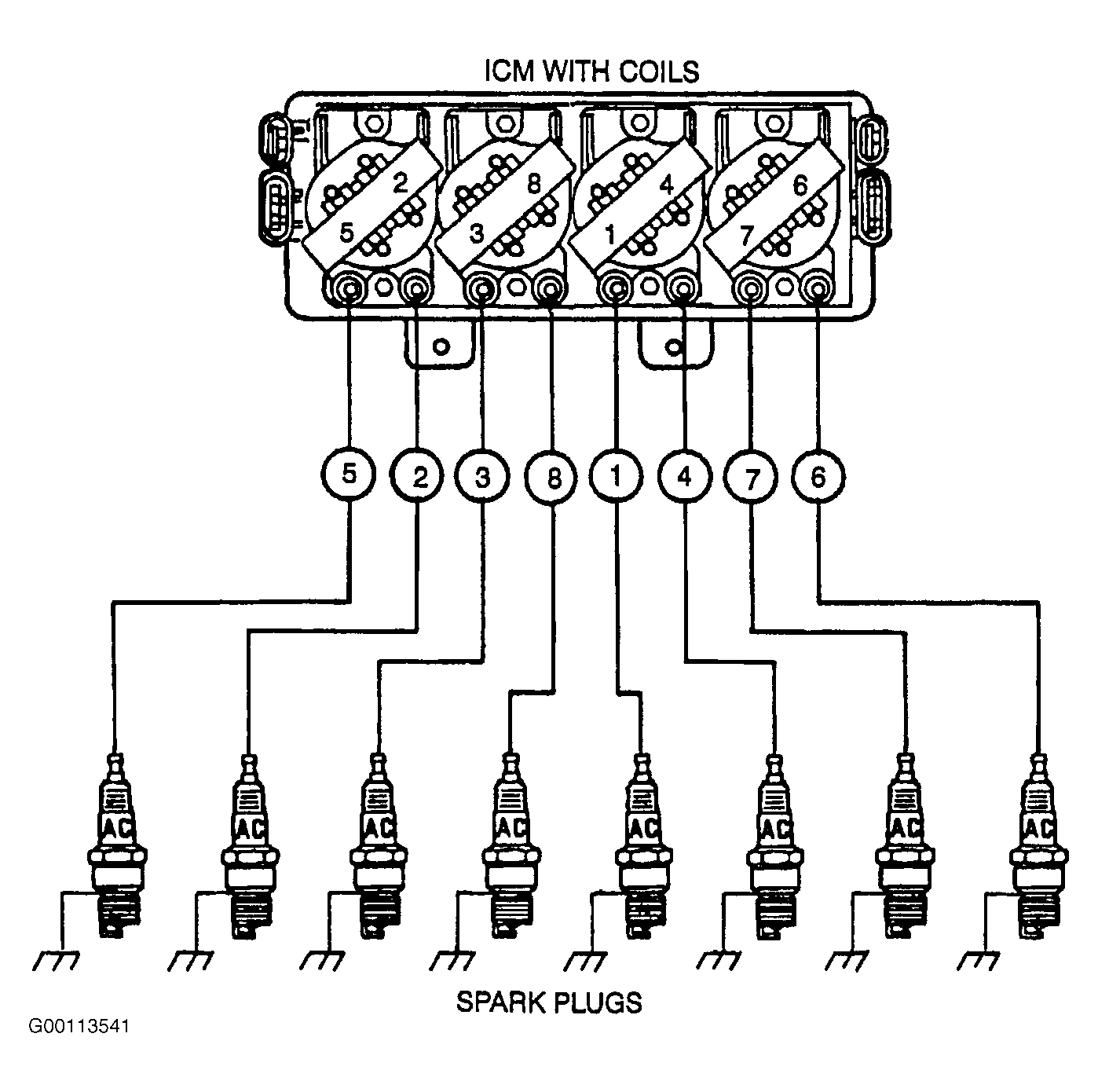

Fig 1: Identifying Ignition Coil Spark Plug Wire Routing

Courtesy of GENERAL MOTORS CORP.
