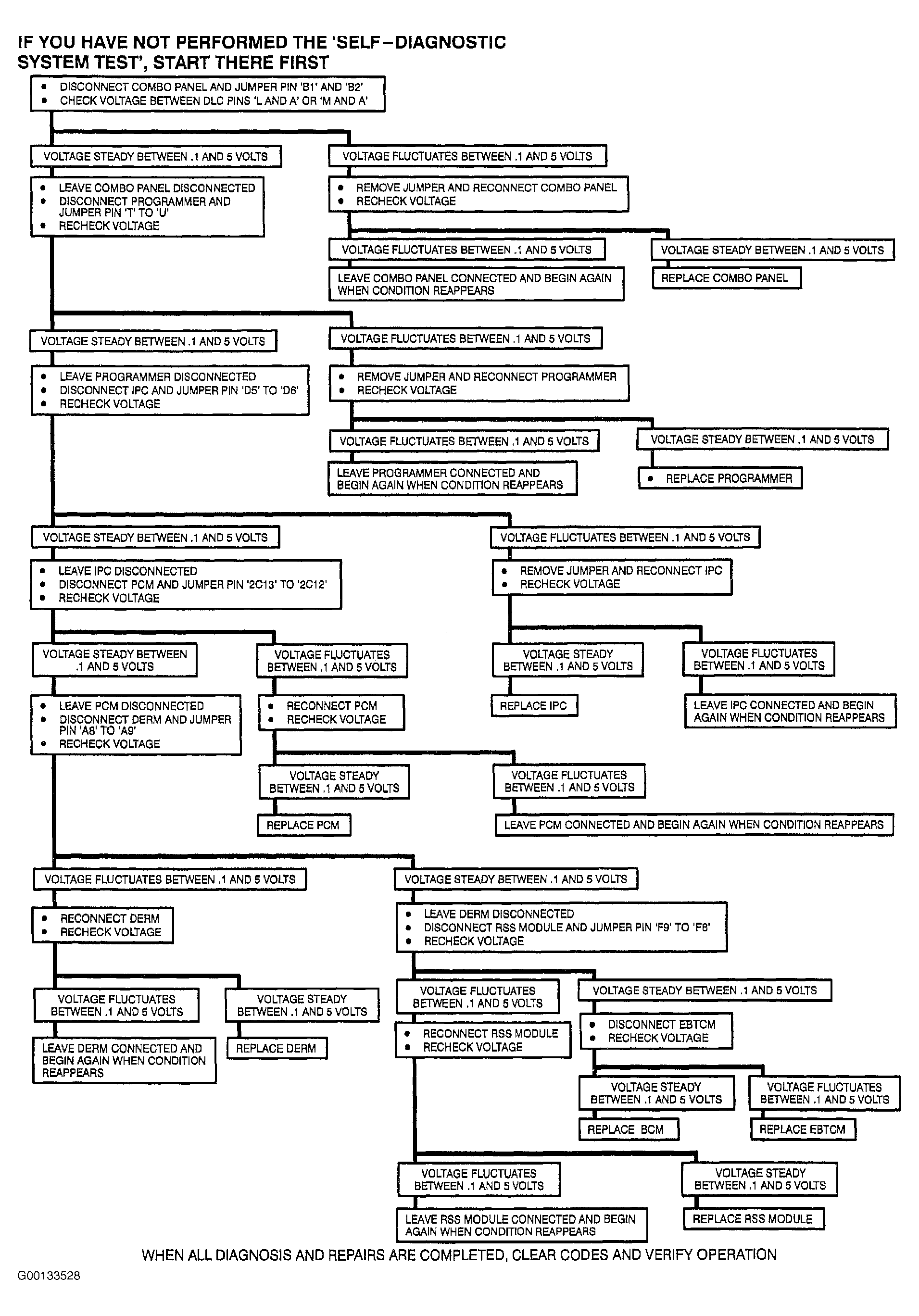

Self-Diagnostics System Check Chart B-4: Data Circuit Shorted: Description
You have been directed to this chart from chart B because one of the components on the dataline is shorting CKT 800. This chart will help determine which component it is faulty.
