Chart 6D4-1: Ignition System Check: Notes

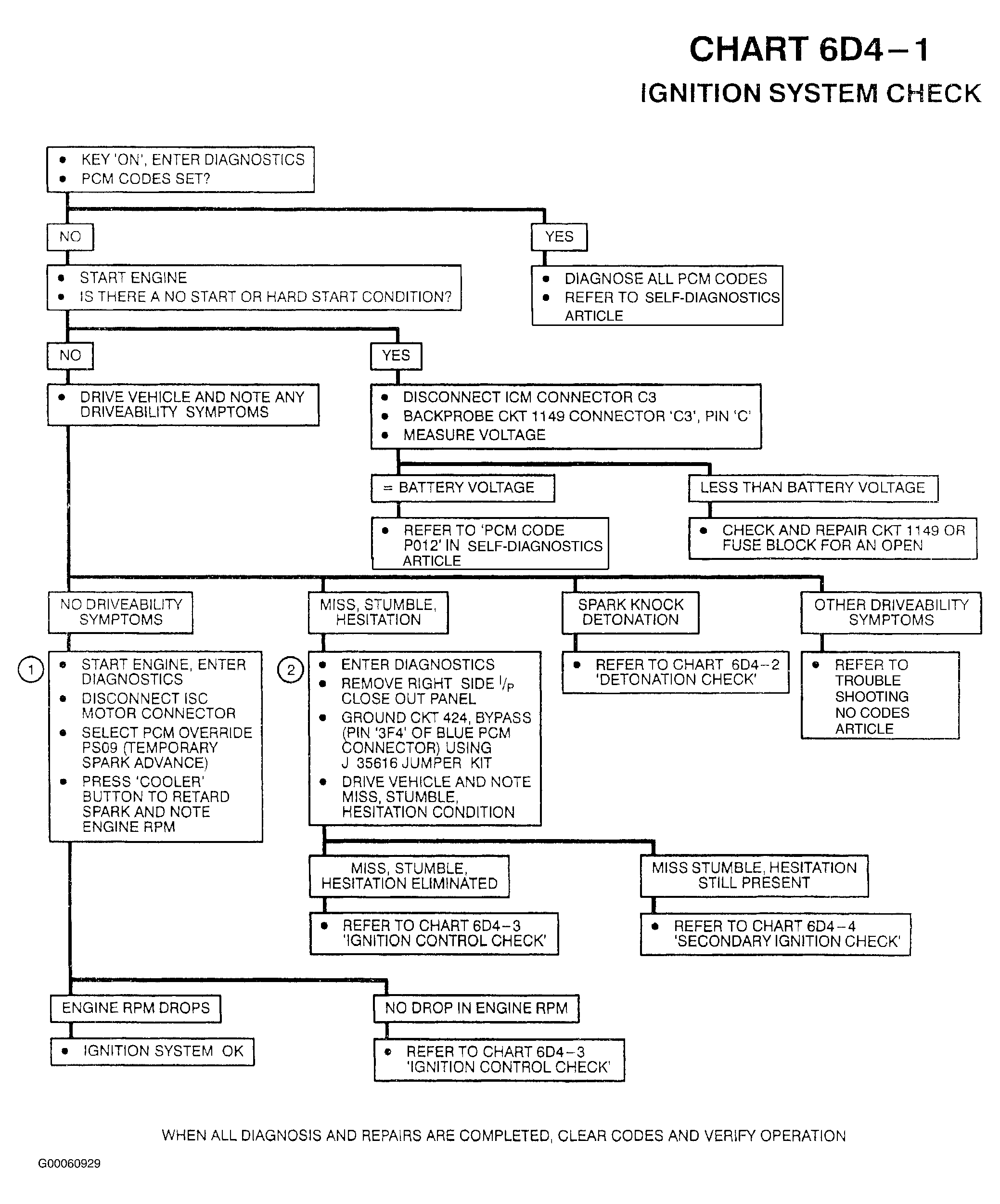

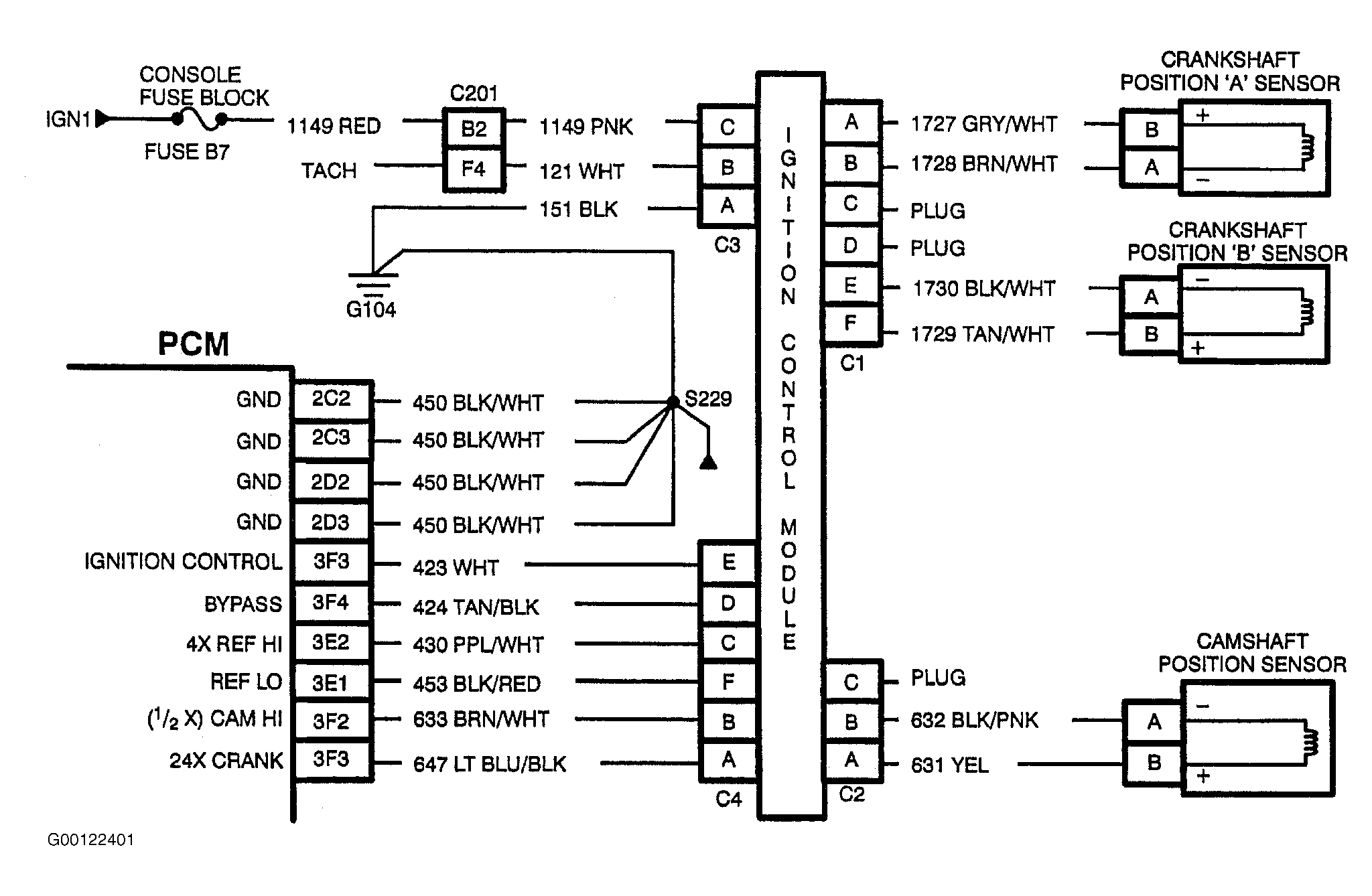

NOTE: For testing, see Figure . For circuit identification, see Figure .
