Chart 6D4-4: Secondary Ignition Check: Notes

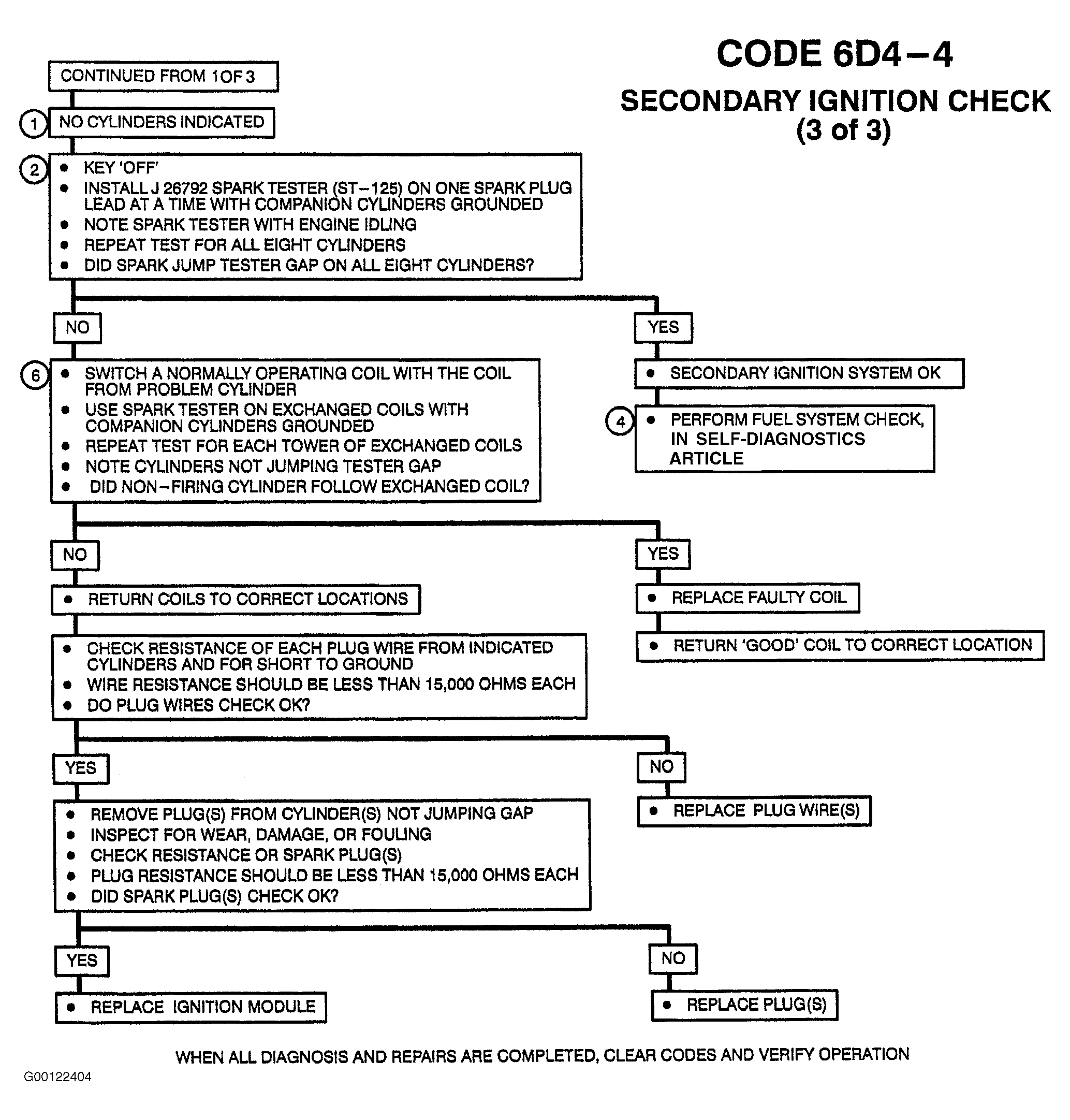

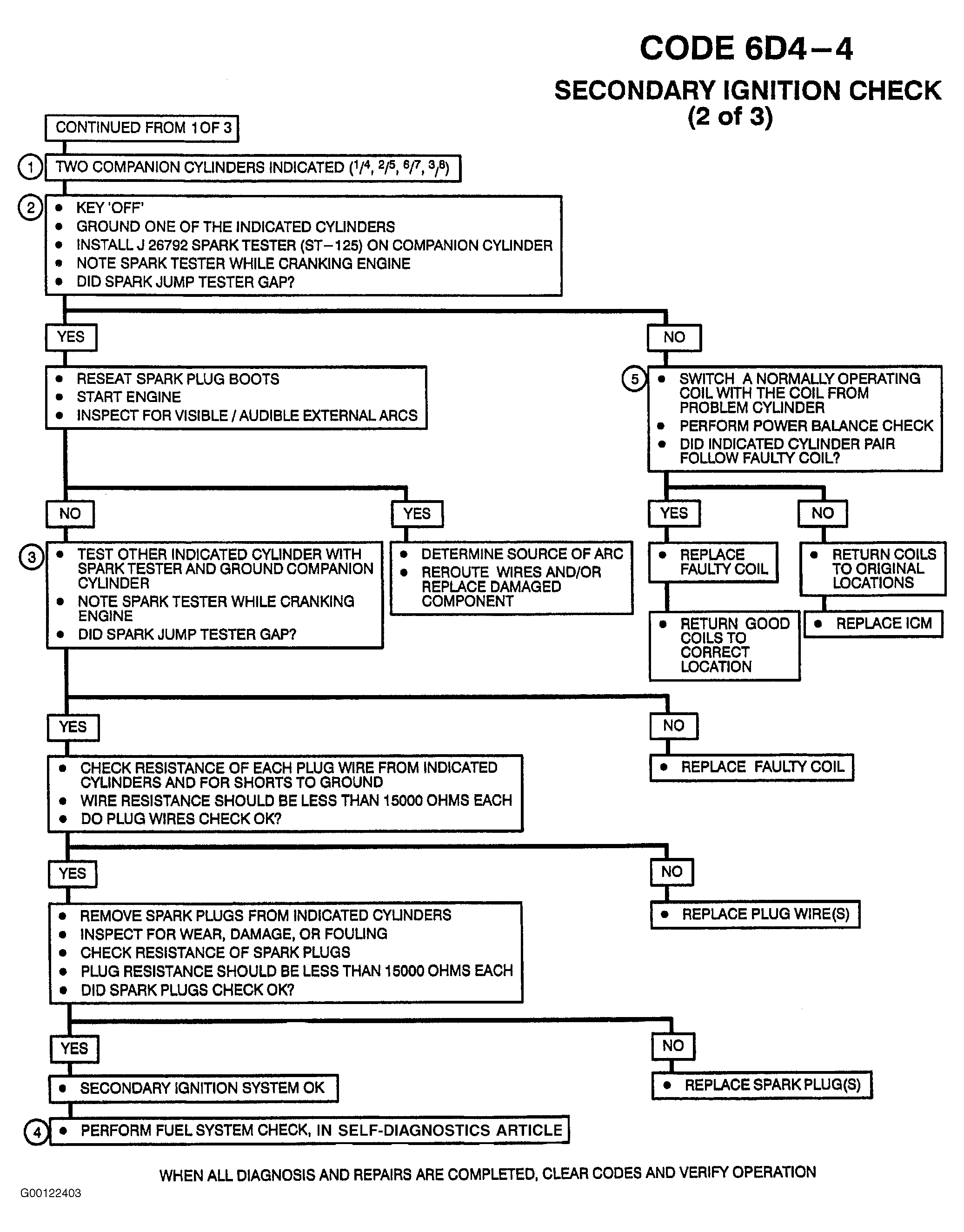

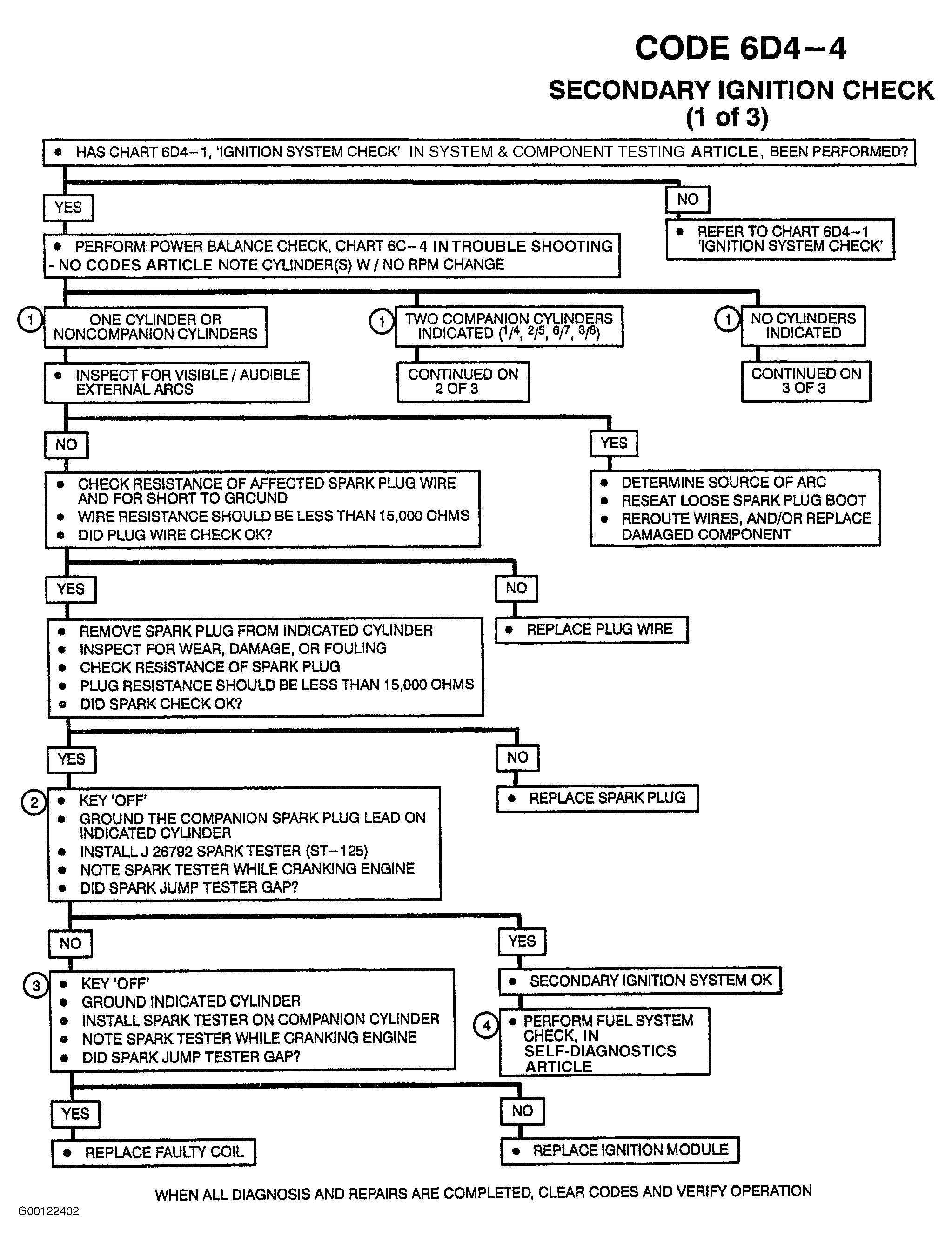

NOTE: For testing, see Figure , Figure and/or Figure . For circuit identification, see Figure .
