Front Caster Adjustment

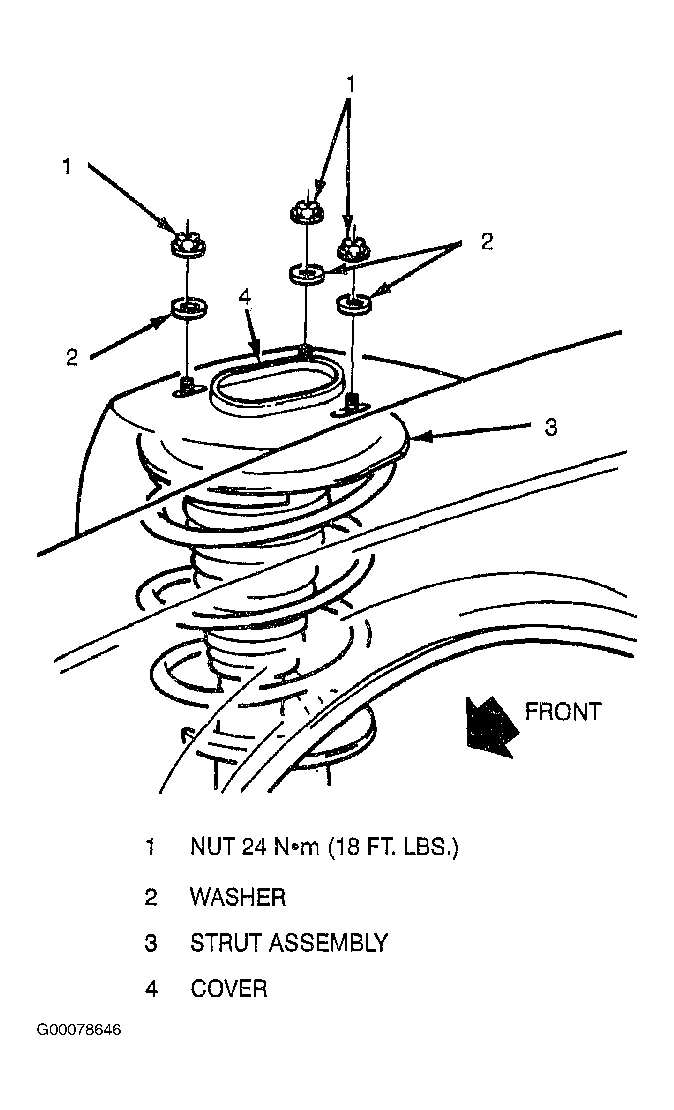

With car supported by its wheels, remove three top strut mounting nuts and washers. Set caster to specification by moving top of strut forward or rearward as required. The adjustment sensitivity is approximately 0.1° of caster per millimeter moved. Tighten top strut mounting nuts to 24 N.m (18 ft. lbs.).
