Home >> Cadillac >> 1993 >> Eldorado V8-281 4.6L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Alternator

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

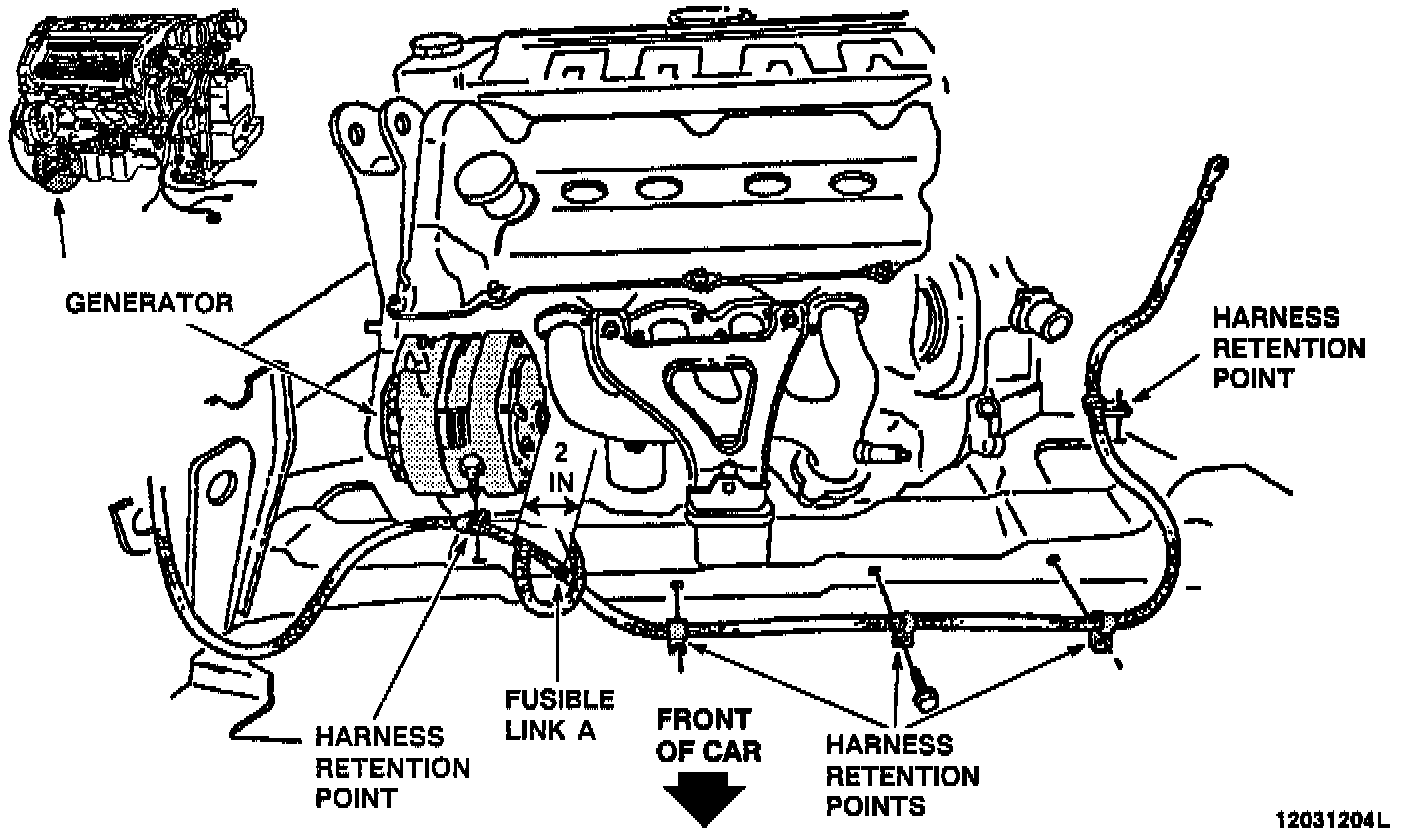

Alternator

Front Of Engine:
