Glove Box Module: Removal

  1. Remove screws. See Fig 1 .
  2. Disconnect electrical connections. See Fig 2 .
  3. Remove glove box module.

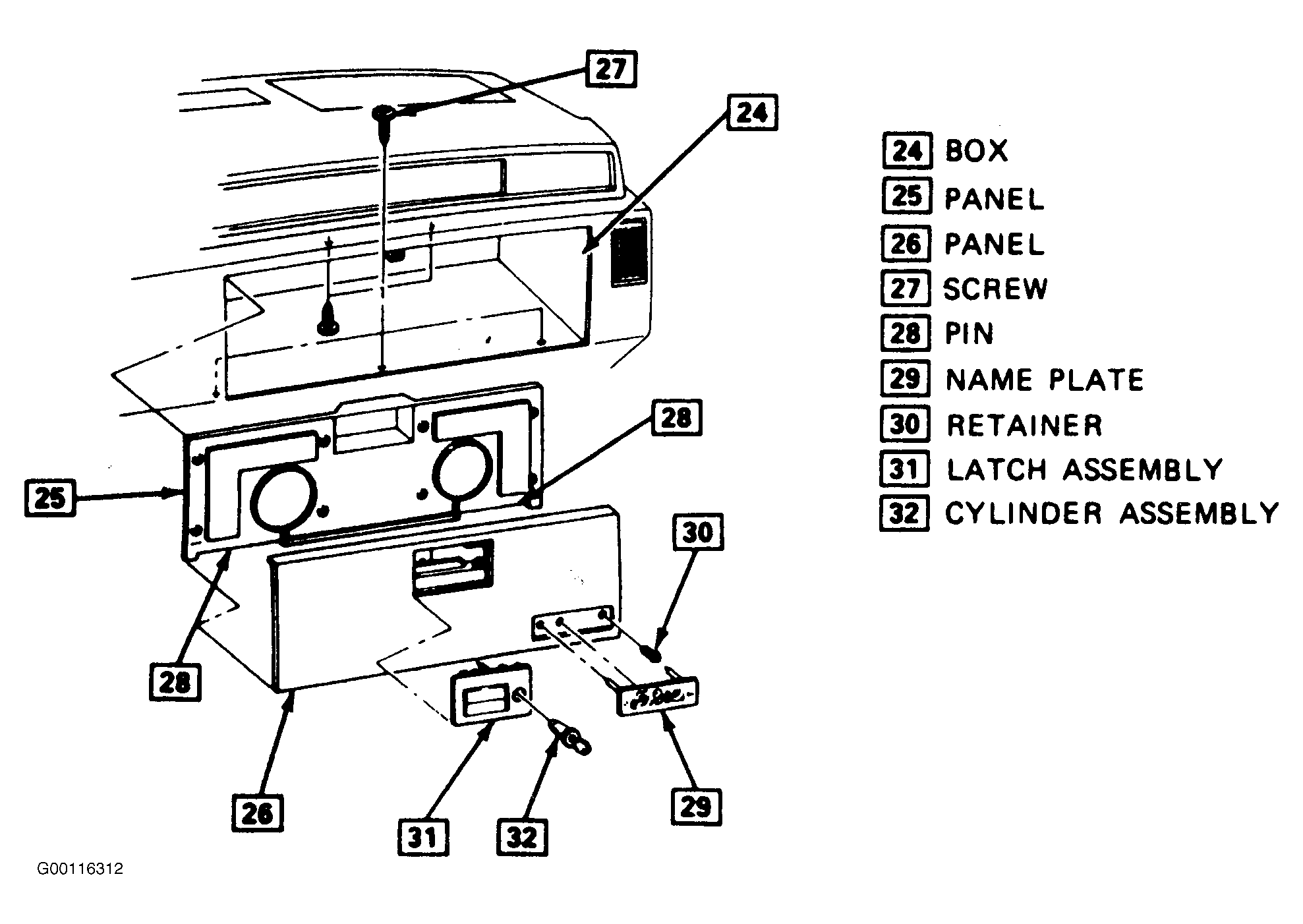

Fig 1: Removing Glove Box Module
G00116312Courtesy of GENERAL MOTORS CORP.

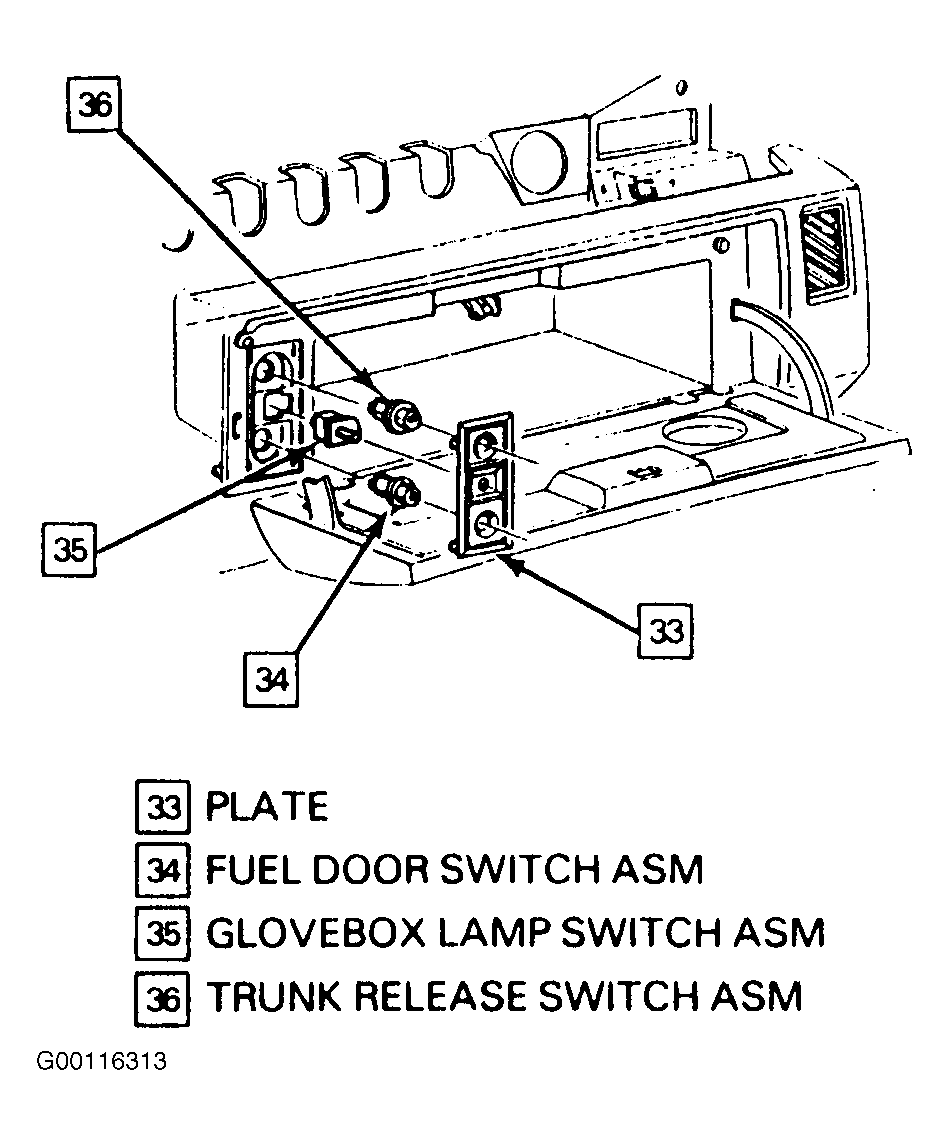

Fig 2: Disconnecting Glove Box Switches
G00116313Courtesy of GENERAL MOTORS CORP.
