Series Coil Open Test

Using self-powered test light, place one lead on series coil terminal connection and other lead on insulated brush. See Fig 1 . If test light fails to illuminate, series coil is open and requires repair or replacement. Repeat test for each insulated brush.

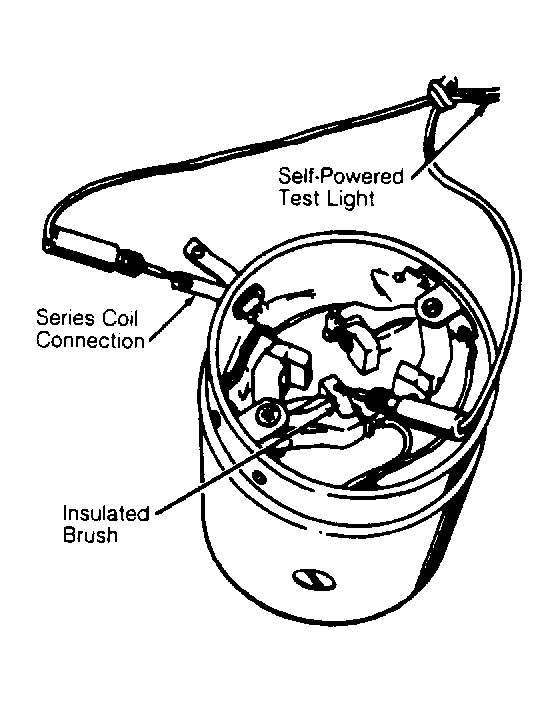

Fig 1: Testing Series Coil For Open

Courtesy of GENERAL MOTORS CORP.
