PI85: Power Steering Pressure Switch (PSPS)

This input comes from PCM terminal 1C9. HI designates power steering switch is closed and PCM is receiving battery voltage. LO means power steering switch is open and PCM is not receiving battery voltage. X means power steering switch has cycled and passed input test.

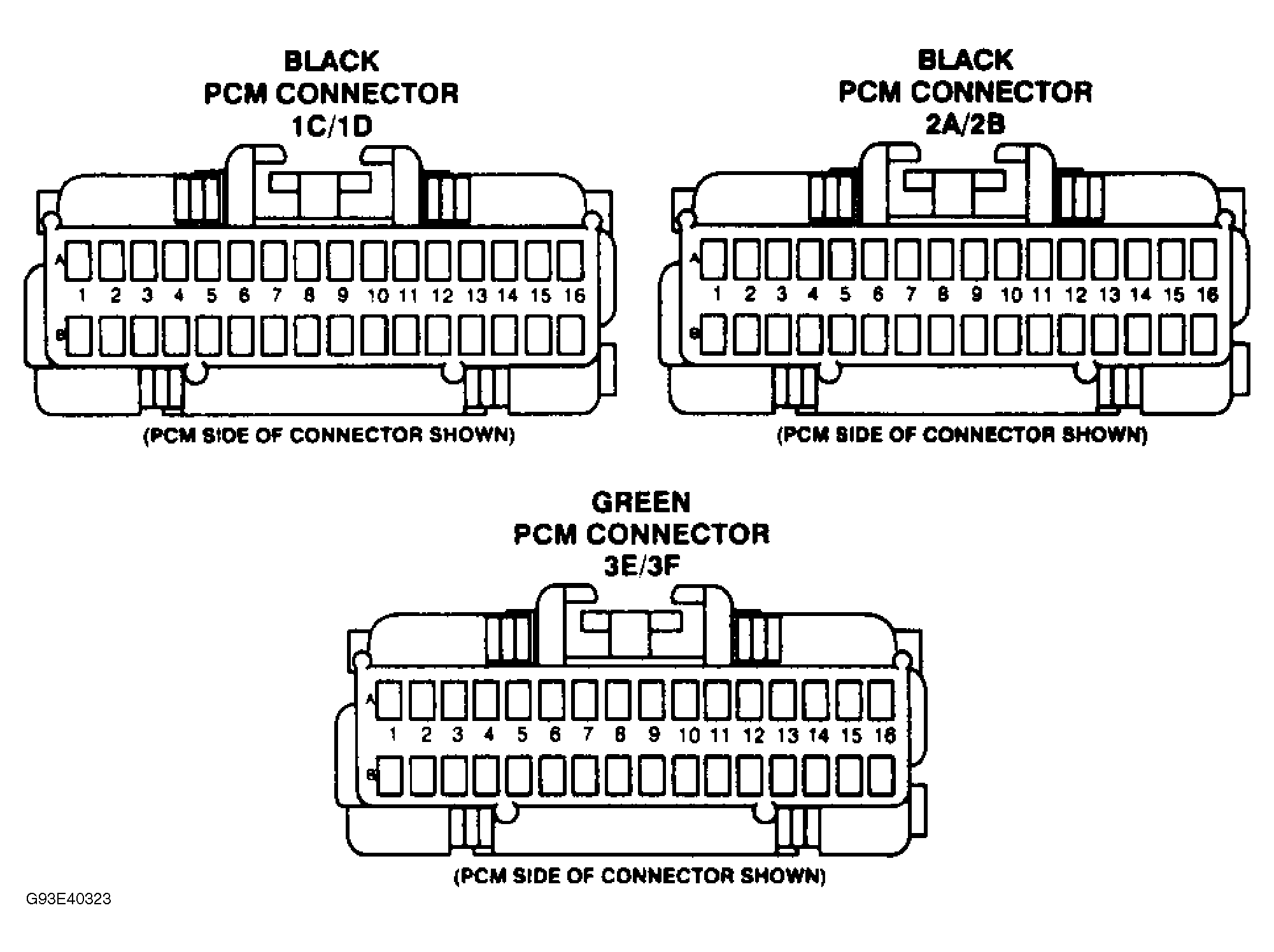

Fig 1: Identifying PCM Harness Connectors
G93J40252Courtesy of GENERAL MOTORS CORP.
