Pcm Code P033 - Extended Travel Brake Switch Input Circuit Problem

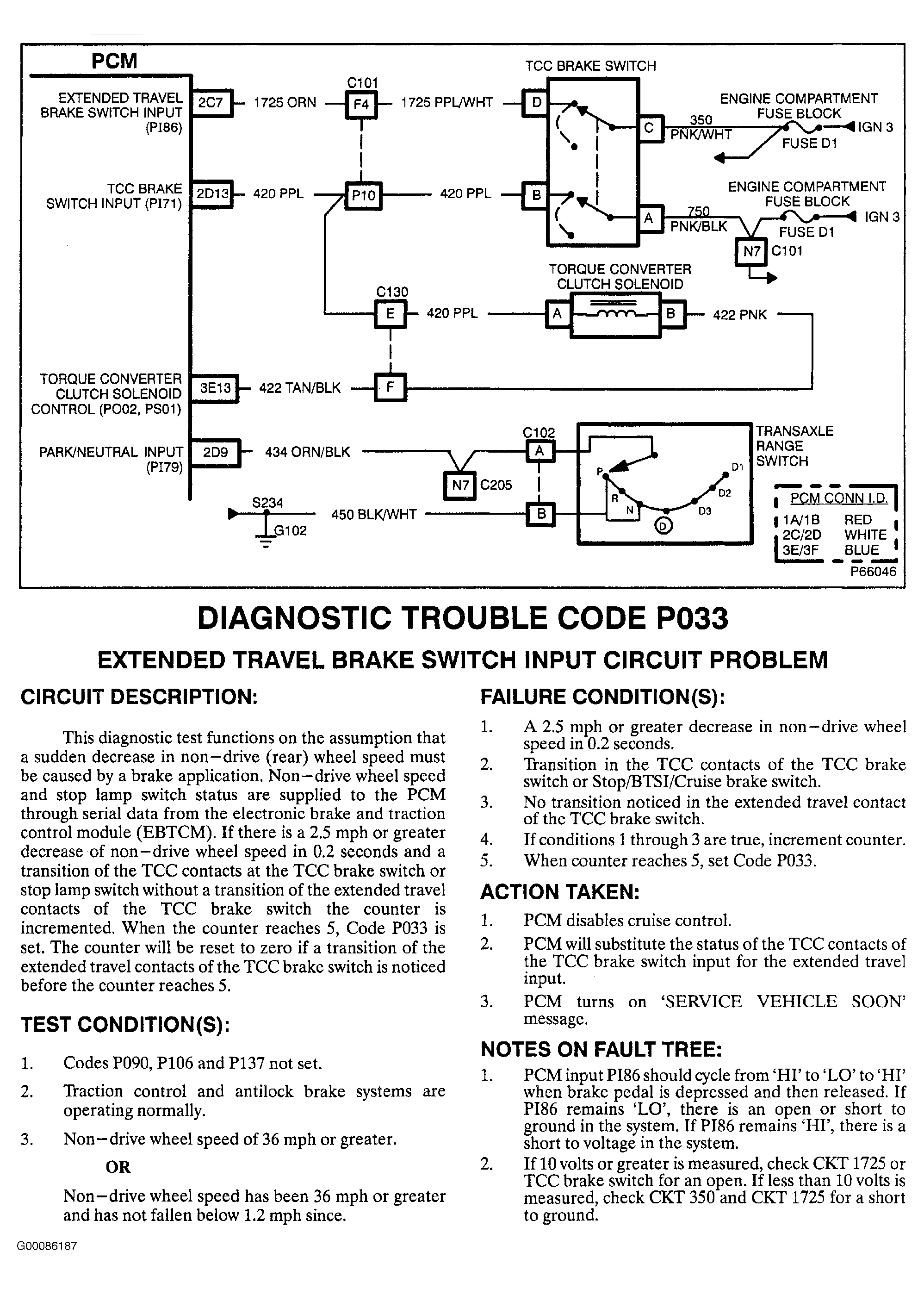

Fig 1: PCM Code P033 Schematic (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

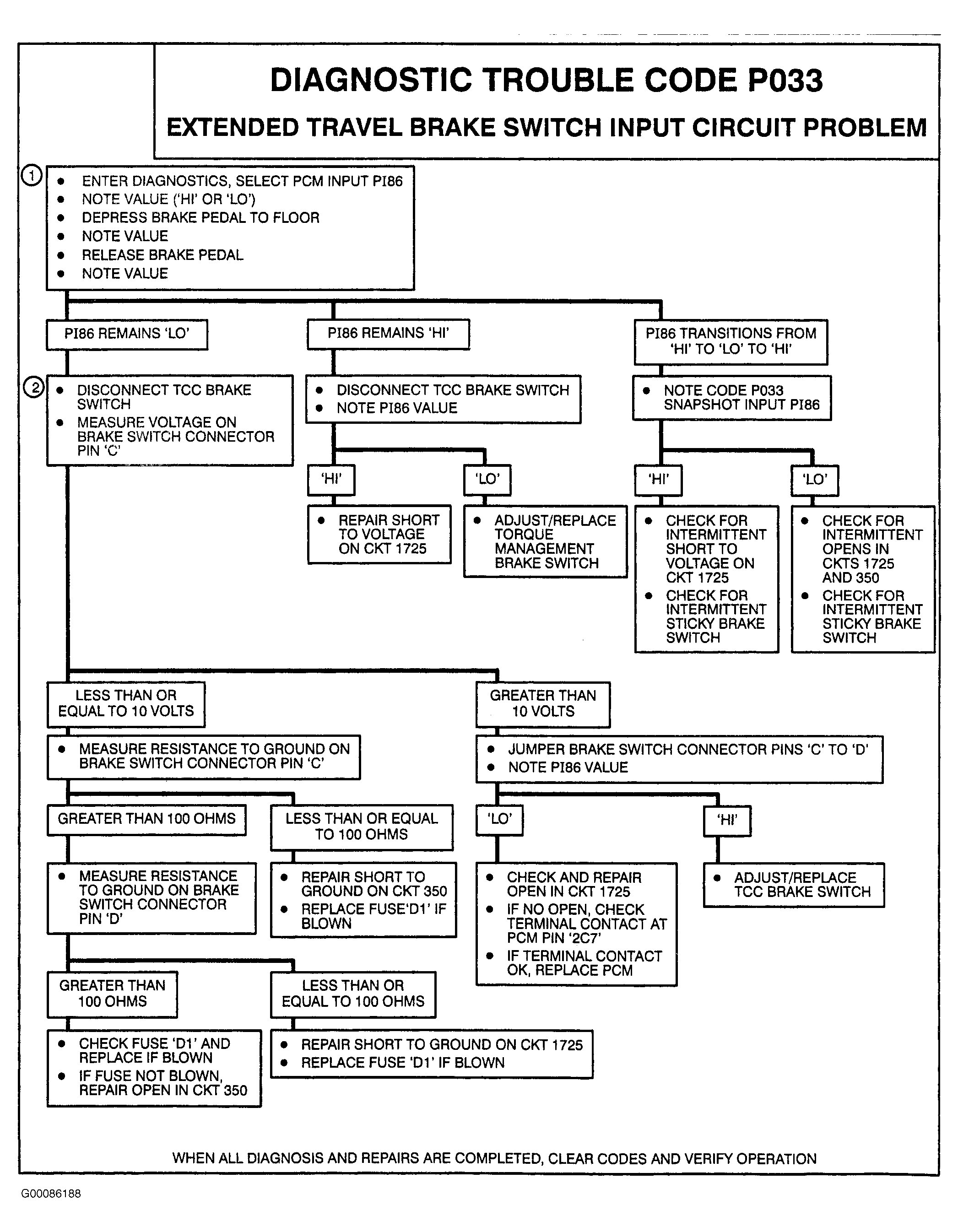

Fig 2: PCM Code P033 Flow Chart (2 OF 2)

Courtesy of GENERAL MOTORS CORP.
